MR TAPCON 250 - Display, operating elements and front interface

4 Product description
Maschinenfabrik Reinhausen GmbH 202226 8595028/00 ENTAPCON
®
250
4.4.1 Display, operating elements and front interface

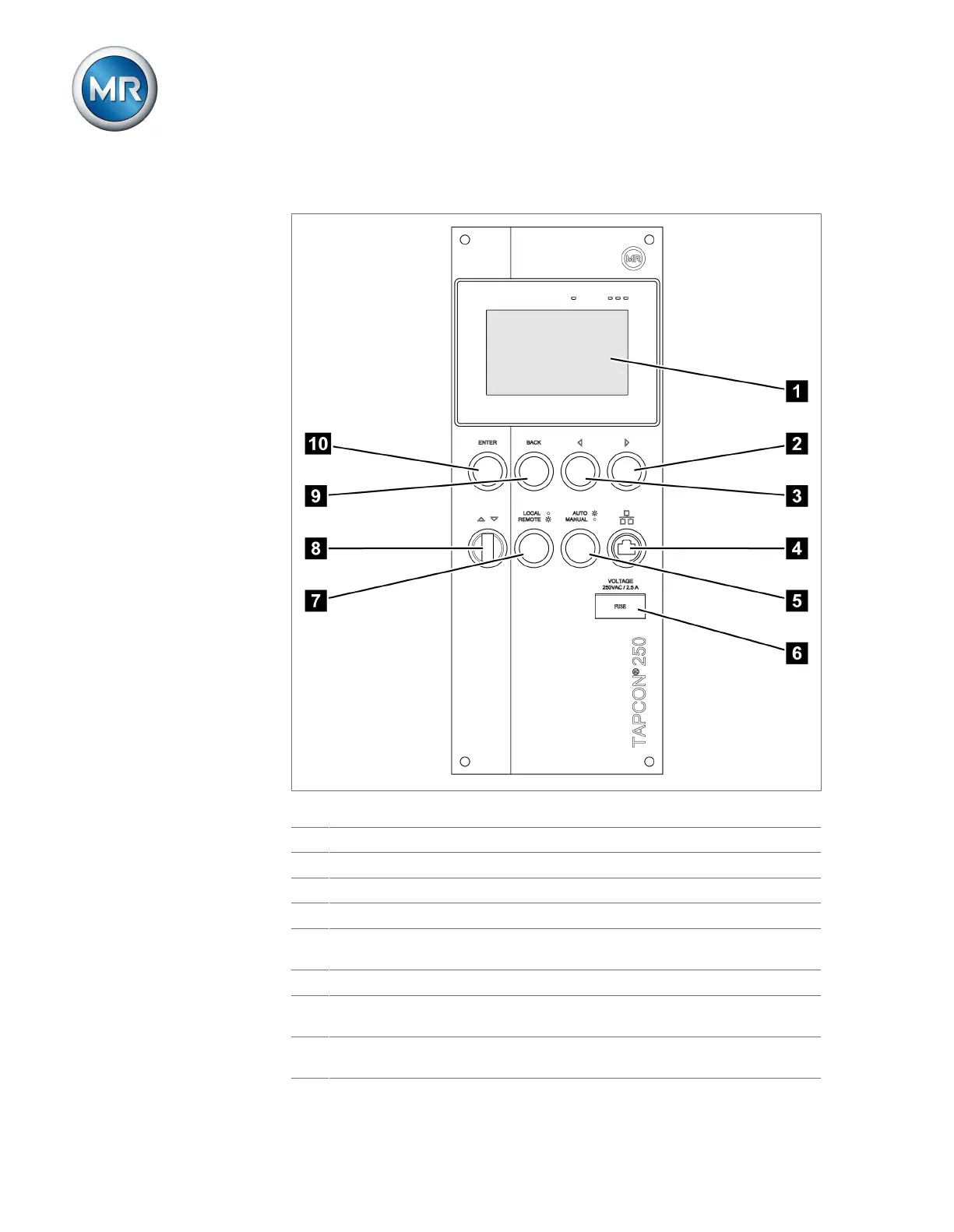

Figure5: TAPCON®250 display
1 Display -
2 RIGHT cursor Navigate to the right in the menu
3 LEFT cursor Navigate to the left in the menu
4 Front interface RJ45 Ethernet interface
5 AUTO/MANUAL key
1)
Switches between AUTO/MANUAL oper-
ating mode
6 Miniature circuit breaker Voltage 250VAC / 2.5A
7 LOCAL/REMOTE key
2)
Switches between LOCAL/REMOTE op-
erating mode
8 RAISE/LOWER key Sends a command to the motor-drive
unit to raise/lower the voltage.
3)
