MR TAPCON 250 - Wiring the MC 2-2;SW3-3 Assembly

6 Mounting
Maschinenfabrik Reinhausen GmbH 2022 638595028/00 EN TAPCON
®
250
1. Voltage measurement: Feed the wires into the terminals in accordance
with the connection diagram and fasten them using a screwdriver.
2. Current measurement: Feed the wires into the terminals in accordance
with the connection diagram and fasten them using a screwdriver.
6.4.7 Wiring the MC 2-2/SW3-3 assembly
1. Insert the supplied SFP module into the corresponding Ethernet interface
in accordance with the connection diagram and fold the clasp down.

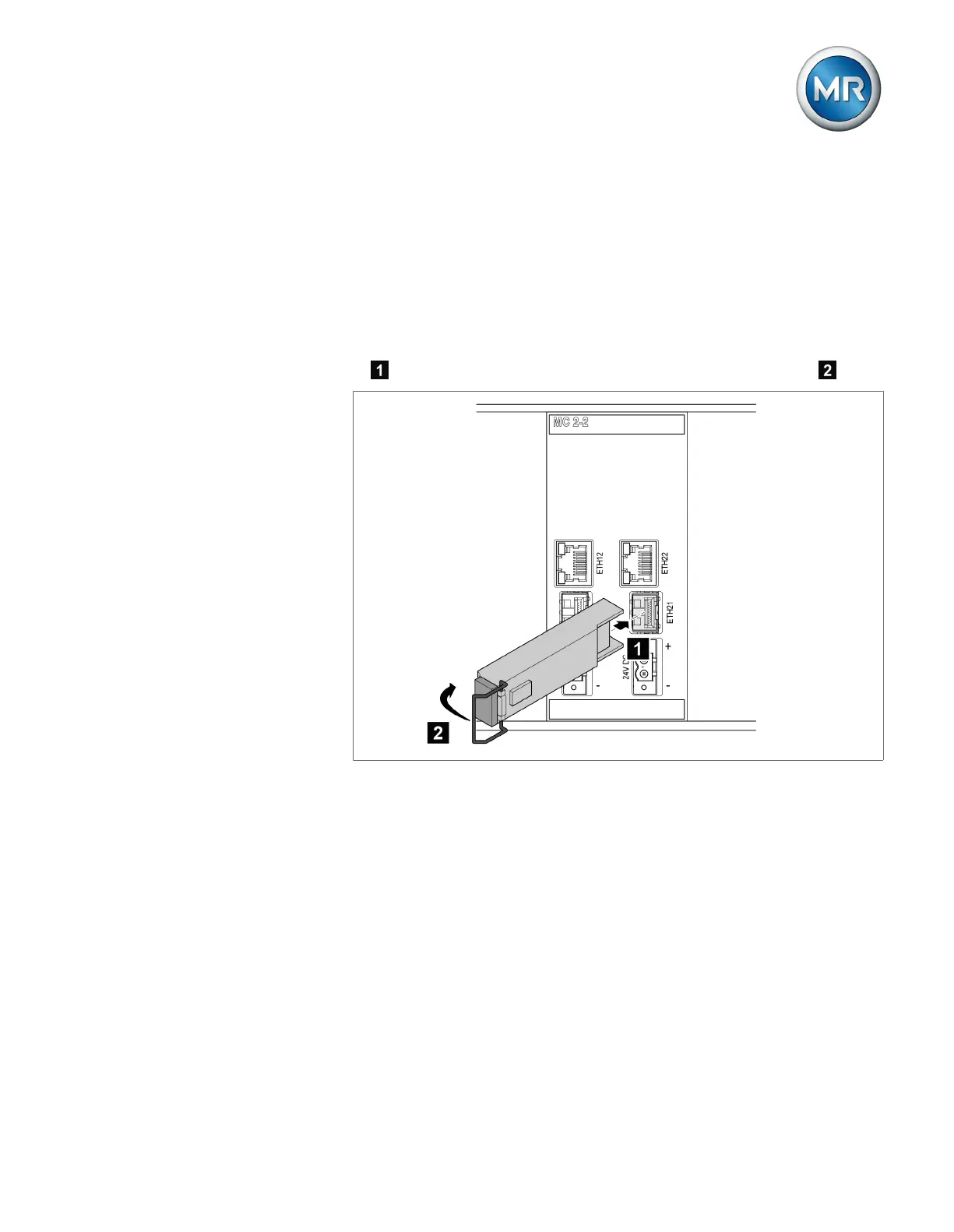

Figure45: Engaging the SFP module
