MR TAPCON 250 - Fastening the Cap Rail

6 Mounting
Maschinenfabrik Reinhausen GmbH 2022 518595028/00 EN TAPCON
®
250
2. Slide the device into the cutout from the front and secure using the recom-
mended screws.

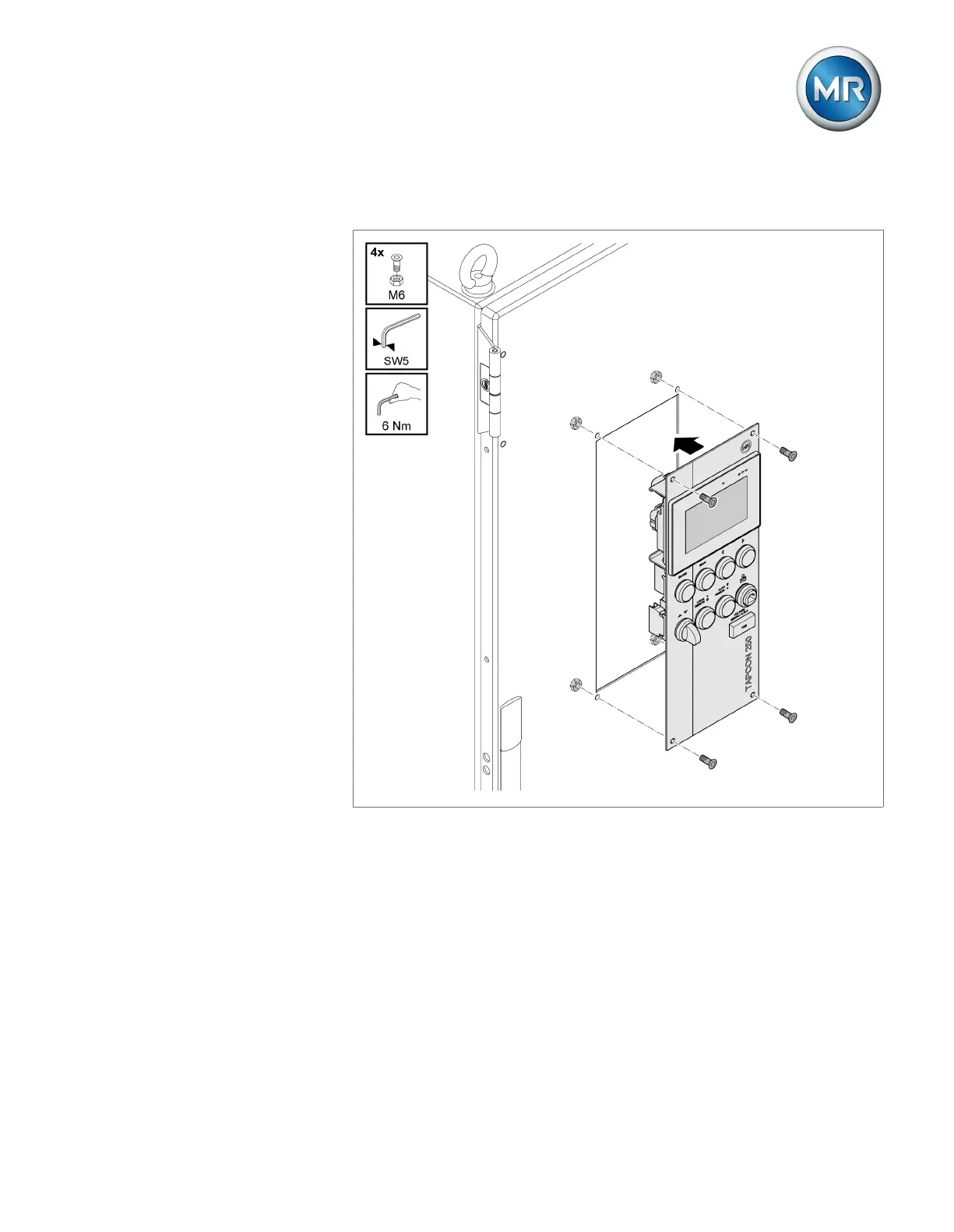

Figure36: Inserting and screwing in the device
ð The device is mounted and can be wired up.
6.3.2 Fastening the cap rail
The cap rail is required to mount a bus bar or a device's remote assemblies
in a control cabinet. Only use the following types of cap rails in accordance
with EN 60715:
▪ TH 35-7.5
▪ TH 35-15
The cap rail may not be painted or lacquered.
