MR TAPCON 250 - Page 50

6 Mounting
Maschinenfabrik Reinhausen GmbH 202250 8595028/00 ENTAPCON
®
250

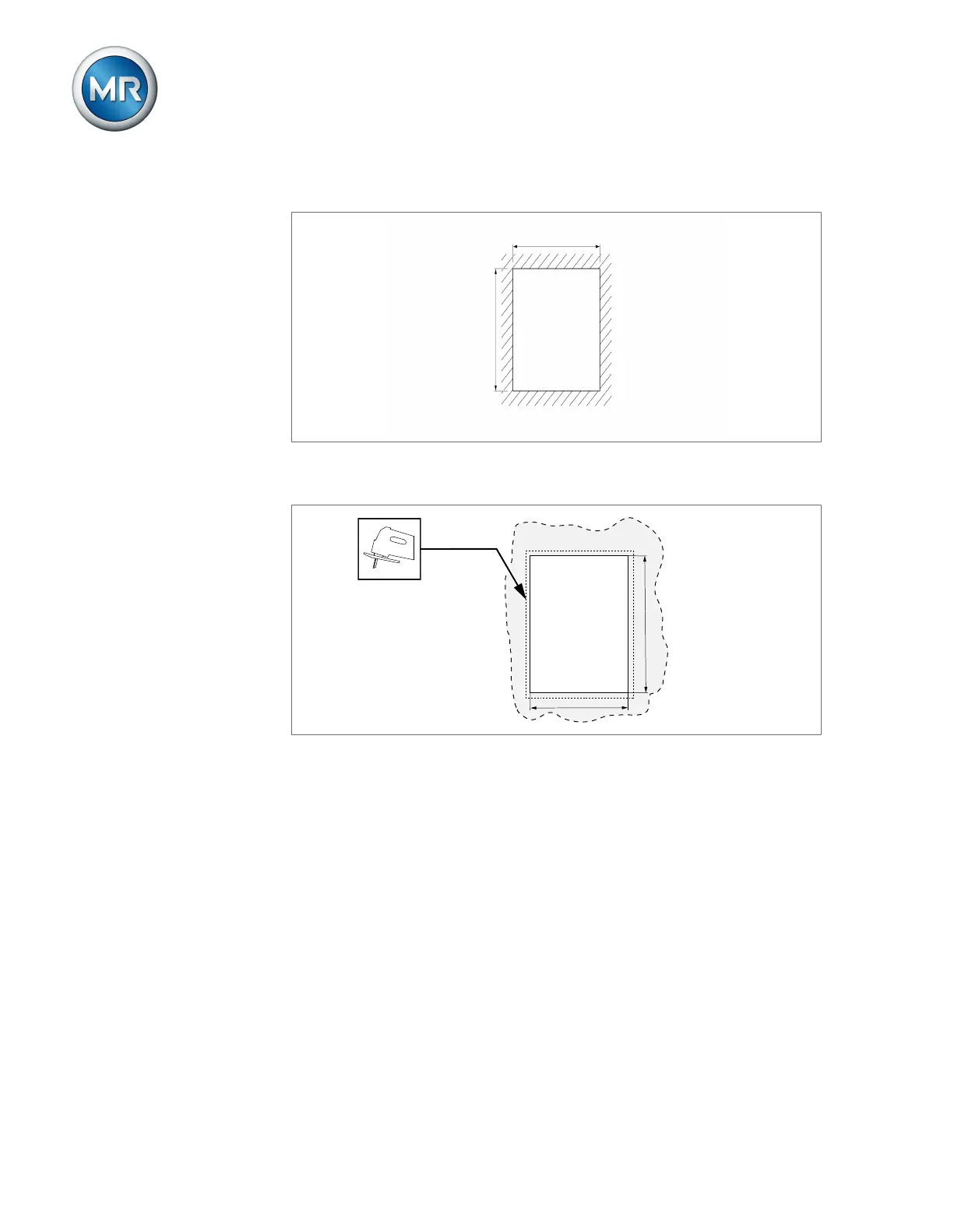

Dimensions for the control panel cutout
B: 149.2mm (5.87in)
A: 384.2mm (13.71in)
t = 2...5mm (0.08...0.2in)
Figure34: Dimensions for the cutout
1. Cut out the section for the control panel.
A
B
Figure35: Cutting out the section for the control panel
