MR TAPCON 250 - SCADA;communication interfaces

13 Technical data
Maschinenfabrik Reinhausen GmbH 2022198 8595028/00 ENTAPCON
®
250

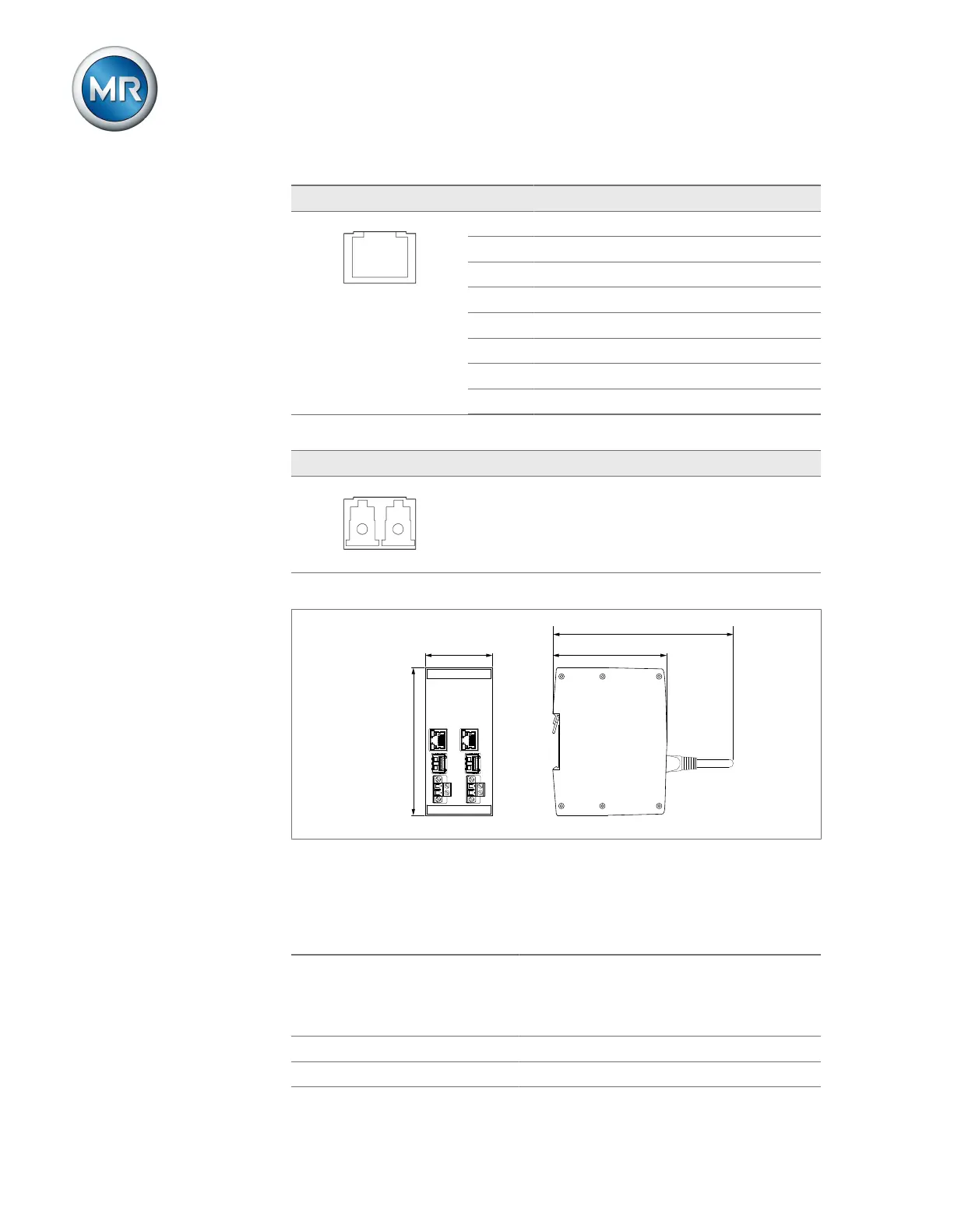

Interface Pin Description
1 TxD+
2 TxD-
3 RxD+
4 NC
5 NC
6 RxD-
7 NC
8 NC-
Table97: ETHxx (RJ45)
Interface Description
Fiber glass 50/125 and 62.5/125 multimode
Table98: ETHxx (duplex LC SFP)
MC 2-2
+
-
24V DC
+
-
24V DC
ETH12 ETH22
ETH11 ETH21
93 mm (3.66 in)
ca. 150 mm (5.9 in)
119 mm (4.69 in)
54 mm (2.12 in)
Figure89: MC2-2 dimensions
13.2.14 SCADA/communication interfaces
Media converter: SCADA ETH RJ45 – duplex LC
Conversion of SCADA Ethernet to
fiber-optic cable
Duplex LC SFP module for connecting the
SCADA system
Duplex LC connector, 1310nm, multi-mode
fiber
Transmission rate 10/100Mbps
Ethernet RJ45 -
