W415-2034 / A / 10.18.19
EN
48

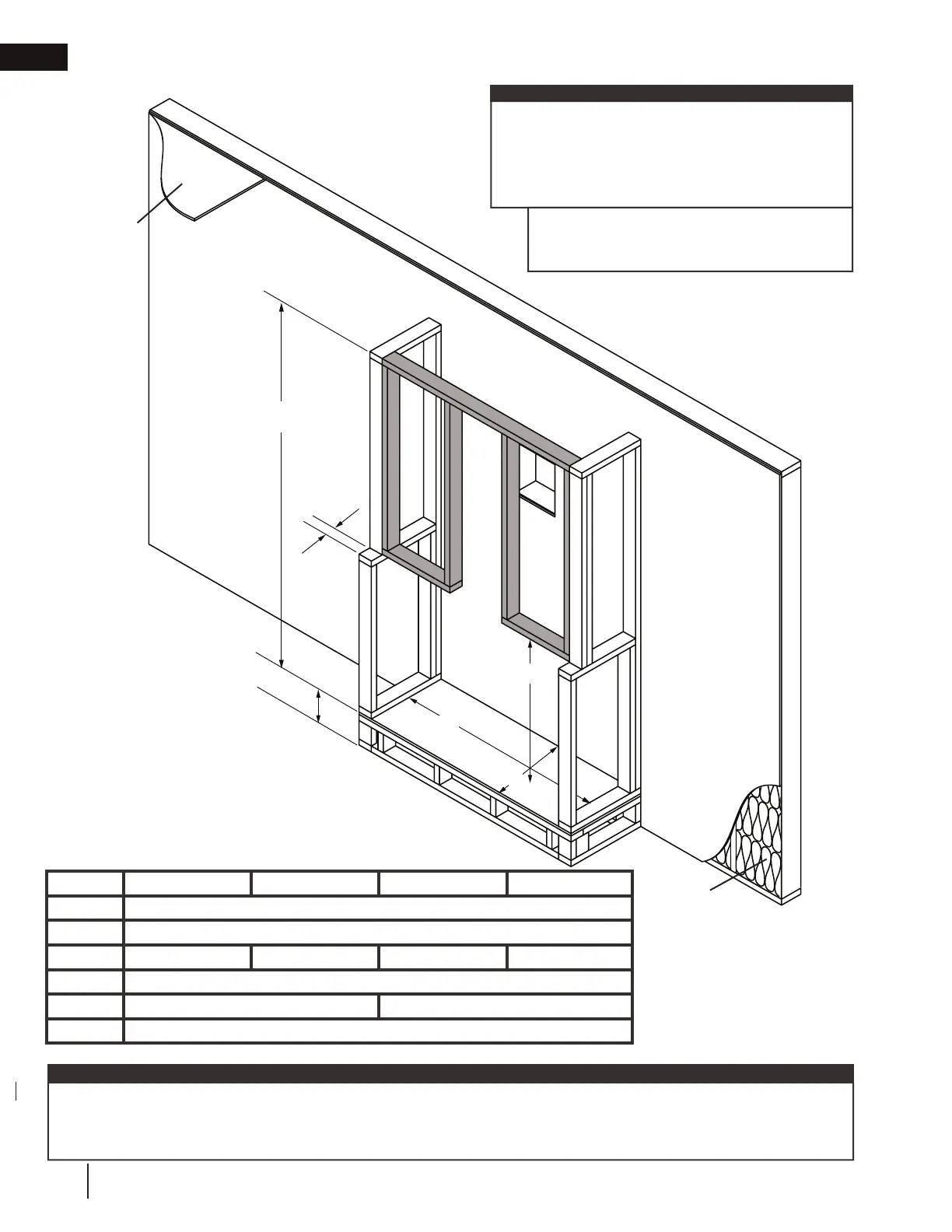

fi nish framing - after appliance installation
Ceiling
single-sided recessed
Shaded components (fi nish framing) must be
non-combustible materials.
Finish framing must be built after the appliance has
been placed in its fi nal position and venting
connected.
note:
Ref LV38-1 LV50-2 LV62 LV74
K
39 15/16” (101.4cm)
E
20 1/8” (51.1cm)
F
53 13/16” (136.7cm) 65 13/16” (167.2cm) 77 13/16” (197.6cm) 89 13/16” (228.1cm)
J
Optional - Appliance does not need to be elevated above fl oor
L
73” (185.4cm) 91” (231.1cm)
M*
3” (76mm)
Insulation
Drywall
*Can only be increased to 4” max by building a protrusion.
K
E
F
J
L
M*
minimum framing
This confi guration also requires recess
area to use non-combustible facing due
to close proximity to vent.
note:
The LV series requires a minimum enclosure/ceiling height, as illustrated (dimension L), measured from the bottom of
the appliance. For temperature requirements, this area must be left unobstructed. Some venting confi gurations that
require more vertical rise will require a larger enclosure to provide minimum vertical clearance between vent pipes and
combustibles.
