DS2000 Common Equipment

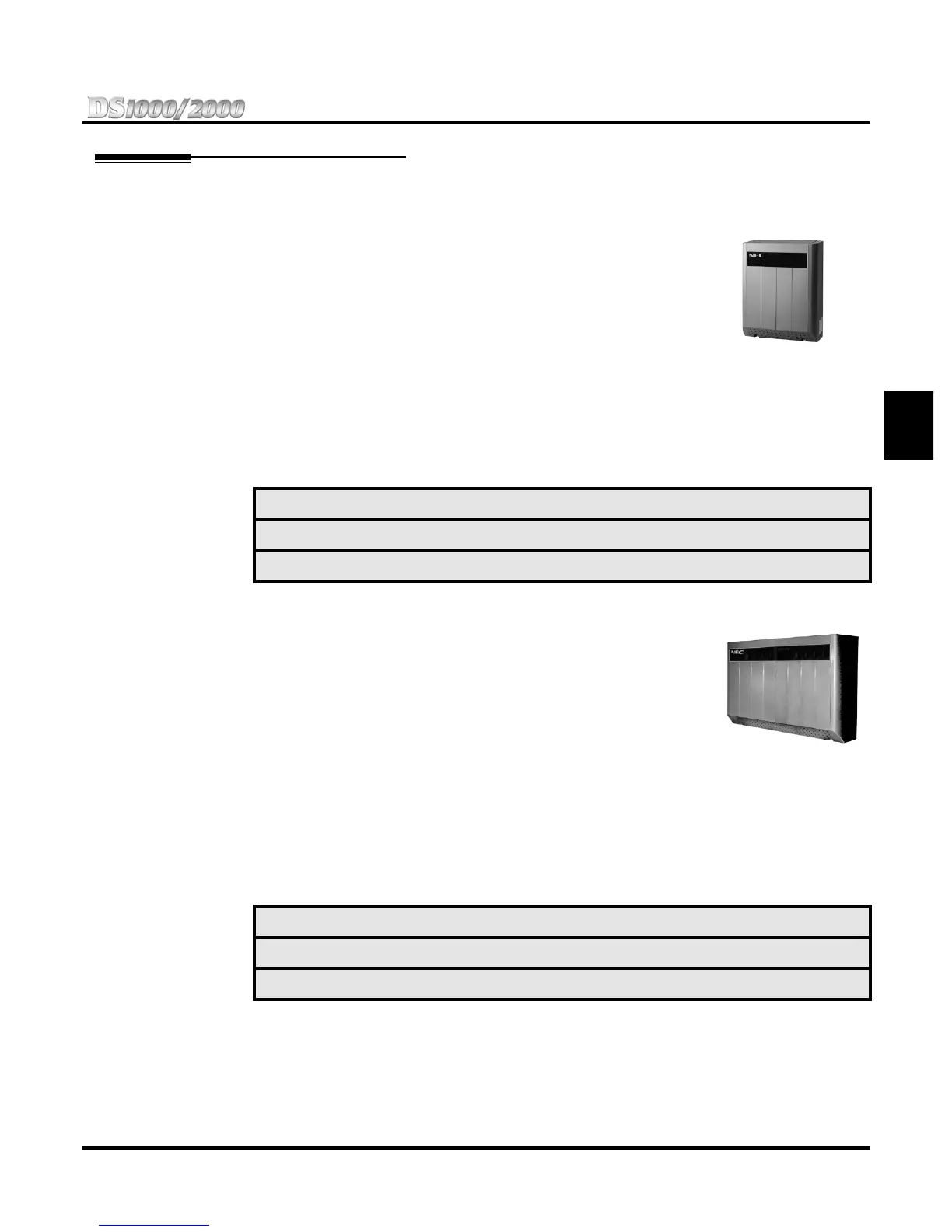

4-Slot Cabinet (P/N 80000)
The 4-Slot Cabinet houses the CPU, 4 universal PCB slots and the sys-
tem’s power supply. It provides 64 ports and can connect up to 56
trunks, 32 digital extensions, and 24 analog extensions. It is wall-mount-
able, has a flip off cover and removable side panel for easy access. The
cabinet has a handy translucent panel in the cover that allows you to get
essential system status and troubleshooting information at a glance,
without removing the cover.
Make a note of the following…
● You must install a 16DSTU PCB into the first universal slot of the 4-Slot Cabinet.
Be sure to review
DS2000 System Configuration on page 22
for more on setting up the 4-Slot cabinet.
8-Slot Cabinet (P/N 80001)
The 8-Slot Cabinet contains the CPU slot, 8 universal PCB slots and up to
3 system power supplies (depending on Load Factor requirements). It pro-
vides 112 ports and can connect up to 64 trunks, 96 digital extensions, and
56 analog extensions. Just like the 4-slot model, the 8-Slot Cabinet is wall-
mountable, has a flip off cover and removable side panel for easy access.
The 8-Slot Cabinet also has a translucent panel in the cover for getting
essential system status and troubleshooting at a glance.
Make a note of the following…
● You must install a 16DSTU PCB into the first universal slot of the 8-Slot Cabinet.
● Install a power supply for every 2 16DSTU PCBs.
Be sure to review
DS2000 System Configuration on page 22
for more on setting up the 8-Slot Cabinet.
✍ 4-Slot Cabinet P/N 80000 at a glance —
Universal Slots. . . . . . . . . . . . . . . . . . . . . . .4 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Trunks (maximum) . . . . . . . . . . . . . . . . . .56 Digital Extensions (maximum) . . . . . . . . 32
Analog Extensions (maximum) . . . . . . . .24
✍ 8-Slot Cabinet P/N 80001 at a glance —
Universal Slots. . . . . . . . . . . . . . . . . . . . . . .8 Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Trunks (maximum) . . . . . . . . . . . . . . . . . .64 Digital Extensions (maximum) . . . . . . . . 96
Analog Extensions (maximum) . . . . . . . .56
