Section 2: Components
20 ◆ Section 2: Components DS1000/2000 Product Description

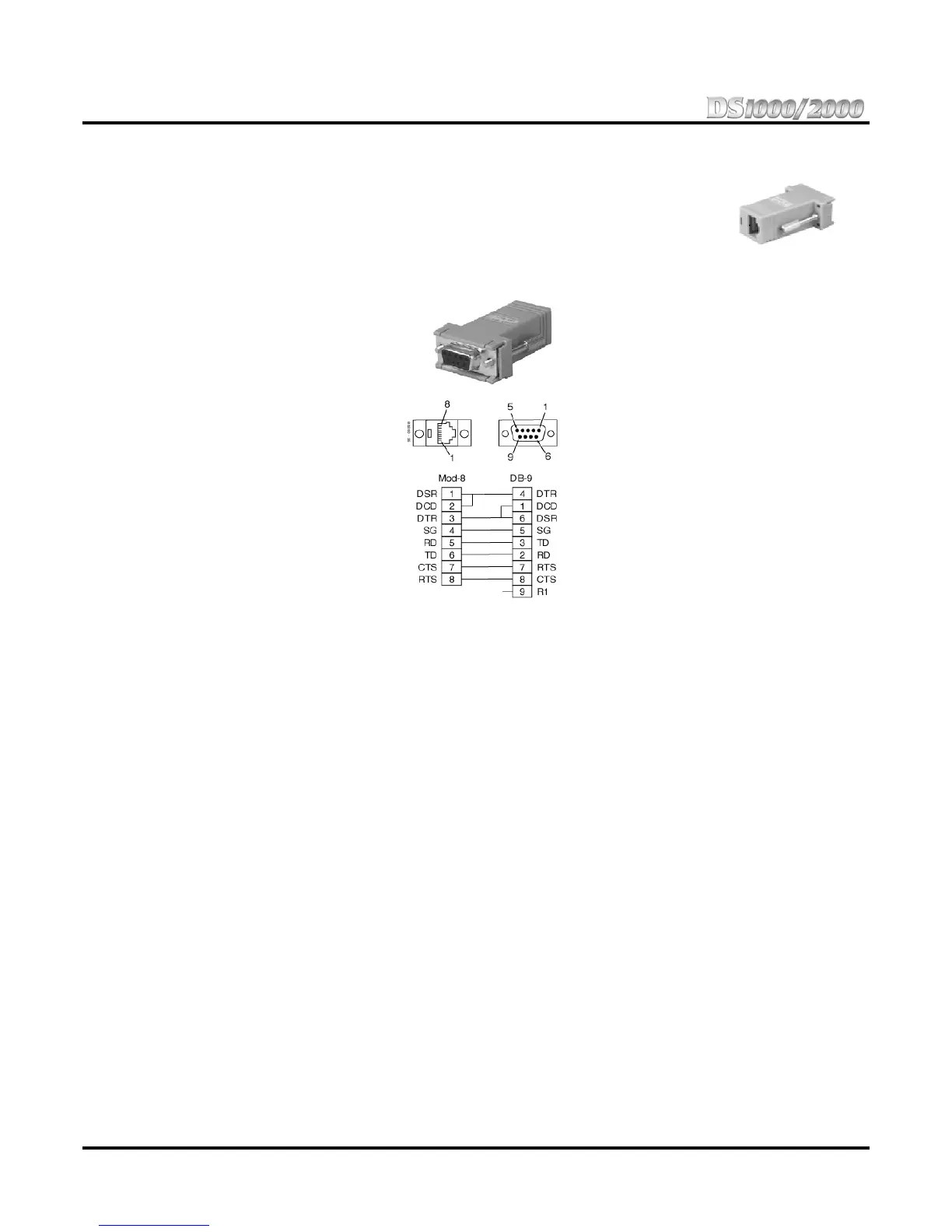

DB9 Female to Mod-8 Adaptor (P/N 85980)
In DS2000, use DB9 Female to Mod-8 Adaptor P/N 85980 along with 8-
Pin DIN to Mod-8 Cable P/N 80893 to connect a PC or laptop to the
DS2000 RS-232-C serial port.
In DS1000, use DB9 Female to Mod-8 Adaptor P/N 85980 along with
RJ61X 8-Conductor Cable P/N 80891 (or a standard Mod-8 Patch Cord)
to connect a PC or laptop to the DS1000 RS-232-C serial port.
