Section 2: Components
DS1000/2000 Product Description Section 2: Components ◆ 19
2
●
A PC or laptop to the system’s RS-232-C serial port. Use the PC or laptop to collect call history,
view Station Message Detail Recording (SMDR) data, use the Update Utility to upgrade system
software, or use the PC Program. These applications also require DB9 Female to Mod-8 Adap-
tor P/N 85980. Note that you can also use a standard Mod-8 Patch Cord in lieu of 8-Conductor
Cable P/N 80891.

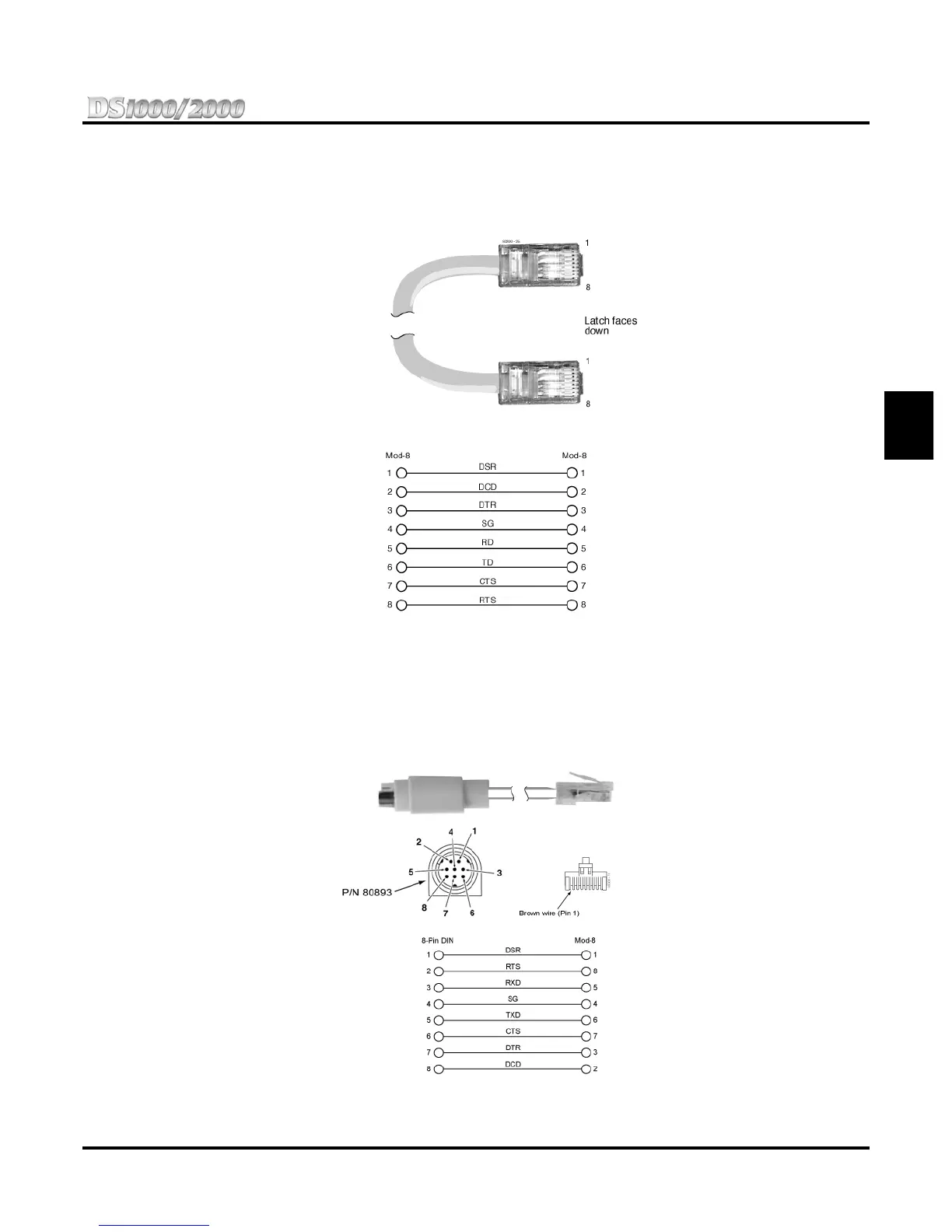

DS2000 8-Pin DIN to Mod-8 Cable (P/N 80893)
The 8-Pin DIN to Mod-8 Cable is intended for connecting a modem, PC, or SMDR collection
device to the DS2000 RS-232-C serial port.
● Use cable P/N 80893 along with the DB9 Female to Mod-8 Adaptor (P/N 85980) below when
connecting to a PC or laptop.
● Use cable P/N 80893 along with the DB25 Male to Mod-8 Adaptor (P/N 85981) below when
connecting to a modem.
