Section 2: Components
DS1000/2000 Product Description Section 2: Components â—† 21
2

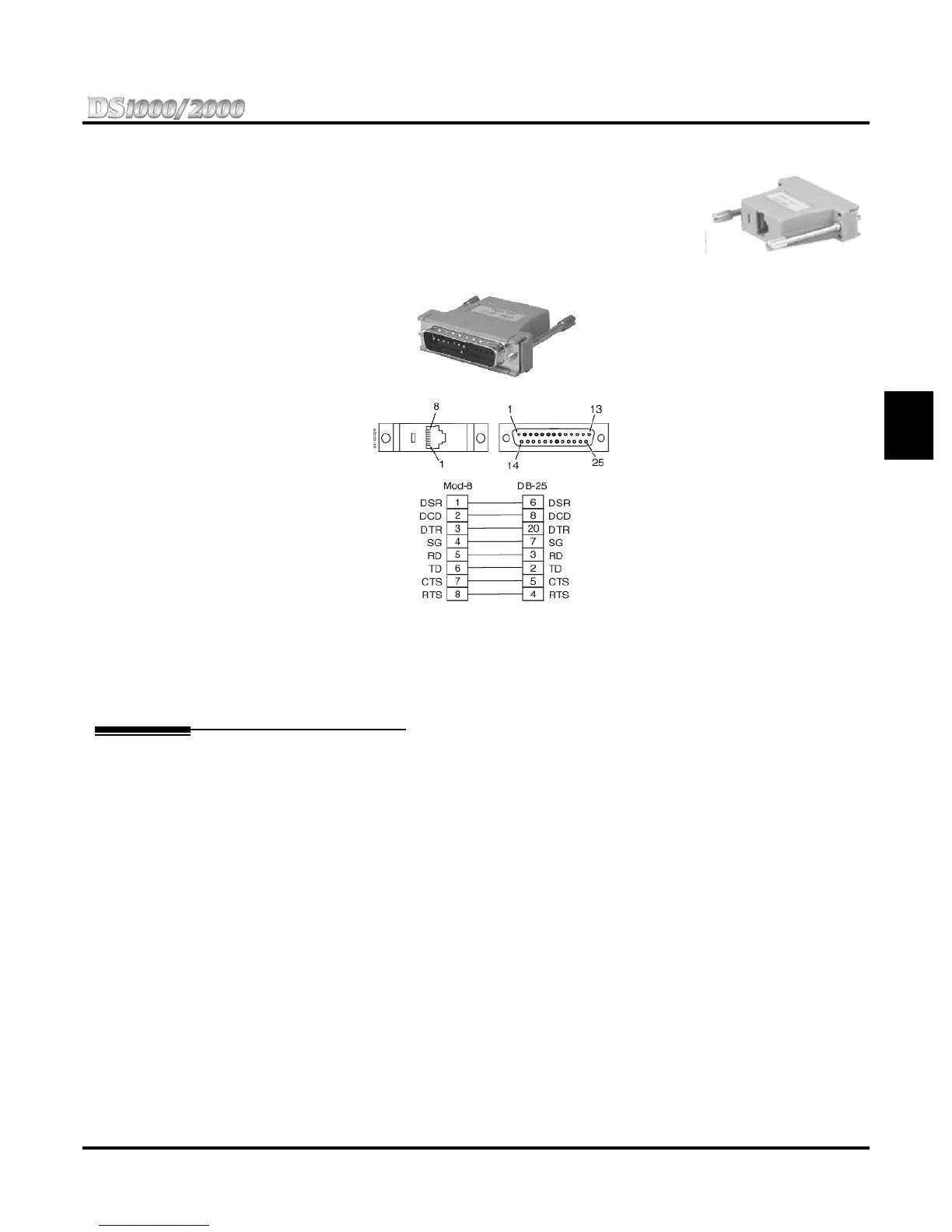

DB25 Male to Mod-8 Adaptor (P/N 85981)
In DS2000, use DB25 Male to Mod-8 Adaptor P/N 85981 along with 8-
Pin DIN to Mod-8 Cable P/N 80893 to connect a modem to the DS2000
CPU RS-232-C serial port.
In DS1000, use DB25 Male to Mod-8 Adaptor P/N 85981 along with
RJ61X 8-Conductor Cable P/N 80891 (or a standard Mod-8 Patch Cord) to
connect a modem to the DS1000 RS-232-C serial port.
DS2000 Installation Cable (P/N 80892)
Installation Cable P/N 80892 makes it easy to connect the DS2000 system PCBs to standard
66M1-50 connecting blocks. This 25-pair cable has 6 8-pin modular connectors on one end and is
unterminated on the other.
Replacement Parts
Turn to
Parts List on page 131
for a complete list of all system components and replacement parts.
