1. System BIOS
Express5800/T1
10f-S,
R1
1
0f-1E,
T1
10f-E Maintenance
Guide
74
Chapter
2 Useful
Features
(1)
T
rusted Computing submenu
On
Security
, choose
Trusted Computing

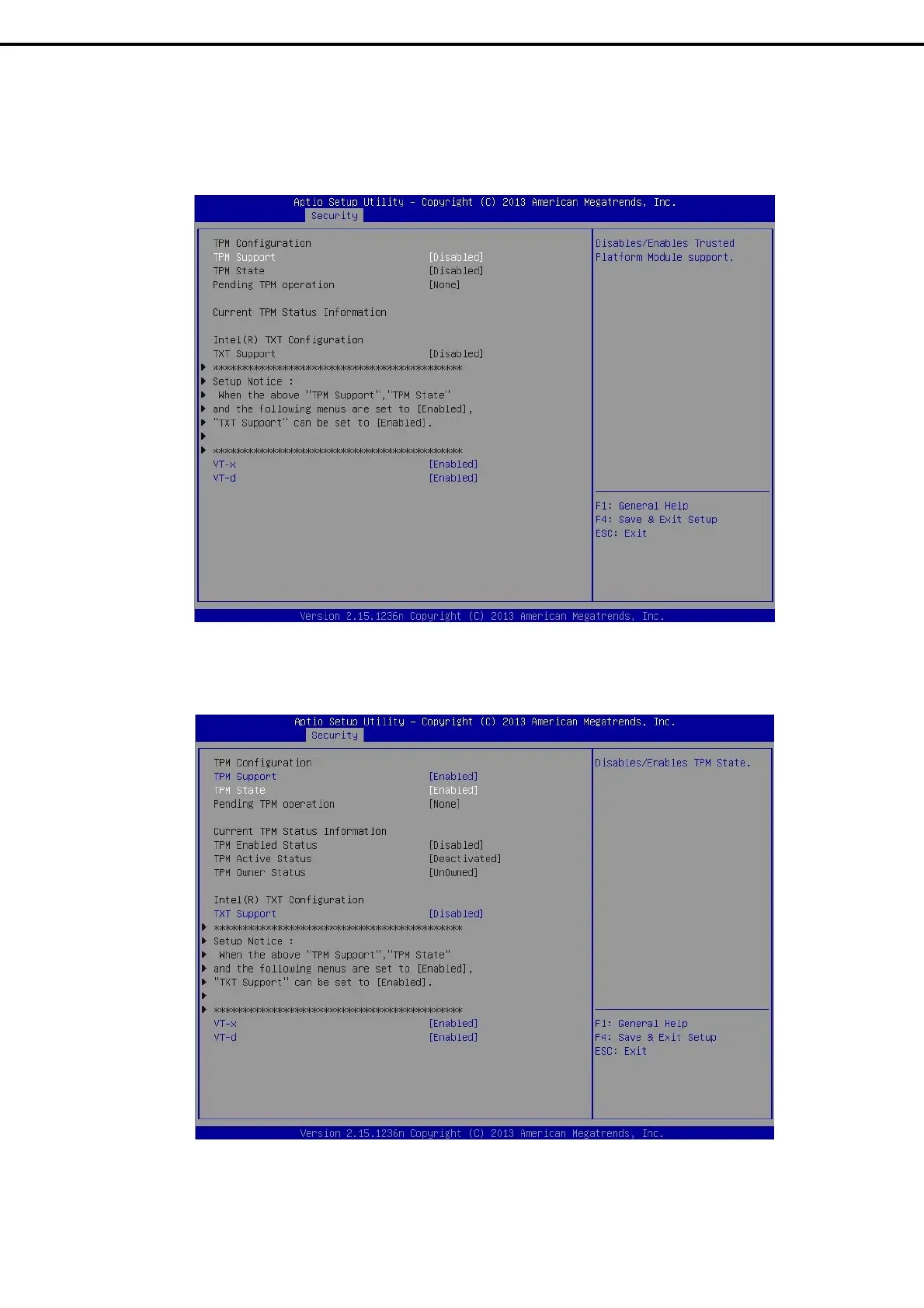

and then press <Enter> key to disp
lay the menu scree
n shown
below.
If you enable
TPM Support
, enable
TPM State
, the following menu screen appears.
73
75
