161

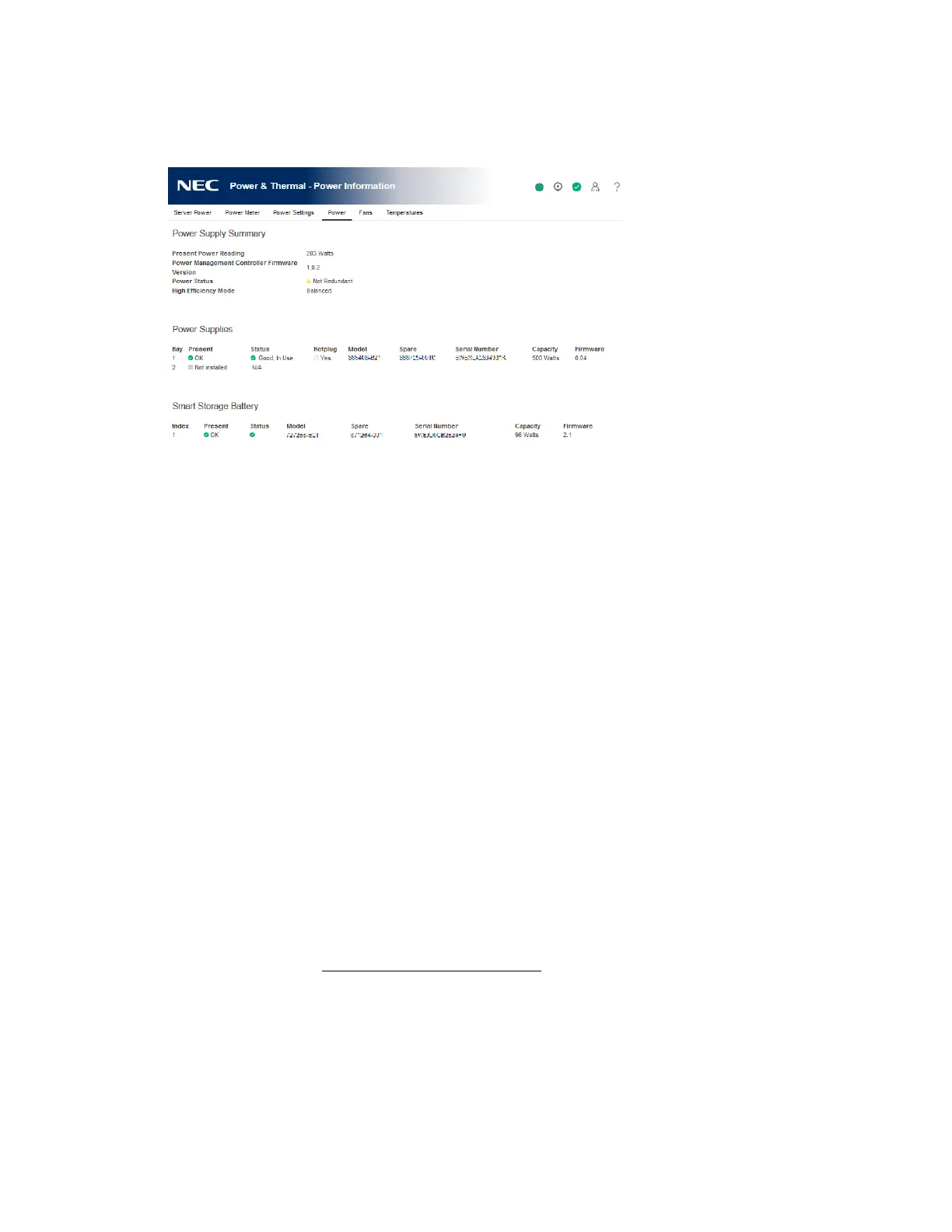

Viewing power information
Procedure
1. Click Power & Thermal in the navigation tree, and then click the Power tab.
The information displayed on the Power Information page varies depending on the server type.
The following sections are possible:
• Power Supply Summary
• Power Supplies
• Smart Storage Battery
If the server is powered off, the system health information on this page is current as of the last
power off. Health information is updated only when the server is powered on and POST is
complete.
Power Supply Summary details
Present Power Reading
When Common Slot Power Supplies are present, the most recent power reading from the
server is displayed. Other power supplies do not provide this data.
Although this value is typically equal to the sum of all active power supply outputs, there
might be some variance as a result of reading the individual power supplies. This value is a
guideline value and is not as accurate as the values presented on the Power Meter page. For
more information, see Viewing server power usage.
Power Management Controller Firmware Version
The firmware version of the power management controller. The server must be powered on for
the iLO firmware to determine this value. This feature is not available on all servers.
Power Status
The overall status of the power supplied to the server. This section displays the status of the
