Viewing network information
If the server is powered off, the health status information on this page is current as of the last
power off. Health information is updated only when the server is powered on and POST is
complete.
To view a full set of data on this page, ensure that AMS is installed and running. The server IP
address, add in network adapters, and the server NIC status are displayed only if AMS is installed
and running on the server.
The information on this page is updated when you log in to iLO. To refresh the data, log out of
iLO, and then log back in.
Procedure

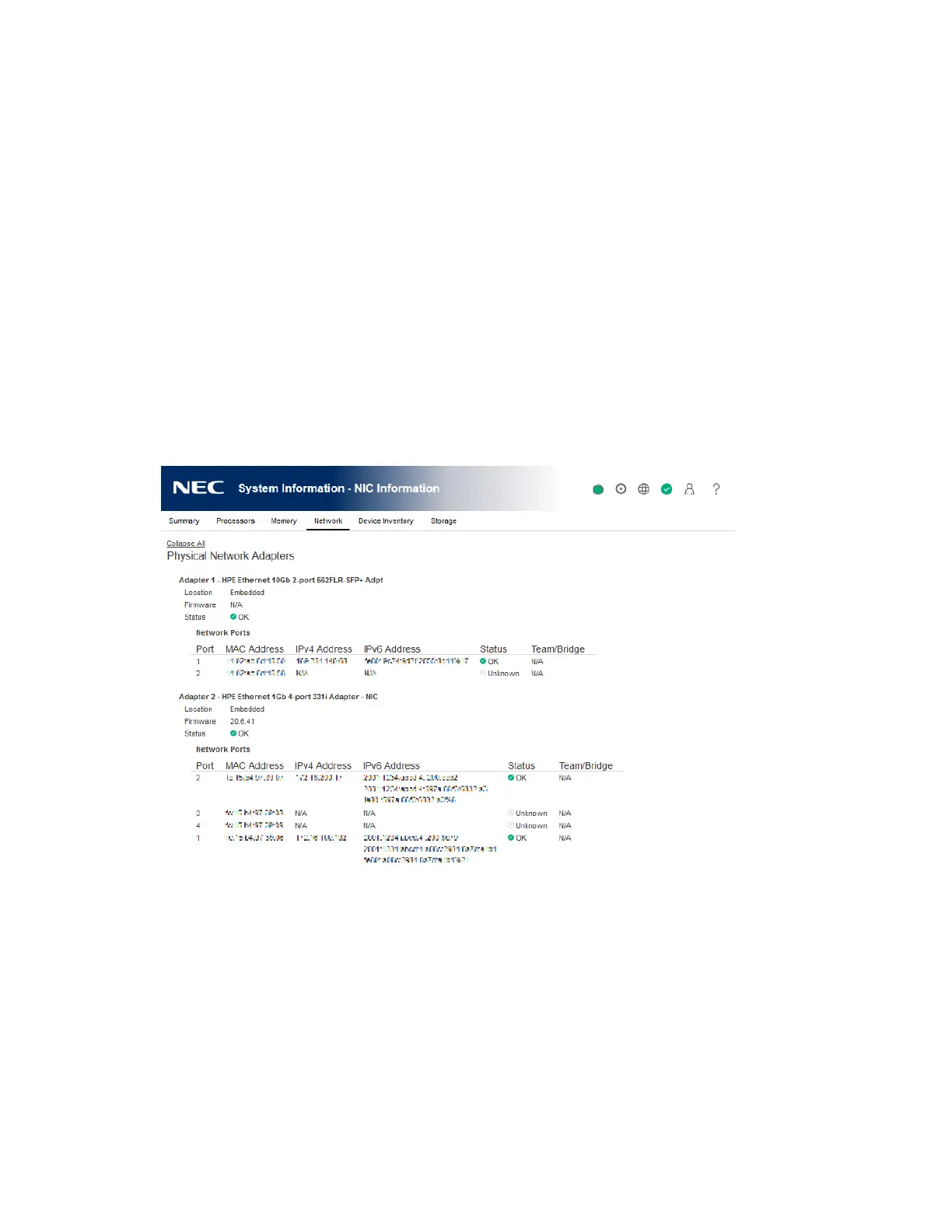

1. Click System Information in the navigation tree, and then click the Network tab.
2. Optional: To expand or collapse the information on this page, click Expand All or Collapse
All, respectively.
Physical Network Adapters
Integrated and add-in NICs and Fibre Channel adapters
This section displays the following information about the integrated and add-in NICs and Fibre
Channel adapters in the server:
• Adapter number—The adapter number, for example, Adapter 1 or Adapter 2.
• Location—The location of the adapter on the system board.
• Firmware—The version of the installed adapter firmware, if applicable. This value is
displayed for system NICs (embedded and stand-up) only.
• Status—The NIC status.
