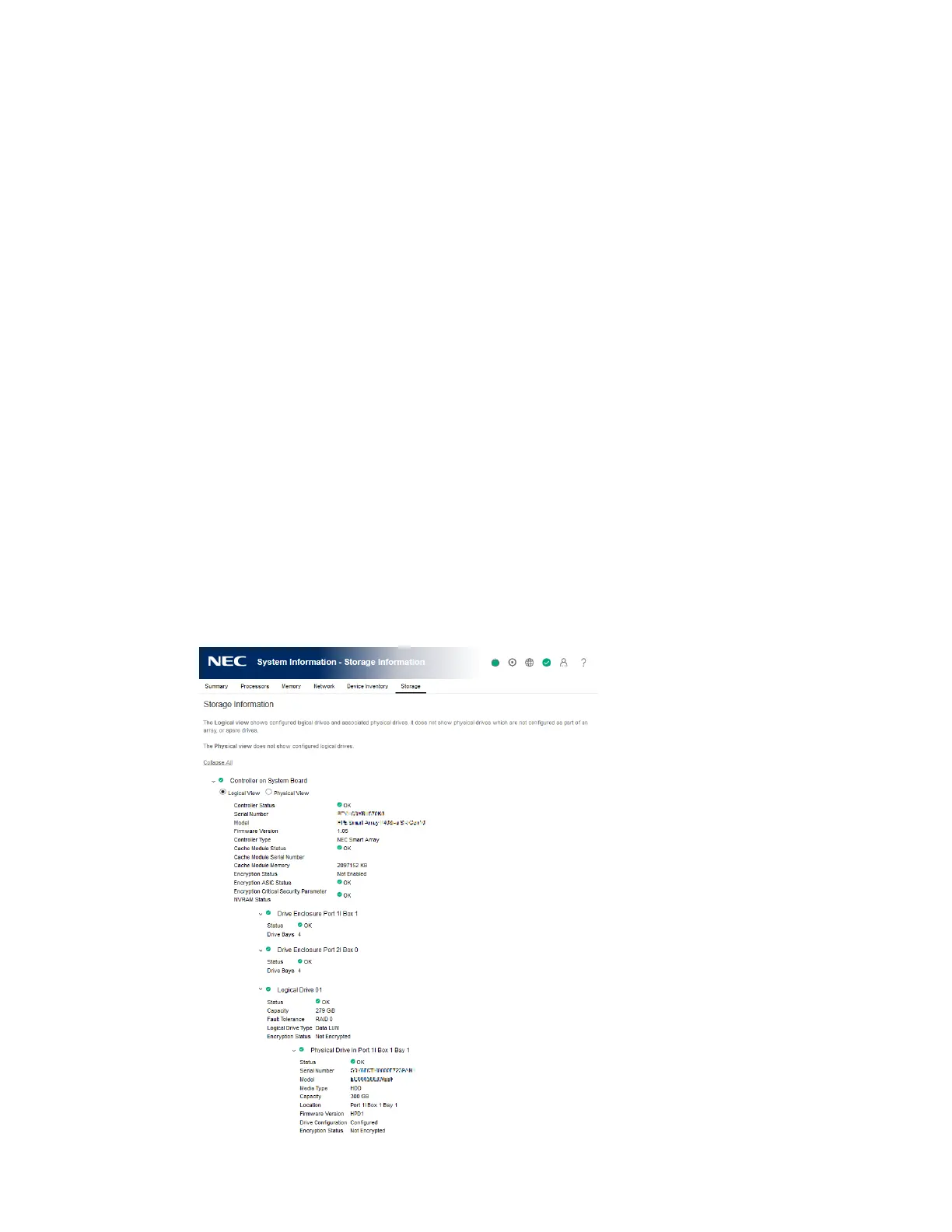

Viewing storage information
If the server is powered off, the system health information on this page is current as of the last
power off. Health information is updated only when the server is powered on and POST is
complete.
To view a full set of data on this page, ensure that AMS is installed and running. SAS/SATA
controller information is displayed only if AMS is installed and running on the server.
The information displayed on this page depends on your storage configuration. Some storage
configurations will not display information for every category.
Fibre Channel adapters are not listed on this page. To view information about Fibre Channel
adapters, click System Information in the navigation tree, and then click the Network tab.
Procedure
1. Click System Information in the navigation tree, and then click the Storage tab.
2. Optional: To expand or collapse the data, click Expand All or Collapse All, respectively.
3. Smart Array controllers only: For the controller you want to view, select one of the following
options:
• Logical View—View configured logical drives and associated physical drives. This view
does not show physical drives that are not configured as part of an array, or spare
drives.
• Physical View—View physical drives. This view does not show logical drives.
