After you finish
Go to
Step 3: Reinstall controller canister
on page 112.
Step 3: Reinstall controller canister

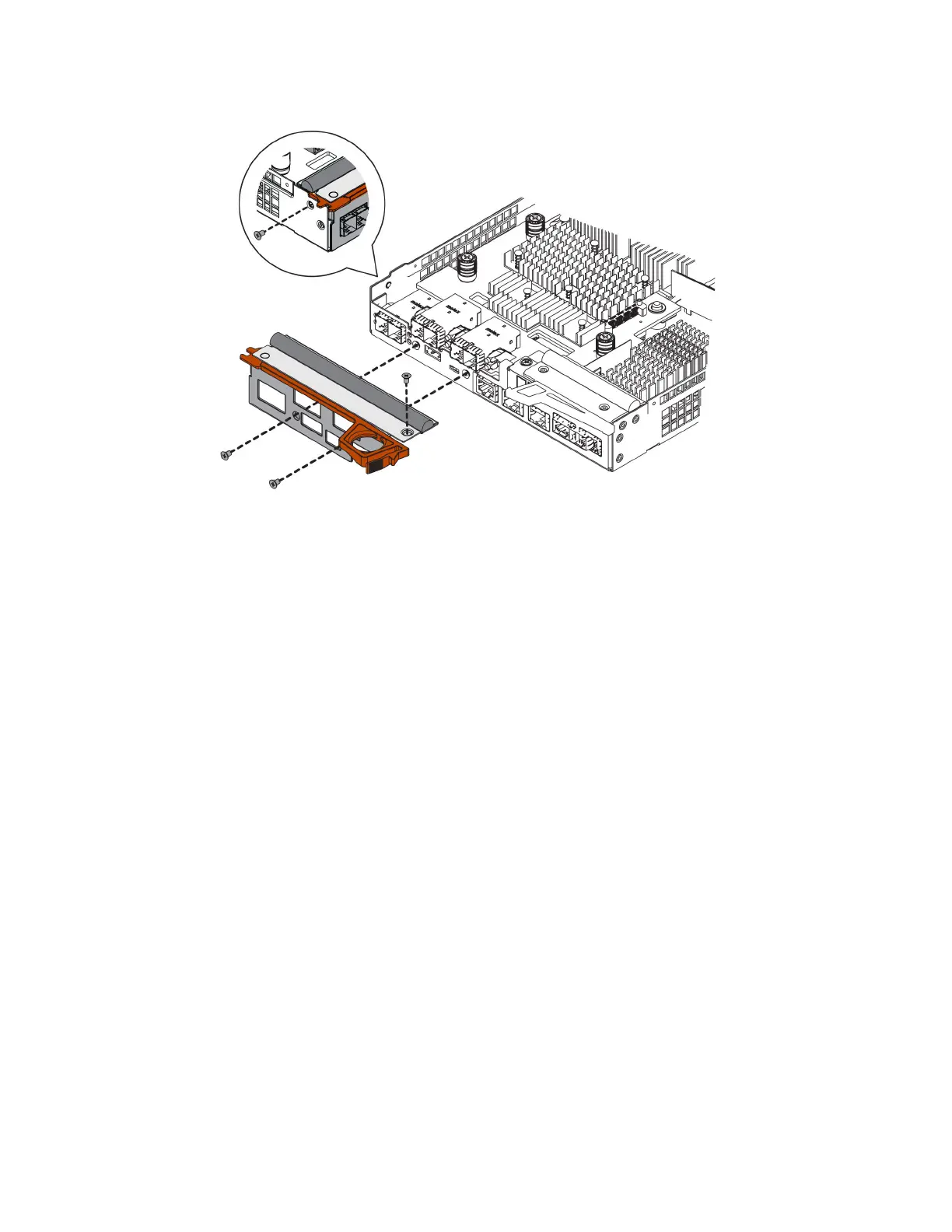

After installing the host interface card (HIC), you reinstall the controller canister into the controller
shelf.
Steps
1. Turn the controller canister over, so that the removable cover faces down.
2. With the cam handle in the open position, slide the controller canister all the way into the
controller shelf.
The following figure is an example of an E5724 controller shelf:
112 | Maintaining E5700 Hardware
