NETGEAR GS308T User Manual

Configure Quality of Service
189
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP

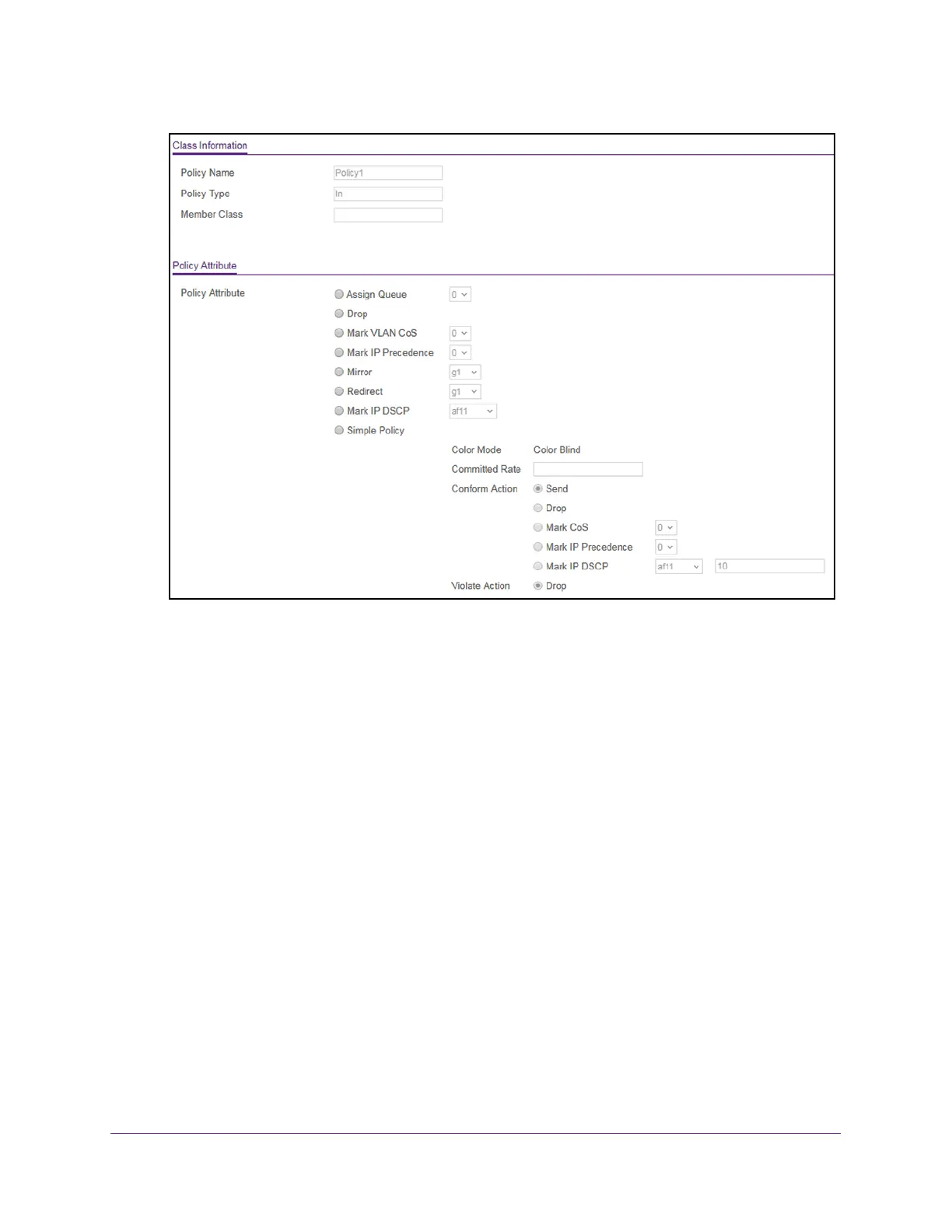

10. Configure the policy attributes by selecting one of the following radio buttons:
• Assign Queue. Select this radio button to specify that traf
fic must be assigned to a
queue, which you must select from the menu. The queue is expressed as a value in
the range from 0 to 7.
• Drop. Select this radio button to require each inbound packet to be dropped.
• Mark VLAN CoS. Select this radio button to specify the VLAN priority
, which you must
select from the menu. The VLAN priority is expressed as a value in the range from 0
to 7.
• Mark IP Precedence. Select this radio button to require packets to be marked with an
IP precedence value before being forwarded.
You must select an IP precedence
value from 0 to 7 from the menu.
• Mirror. Select this radio button to require packets to be mirrored to an interface or
LAG, one of which you must select from the menu.
• Redirect. Select this radio button to require packets to be redirected to an interface or
LAG, one of which you must select from the menu.
• Mark IP DSCP. Select this radio button to require packet to be marked with an IP
DSCP keyword code, which you must select from the menu.
The DSCP value is
defined as the high-order 6 bits of the Service Type octet in the IP header.
• Simple Policy. Select this radio button to define the traf
fic policing style for the class.
By default, this simple policy is color blind, and color classes do not apply. A simple
policy supports a single data rate and results in one of two outcomes: conform or
violate. Packets that violate the policy are always dropped. That is, you cannot

NETGEAR GS308T Specifications

General

Switch type	Managed
Switch layer	L2
Quality of Service (QoS) support	Yes
Master (outer) case width	214 mm
Master (outer) case height	312 mm
Master (outer) case length	474 mm
Master (outer) case weight	6110 g
Harmonized System (HS) code	85176990
Quantity per master (outer) case	6 pc(s)
Package type	Box
Package depth	270 mm
Package width	226 mm
Package height	64 mm
Package weight	750 g
Cables included	AC
Power connector	DC-in jack
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Stackable	No
Product color	Black
LED indicators	Activity, Link, Power
Country of origin	China
10G support	-
Multicast protocols	IGMP
Input current	1 A
DC input voltage	12 V
MAC address table	- entries
