Configure Switching
124
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP

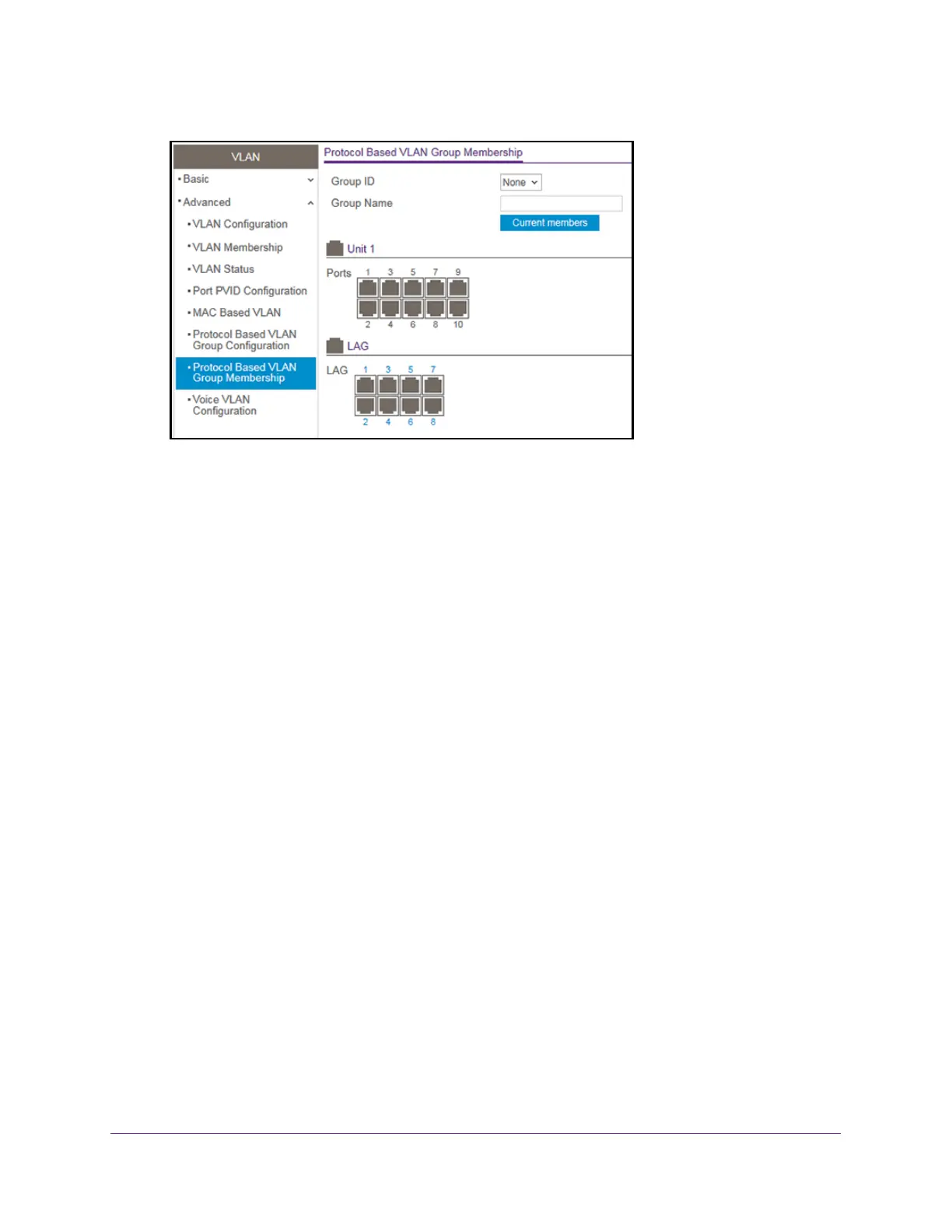

The previous figure shows the Protocol Based VLAN Group Membership page for model
GS310TP.
6. From the Group ID menu, select the protocol-based VLAN group ID.
The Group Name field shows the name that is associated with the group.
7. In the Ports table and LAG table,
click each port and LAG that you want to include in the
protocol-based VLAN group.
A protocol-based VLAN group can include both port and LAGs. A selected port or LAG is
displayed by a check mark.
8. Click the Apply button
Your settings are saved.
9. T
o display the current numbers in the selected protocol-based VLAN group, click the
Current Members button.
Configure a Voice VLAN
You can configure the settings for a voice VLAN configuration.
To configure a voice VLAN:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is of
f-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser
, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 11.
