NETGEAR GS310TP User Manual

Manage Device Security
257
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP
6. Select the check box that is associated with the rule.
7. Click the Delete button.
The rule is removed.
Configure MAC Bindings
When an ACL is bound to an interface, all the rules that are defined are applied to the
selected interface. You can assign MAC ACL lists to ACL priorities and interfaces.
 To configure MAC bindings:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is of
f-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser
, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 11.
Your web browser might display a security message, which you can ignore. For more
information, see Access the Local Browser Interface on page 19.
The login window opens.
4. Enter the switch’
s password in the Password field.
The default password is password.
The System Information page displays.
5. Select Security >
ACL > Basic > MAC Binding Configuration.

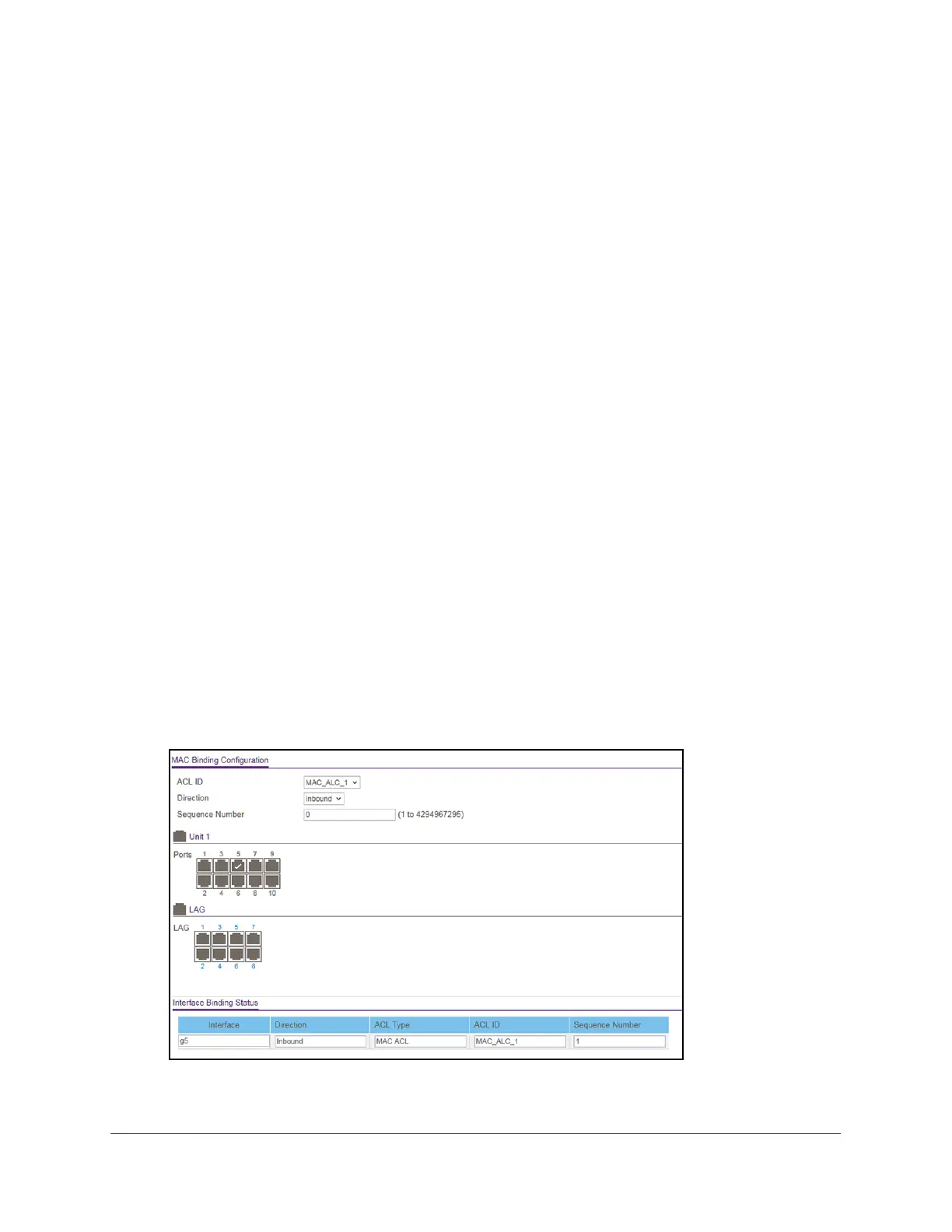

The previous figure shows the MAC Binding Configuration page for model GS310TP.

NETGEAR GS310TP Specifications

General

Power connector	DC-in jack
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Output current	1.25 A
Output voltage	54 V
Power consumption (max)	69.3 W
MAC address table	8000 entries
Jumbo frames support	Yes
Total Power over Ethernet (PoE) budget	55 W
Memory type	DDR-SDRAM
Flash memory	32 MB
Internal memory	128 MB
Processor frequency	500 MHz
Mean time between failures (MTBF)	1081119 h
Switch type	Managed
Switch layer	L2
DHCP features	DHCP client
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	HWTACACS+, IEEE 802.1x
Security algorithms	802.1x RADIUS, EAP, HTTPS, SSL/TLS
Access Control List (ACL) IPv4 entries	100
Stackable	-
Product color	Black
Rack mounting	No
Number of fans	0 fan(s)
Number of VLANs	64
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Virtual LAN features	Voice VLAN
Operating temperature (T-T)	0 - 40 °C
Number of multicast groups filtered	256
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	101 mm
Width	263 mm
Height	30 mm
Weight	610 g
