Configure Quality of Service
178
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP
position. Before traffic in a lower queue is sent, it must wait for traffic in higher queues to
be sent.
7. Click the Apply button.
Your settings are saved.
Map DSCP Values to Queues
You can map an internal traffic class to a DSCP value.
To map DSCP values to queues:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is of
f-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser
, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 11.
Your web browser might display a security message, which you can ignore. For more
information, see Access the Local Browser Interface on page 19.
The login window opens.
4. Enter the switch’
s password in the Password field.
The default password is password.
The System Information page displays.

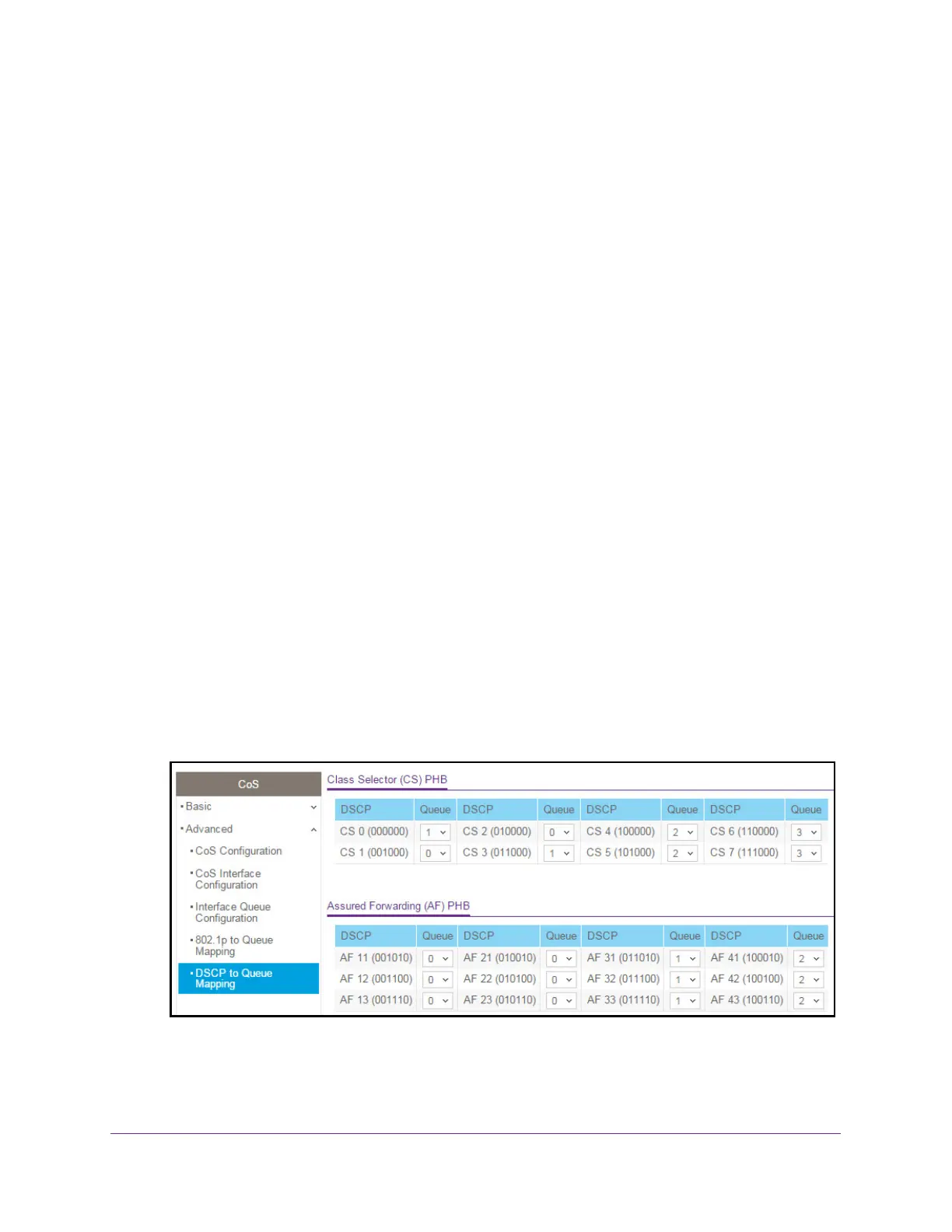

5. Select QoS > CoS >
Advanced > DSCP to Queue Mapping.
6. For each DSCP value, select from the corresponding Queue menu which internal traffic
class must be mapped to the DSCP value.
