NETGEAR GS310TP User Manual

Manage Device Security
239
S350 Series 8-Port Gigabit Ethernet Smart Managed Pro Switch Models GS308T and GS310TP

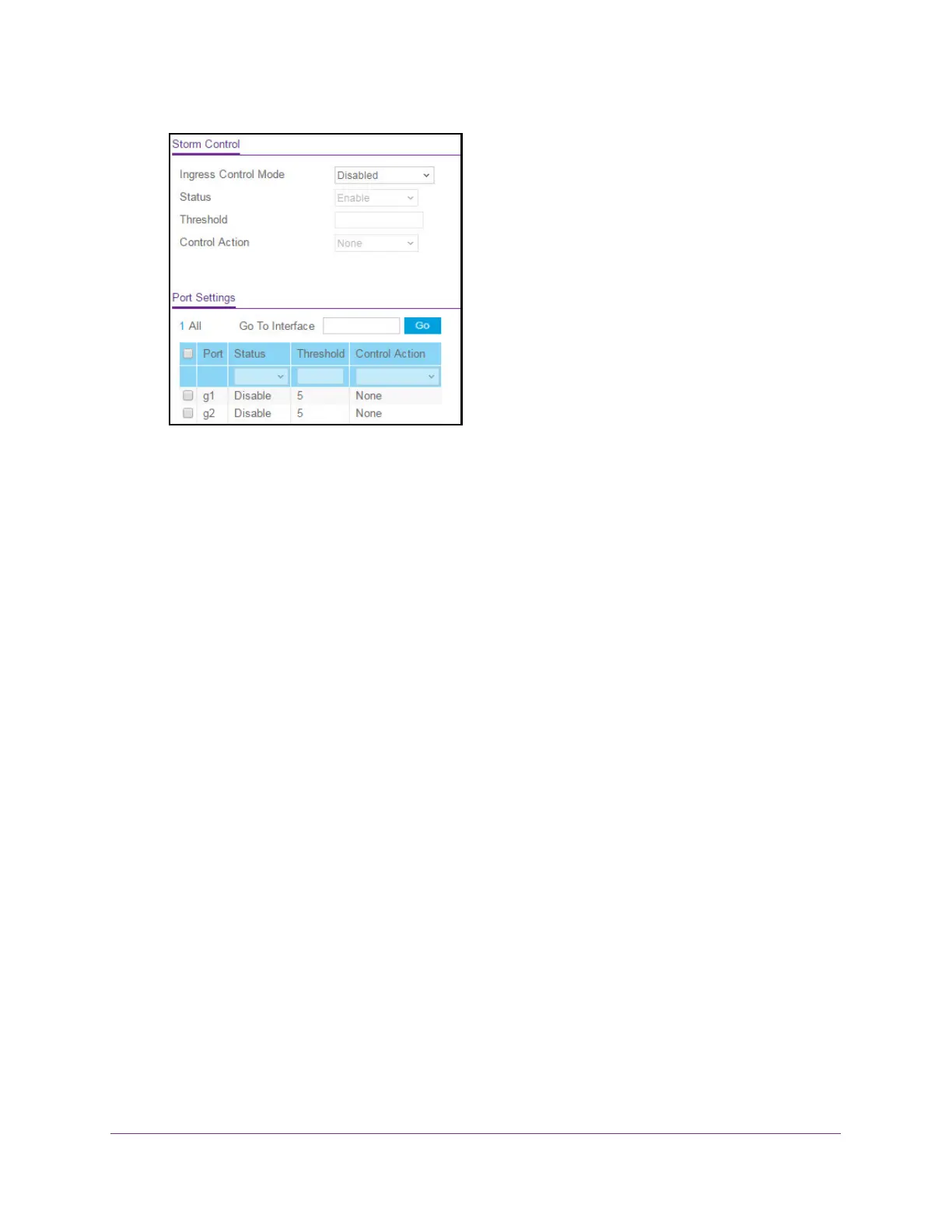

The default settings in the Port Settings section depends on the global storm control
settings (see Configure Global Storm Control Settings on page 236), which apply to all
ports.
6. In the Port Settings section, select one or more interfaces by taking one of the following
actions:
• T
o configure a single interface, select the check box associated with the port, or type
the port number in the Go To Interface field and click the Go button.
• T
o configure multiple interfaces with the same settings, select the check box
associated with each interface.
• T
o configure all interfaces with the same settings, select the check box in the heading
row.
7. From the Status menu,
specify whether the ingress control mode is enabled for the port by
selecting Enable or Disable.
8. In the Threshold field, specify the maximum rate at which unknown packets are forwarded
for the port.
The range is a percent of the total threshold between 0 and 100%.
9. From the Control Action mode menu, select one of the following options for the port:
• None. No action is taken.
• T
rap. If the threshold of the configured broadcast storm is exceeded, a trap is sent.
• Shutdown. If the threshold of the configured broadcast storm is exceeded, the port is
shut down.
10. Click the Apply button.
Your settings are saved.

NETGEAR GS310TP Specifications

General

Power connector	DC-in jack
SFP module slots quantity	2
Installed SFP modules quantity	0
Basic switching RJ-45 Ethernet ports type	Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity	8
Output current	1.25 A
Output voltage	54 V
Power consumption (max)	69.3 W
MAC address table	8000 entries
Jumbo frames support	Yes
Total Power over Ethernet (PoE) budget	55 W
Memory type	DDR-SDRAM
Flash memory	32 MB
Internal memory	128 MB
Processor frequency	500 MHz
Mean time between failures (MTBF)	1081119 h
Switch type	Managed
Switch layer	L2
DHCP features	DHCP client
Authentication	Auto VLAN, Guest VLAN, MAC-based authentication, Port-based authentication, Web-based authentication
Authentication type	HWTACACS+, IEEE 802.1x
Security algorithms	802.1x RADIUS, EAP, HTTPS, SSL/TLS
Access Control List (ACL) IPv4 entries	100
Stackable	-
Product color	Black
Rack mounting	No
Number of fans	0 fan(s)
Number of VLANs	64
Networking standards	IEEE 802.1D, IEEE 802.1ab, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3x
Virtual LAN features	Voice VLAN
Operating temperature (T-T)	0 - 40 °C
Number of multicast groups filtered	256
Harmonized System (HS) code	85176990

Weight and Dimensions

Depth	101 mm
Width	263 mm
Height	30 mm
Weight	610 g
