Newport XPS Programmer's Manual

XPS Unified Programmer’s Manual

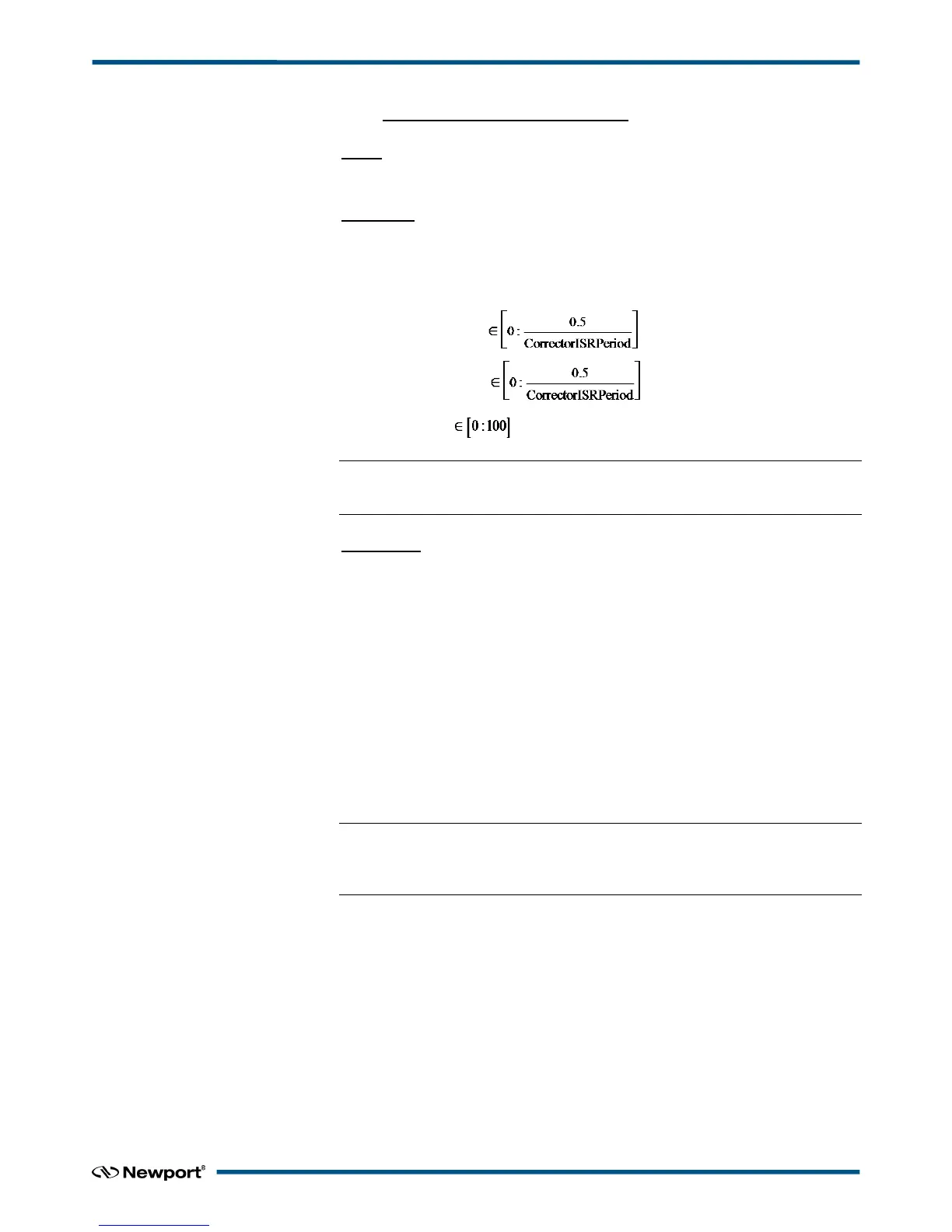

7.2.1.213 PositionerCorrectorNotchFiltersSet
Name
PositionerCorrectorNotchFiltersSet – Sets the notch filter parameters.
Input tests
- Refer to section 7.1: “Input Tests Common to all XPS Functions”.
- Checks the positioner type: (-8)
- Checks parameter values: (-17)
• NotchFrequency
• NotchBandwidth
• NotchGain
NOTE
Refer to system.ref file to get CorrectorISRPeriod value.
Description
This function configures the parameters defined for two notch filters. If the
“NotchFrequency” value is NULL or the “NotchGain” value is NULL then the notch
filter is not activated.
First notch filter parameters:
• NotchFrequency1.
• NotchBandwidth1.
• NotchGain1.
Second notch filter parameters:
• NotchFrequency2.
• NotchBandwidth2.
• NotchGain2.
NOTE
If the corrector type is “NoEncoderPositionCorrector" then (-24) error is
returned.
331 EDH0373En1023 — 01/18
