Rewrite IR pass lter compensation data
※
When the main PCB or parts of optical system are replaced, rewrite the compensation data according to the following
instrucition.
②

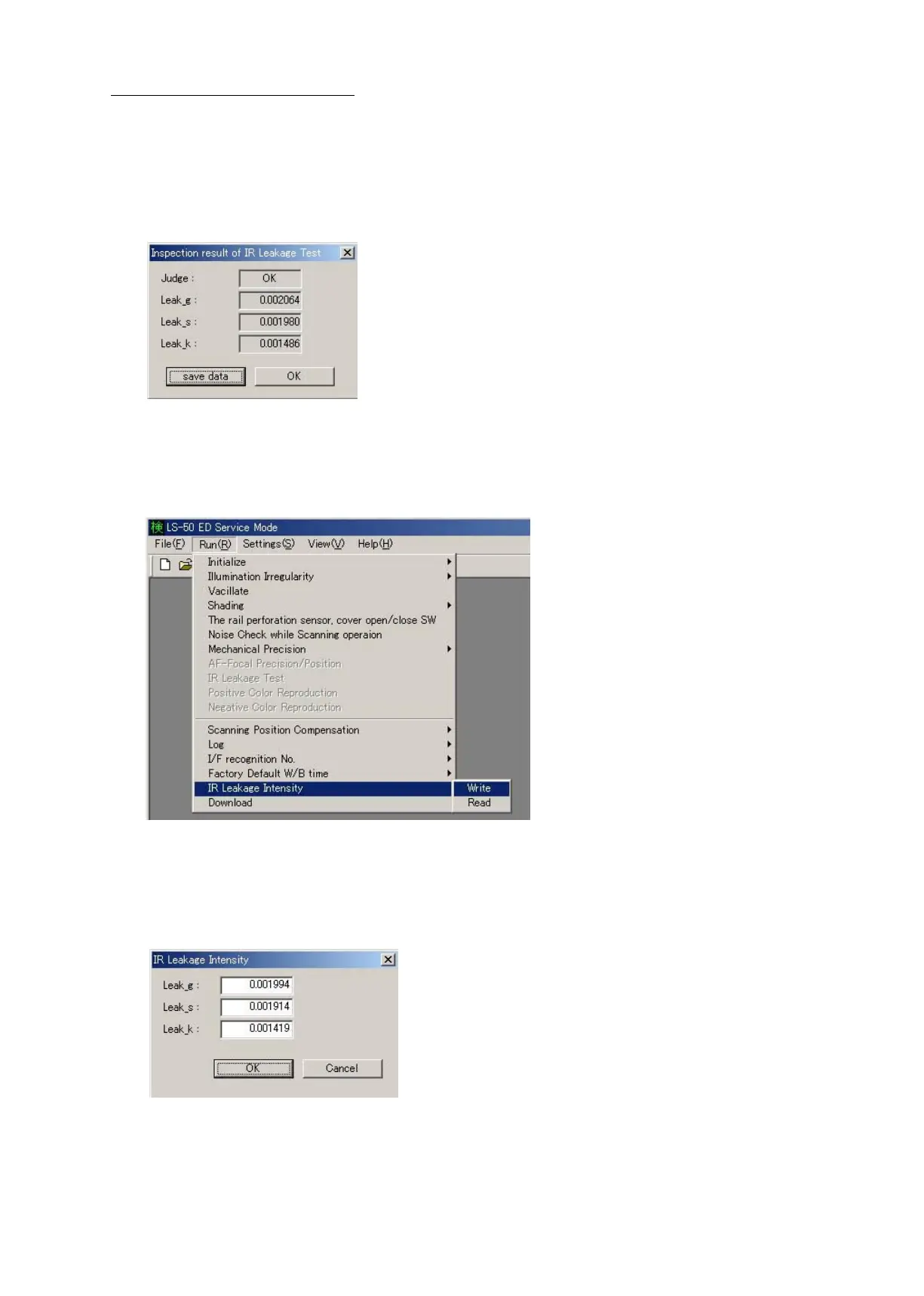

Select "Run" on the main menu, then choose "IR Leakage Intensity" and "Write" from the pulldown menus.
③
Input each data
(Leak_g・Leak_s・Leak_k) that was recorded in ①
, then click "OK".
①
After replacing parts, perform "IR Leakage Test" (IR pass lter) from page A17 to A19. Record each data on inspection
results (Leak_g・Leak_s・Leak_k).
To Next Page
