Bluetooth (BER-)Test with JBT-9
The JBT-9 testbox is a generic device to perform Bluetooth Bit Error Rate testing and
doing cordless FBUS connection via Bluetooth. An ACP-8x charger is needed for BER
testing and AXS-4 cable in case of cordless testing interface usage.
Sales package includes:
• JBT-9 testbox
• SMA stub antenna
• Installation and warranty information
Product Code
JBT-9 sales kit code: 0081490

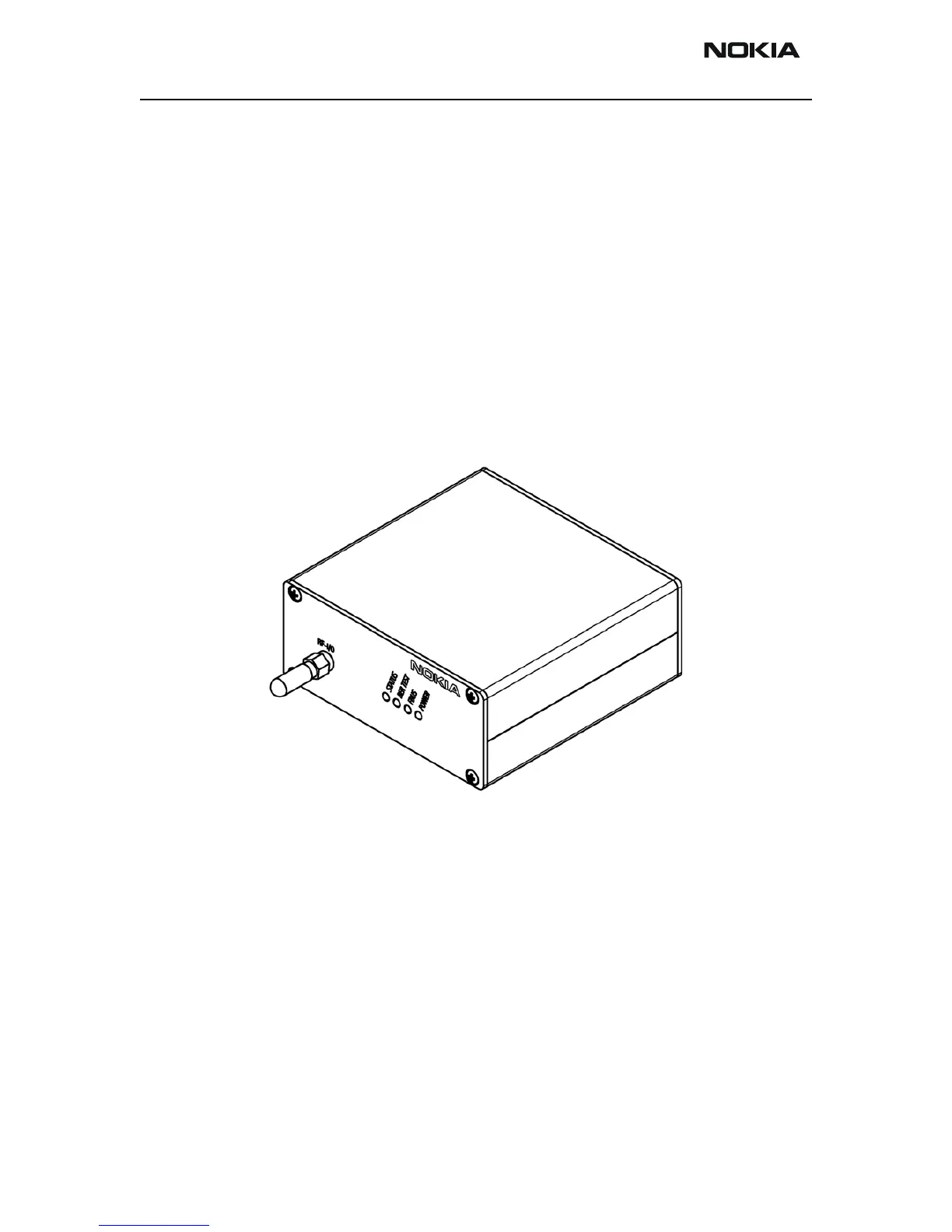

View of JBT-9 with antenna
HARDWARE INSTRUCTIONS
Hardware needed to use JBT-9
• JBT-9 Bluetooth testbox
• SMA stub antenna (part of sales kit)
• ACP-8x charger (x denotes region, e.g. ACP-8E for Europe)
• Optional AXS-4 serial cable for BT FBUS connection
USE OF JBT-9 STAND-ALONE
The JBT-9 Box can be used without any PC connection as loop-back device for BT test-
ing. To verify the products BT functionality, a Bit Error Rate test needs to be performed
against JBT-9. The test is controlled and executed by Phoenix service software.
