Nokia 616 Service Manual

Nokia Customer Care 5 - Disassembly Instructions
Company Confidential TFE-4/RV-1
Issue 2.0 Mar/2005 Copyright © 2005 Nokia Corporation. Page 5-6
Company Confidential
Disassembly Instructions for the SU11/SU21

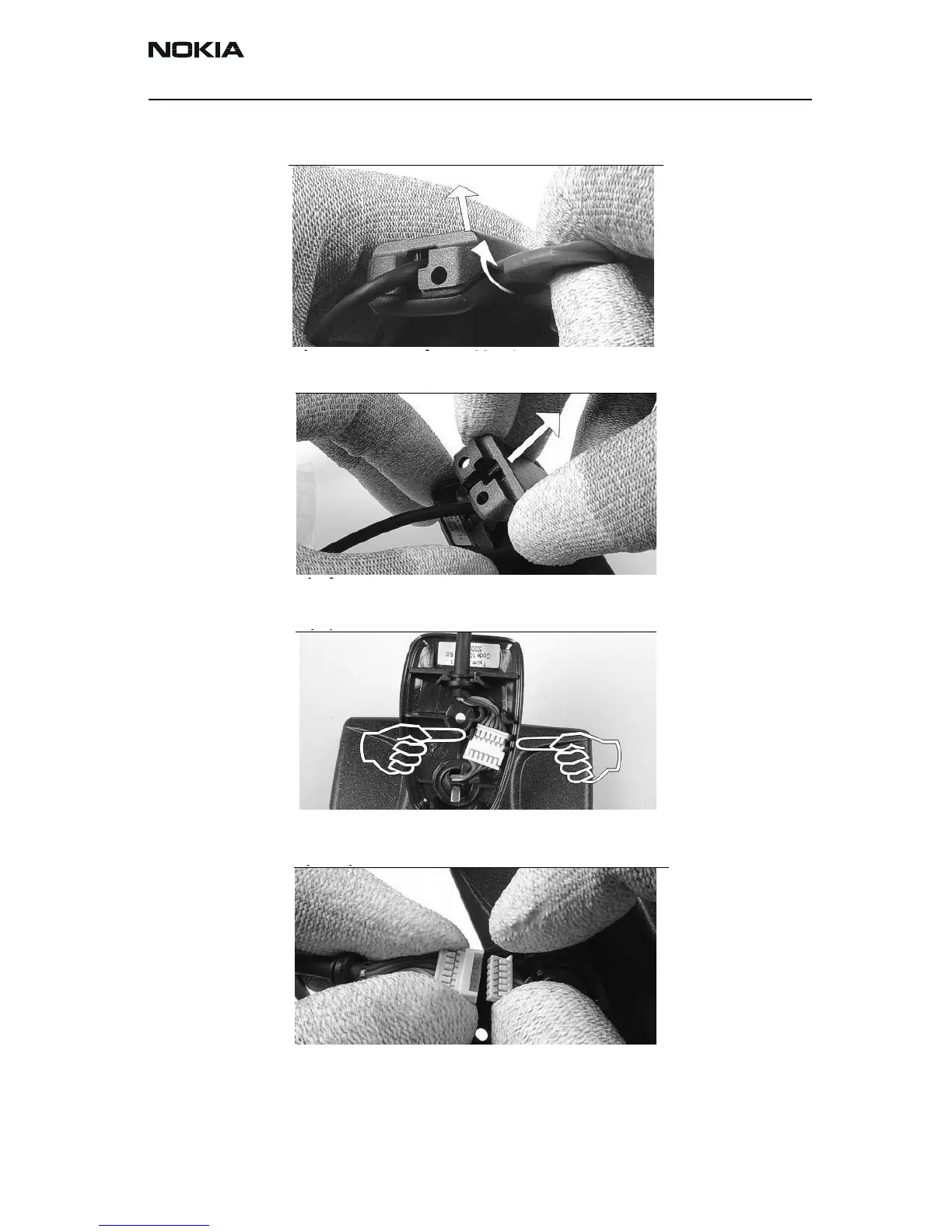

1. Open the cover of the Holder Kit with the SRT-6 tool.
2. Lift up the cover.
3. Note the cable routing and the two guide pins at both sides of the connector.
4. Remove the connector out of the guide pins and disconnect the cable.
Note: For assembly use the reverse order.
Approved 3.0
9. DISASSEMBLY INSTRUCTION SU-11/SU-21
)fHolder Kit
NOTE! For assembling use the
reverse order
10. DISASSEMBLY INSTRUCTION SIM FLAP
A-Cover SIM Flap
SIM Flap NOTE! For assembling
use the reverse order
Approved 3.0
9. DISASSEMBLY INSTRUCTION SU-11/SU-21
Holder Kit )f
NOTE! For assembling use the
reverse order
10. DISASSEMBLY INSTRUCTION SIM FLAP
A-Cover SIM Flap
SIM Flap NOTE! For assembling
use the reverse order
Approved 3.0
9. DISASSEMBLY INSTRUCTION SU-11/SU-21
)p Holder Kit
NOTE! For assembling use the
reverse order
10. DISASSEMBLY INSTRUCTION SIM FLAP
A-Cover SIM Flap
SIM Flap NOTE! For assembling
use the reverse order
Approved 3.0
9. DISASSEMBLY INSTRUCTION SU-11/SU-21
Holder Kit )p
NOTE! For assembling use the
reverse order
10. DISASSEMBLY INSTRUCTION SIM FLAP
A-Cover SIM Flap
SIM Flap NOTE! For assembling
use the reverse order
