Receiver
General instructions for RX troubleshooting
Connect the MJ1-EB containing the phone to a PC e.g. with DAU-9X cable and Dongle.
Follow the following instructions.
Measuring RX I/Q signals using RSSI reading
Step 1: Setting up Phone and Phoenix
• Start Phoenix Service Software
• Open the FBUS connection
• Select File /Scan Product (Ctrl-R)
• Wait until phone information shows in the lower right corner of the screen.
• Set operating mode to local mode
Step 2: Execute the measurement
• Select Maintenance/ Testing/ RF Controls
• Wait until the RF Controls window pops up
• Select Band GSM 900 or GMS1800
Active unit RX
Operation mode Burst
RX/TX Channel 37 or 700 or 661
• Select Maintenance/Testing/RSSI reading

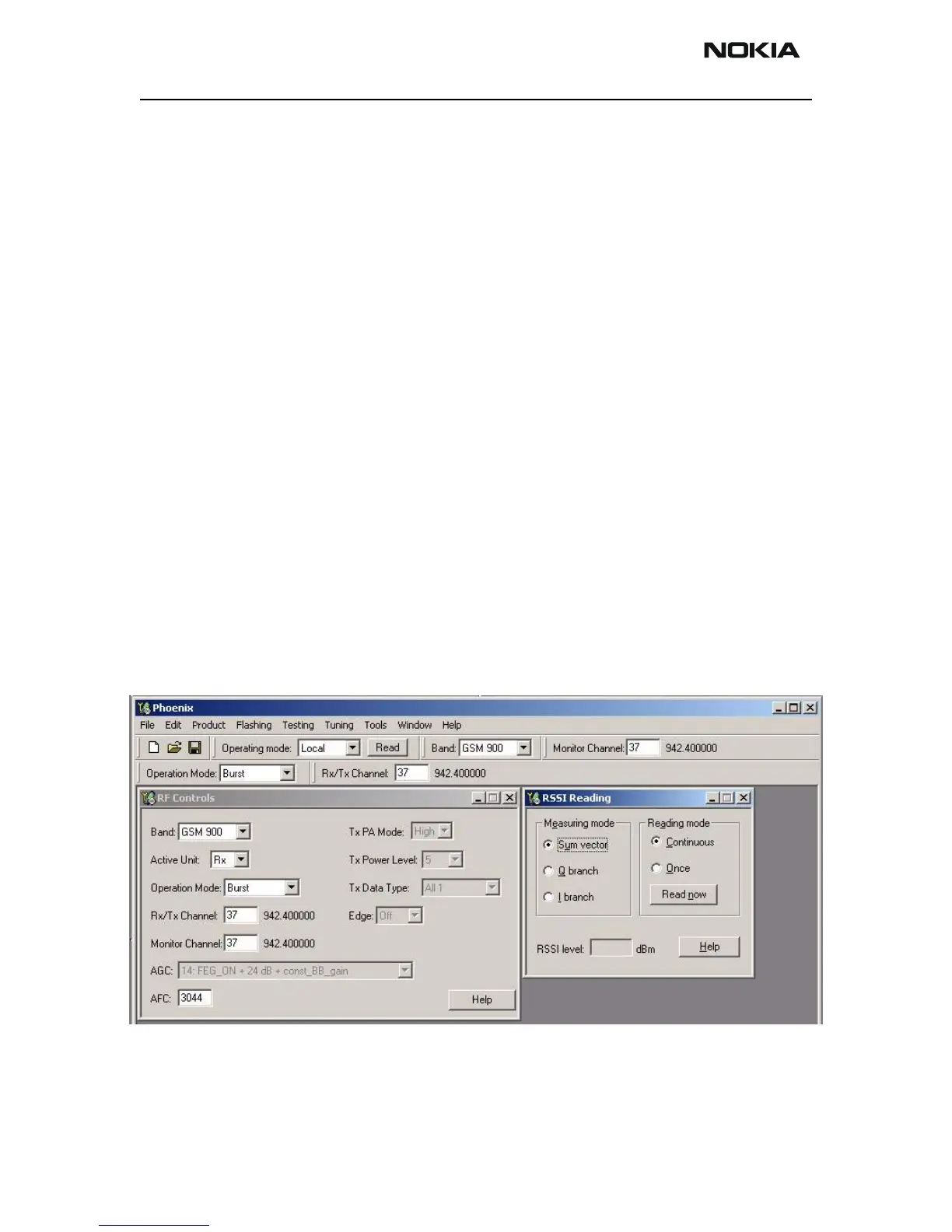

• The screen should now look like this:
• Apply a signal with a frequency of
EGSM : 942.467 MHz (channel 37 + 67.710kHz offset)
GSM1800 : 1842.867 MHz (channel 700 + 67.710kHz offset)
