Nokia 616 Service Manual

TFE-4/RV-1
3 - Service Software Nokia Customer Care
Page 3-32 Copyright © 2005 Nokia Corporation Issue 2.0 Mar/2005
Company Confidential
Perform the Test:
Activate the loop to send the HF-Mic (hands free in) signal to HF Speaker (hands free
out). When the HF-Mic is connected, blowing into the HF-Microphone shall be hearable
in the HF-Speaker.
In a second step, activate the loop to send the HD-Mic (handset in) signal to HD Speaker
(handset out). When Headset is connected, blowing into Handset Microphone shall be
hearable in the Handset Speaker.
By deactivating the loop no signal should go through.
Digital I/O Tests
Refer to Delta test description for AMS Service SW release.
SIM Test
Refer to Delta test description for AMS Service SW release.
Delta Test description for AMS Service SW release
Self Test
Test description:
Open the Self Test Menu from the Testing drop down menu.
Press the RUN Button to start the test. The test results will be displayed.

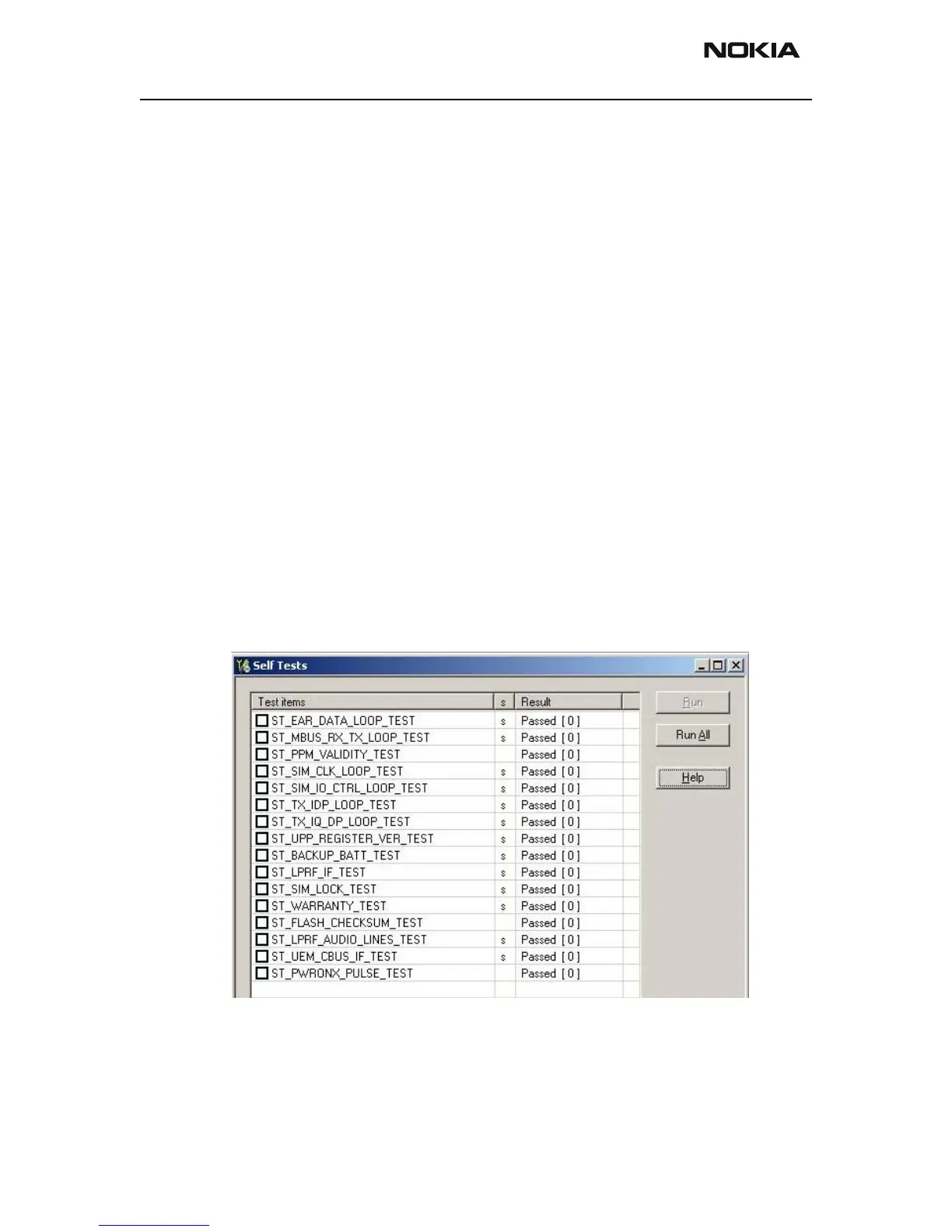

Figure 2: Self-Test setup
