Nokia 616 Service Manual

Customer Care Schematics and Component Finder TFE-4/RV-1
Company Confidential
Issue 2.0 Mar/2005 Copyright © 2005 Nokia Corporation Page 9-2

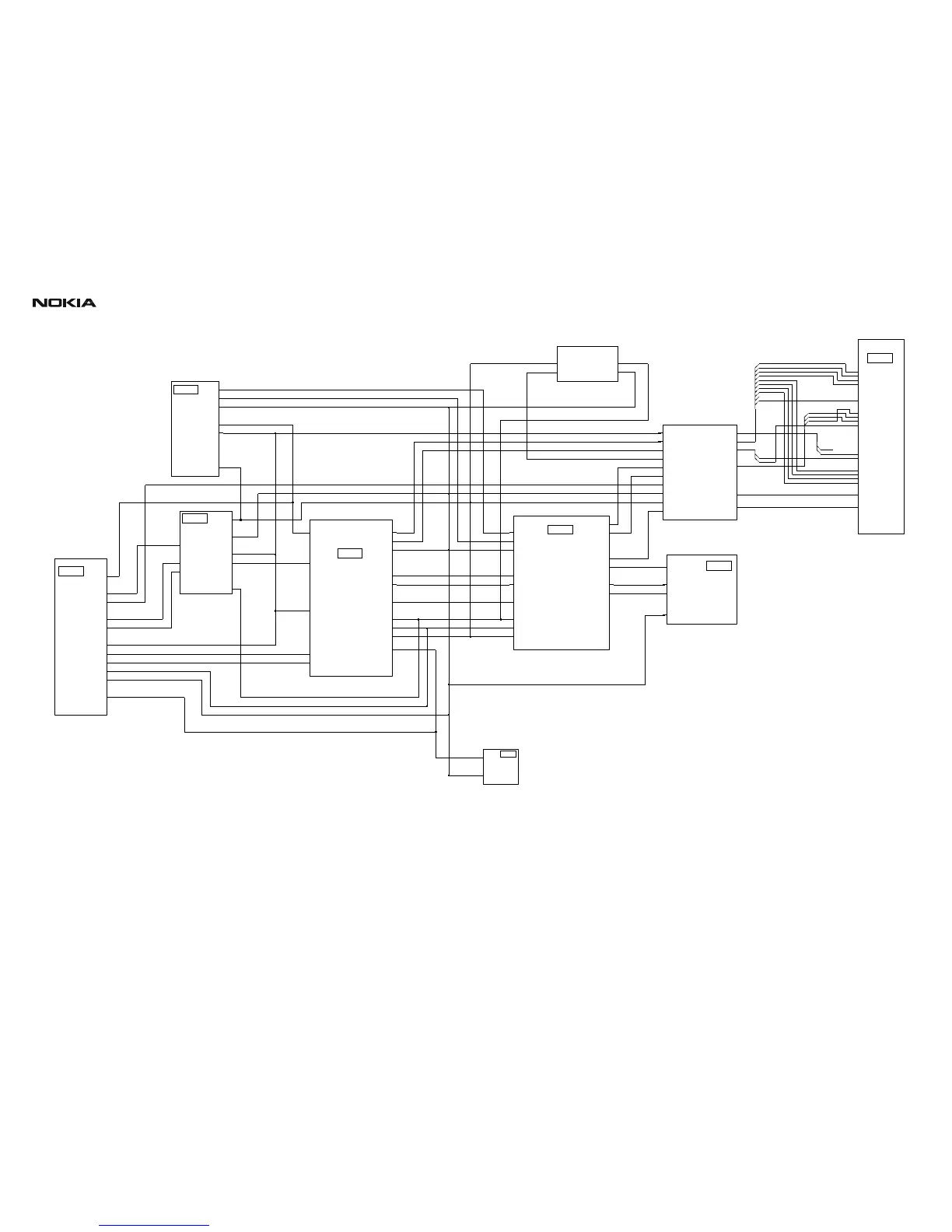

Title: DCT-4 common baseband
XEAR(3:0)
XMIC(2:0)
AUDIO
AUDUEMCTRL(5:0)
GENIO(52:0)
HEADINT
PUSL(3:0)
SLOWAD(6:0)
XAUDIO(17:0)
AUDUEMCTRL(5:0)
GENIO(52:0)LPRFCLK
PUSL(3:0)
LCDUI(2:0)
MEMAD(24:16)
MEMADDA0(15:0)
MEMCONT(15:0)
PUSL(3:0)
RFCLK
RFCLKGND
RFCONVCTRL(2:0)
RFCONVDA(5:0)
RFICCNTRL(2:0)
LPRF
basic8m
AUDIODATA(3:0)
AUDUEMCTRL(5:0)
GENIO(52:0)
IACCDIF(5:0)
KEYB(10:0)
PUSL(3:0)
PWRONX
RFAUXCONV(2:0)
RFCONV(9:0)
RFCONVCTRL(2:0)
RFCONVDA(5:0)
SIMIF(3:0)
SLOWAD(6:0)
XAUDIO(17:0)
PUSL(3:0)
PWRONX
SLOWAD(6:0)
SIM
GENIO(52:0)
SIMIF(3:0)
POWER
UPP
dual_4.0
ACCDIF(2:0)
AUDIODATA(3:0)
AUDUEMCTRL(5:0)
CHARGER(4:0)
GENIO(52:0)
IACCDIF(5:0)
KEY_UI
GENIO(52:0)
KEYB(10:0)
LCDUI(2:0)
HEADINT
IACCDIF(5:0)
PWRONX
RFAUX(1:0)
SIMIF(3:0)
SLOWAD(6:0)
XEAR(3:0)
XMIC(2:0)
SYS_CONN
ACCDIF(2:0)
CHARGER(4:0)
GENIO(52:0)
Customer Care / Service & Support Readiness / Competence Transfer Team
Copyright © 2005 NOKIA Only for training and service purposes
Page 2(14)
Version: 2.0
DCT-4 common baseband
Page 6
Page 3
Page 3
Page 4
Page 5
Page 4
RFICCNTRL_O(2:0)
SLOWAD(6:0)
GENIO_O(52:0)
LPRFCLK
LPRFCLK_I
PUSL(3:0)
RFAUX(1:0)
RFAUXCONV(2:0)
RFAUXCONV_O(2:0)
RFCLK
RFCLKGND
RFCLK_I
RFCONV(9:0) RFCONV_O(9:0)
RFICCNTRL(2:0)
RF_BB
GENIO(52:0)
amd64mbit
MEMORY
GENIO(52:0)
MEMAD(24:16)
MEMADDA0(15:0)
MEMCONT(15:0)
RFBUSCLK
VREF1
AFC
TXP
TXQOUTN
RESET
RXIINN
RXQINP
RXQINN
TXIOUTP
TXIOUTN
RXIINP
TXC
RFBUSDA
RFBUSEN1
TXQOUTP
0
2
6
5
0
1
2
0
9
1
2
3
4
5
6
7
8
RFBUSDA
RFBUSEN1
RFCLK_I
RXIINN
RXIINP
RXQINN
RXQINP
TXC
TXIOUTN
TXIOUTP
TXP
TXQOUTN
TXQOUTP
VREF1
Schematics
RF
LPRFCLK_I
RESET
RFBUSCLK
Page 6
Page 7
18.01.2005
N610/N616 TFE-4/RV-1
Board version: TF5_06

Nokia 616 Specifications

General

Brand	Nokia
Model	616
Category	Automobile Electronics
Language	English
