TFE-4/RV-1
3 - Service Software Nokia Customer Care
Page 3-22 Copyright © 2005 Nokia Corporation Issue 2.0 Mar/2005
Company Confidential

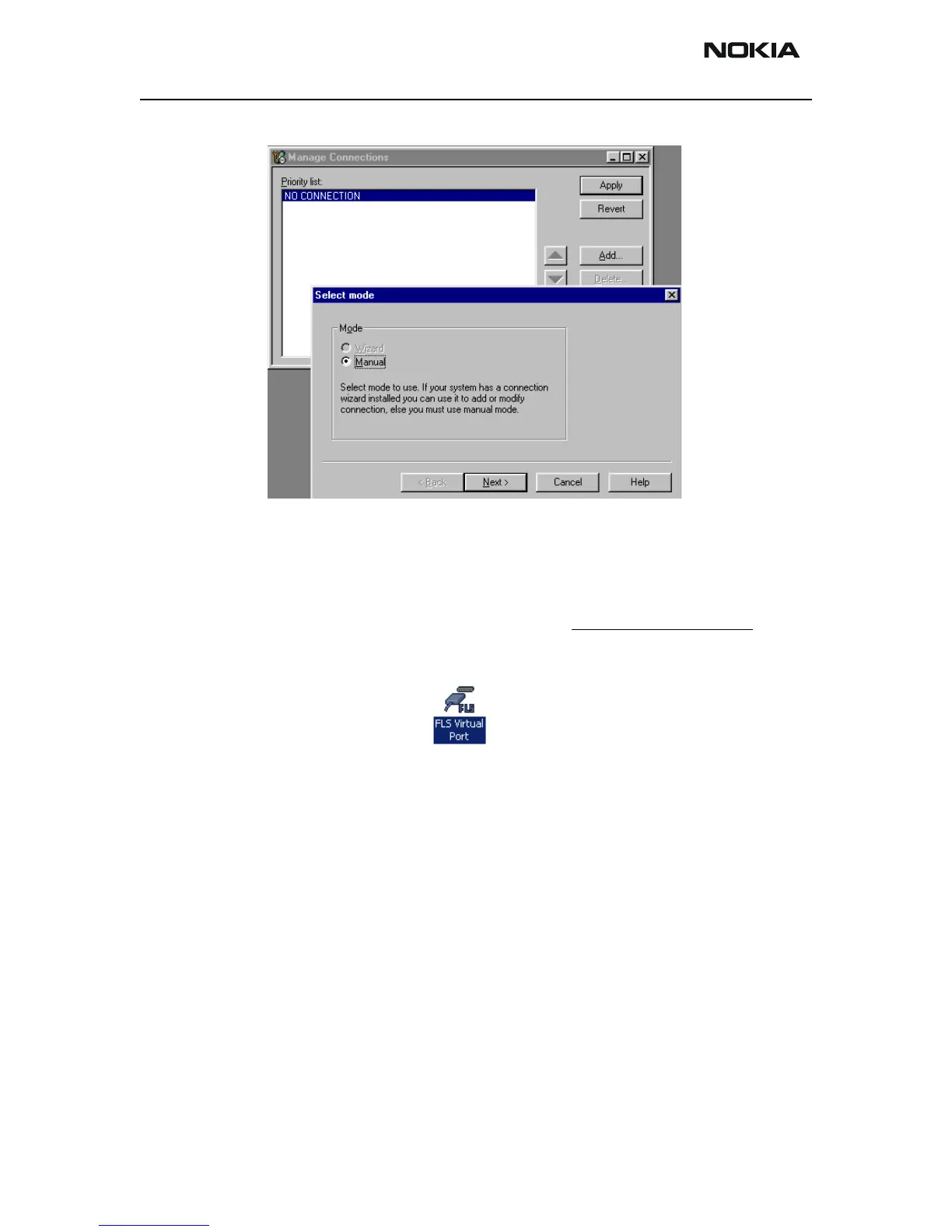

Manual Settings
A) For FLS-4S POS Flash Device choose the following connection settings
• Media: FBUS
• COM Port: Virtual COM Port used by FLS-4 Please check this always!
(To check please go to Windows / Control Panel / FLS Virtual Port / Configuration)
B) For FPS-8 Flash Prommer choose the following connection settings:
• Media: FPS-8
• Port Num: COM Port where FPS-8 is connected
• COMBOX_DEF_MEDIA: FBUS
Choose “Finish” to complete.
If you use the Wizard, connect the tools and a phone to your PC and the wizard will
automatically try to configure the correct connection.
Activate the connection you want to use by clicking it and use up/down arrows to move
it on top of the list. Choose “Apply”. The connection is now selected and can be used
after closing the “Manage Connections” window.
