RF Measurement points
RF Supply points

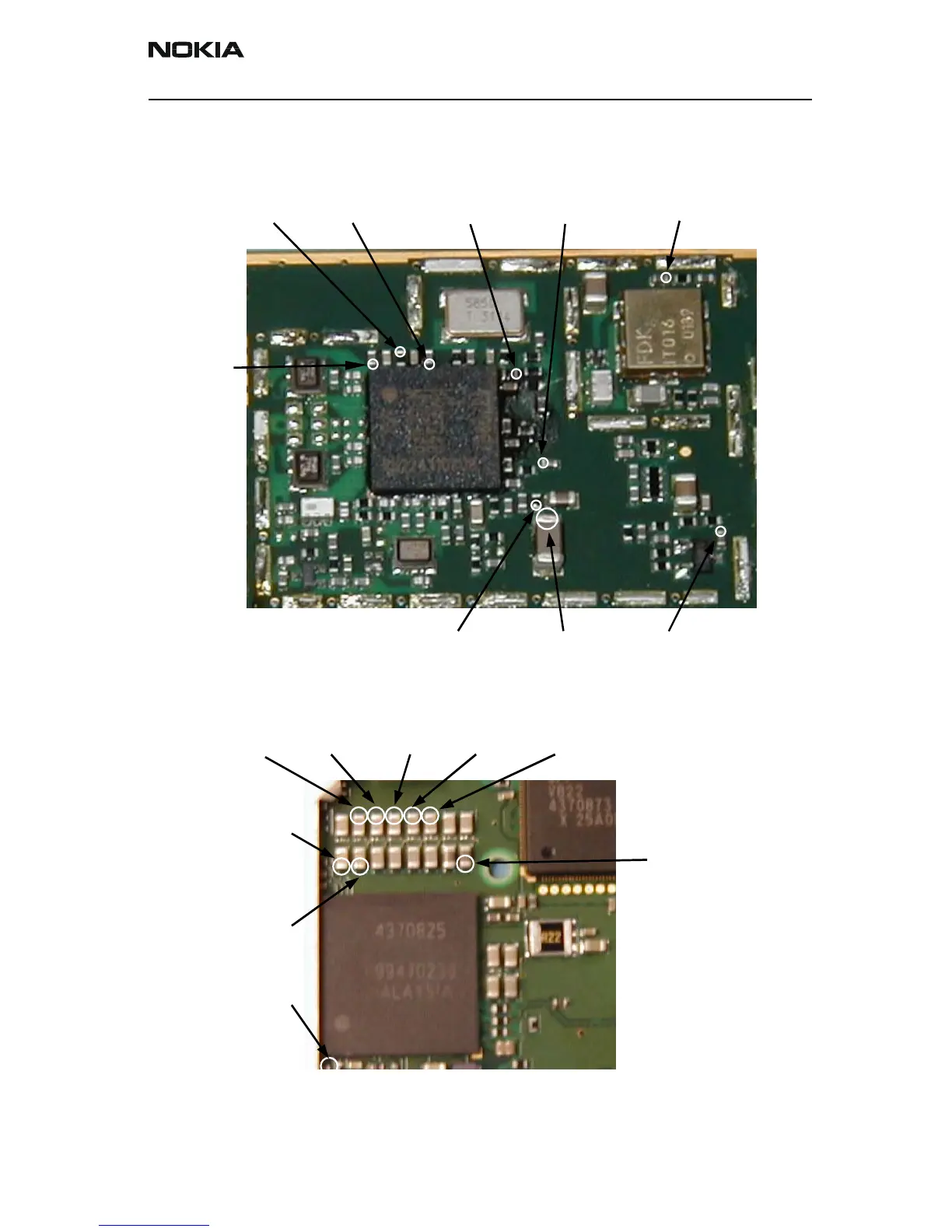

Figure 23: RF Supply points inside Mjoelner can
Figure 24: RF Supply points inside and can
VR6 (C620)
VREF1 (R612) VR4 (C871) VIO (R630)
VR5 (C623) VR7 (C610)
VR1A (R623) VR2 (C627) VR3 (C605)
VREF1 (C288) VR7 (C299) VR4 (C296) VR6 (C298) VR2 (C294)
VR5 (C297)
VR3 (C295)
VIO (C218)
VR1A (C292)
