Mounting
Note: Remember that all equipment must be mounted so that it does not interfere with
the operation of the vehicle.
Radio Unit TFE-4/RV-1 (Pos.1)
If desired, the RU may be mounted at a less visible position in the car interior than
shown in the illustration. However, ensure that the RU is installed to permit easy access
to the SIM card so that it can be changed if necessary and make sure that the cables for
the microphone and loudspeaker will reach the places you intend to mount these com-
ponents. The RU will clip securely onto the bracket supplied if it is mounted correctly.
Note: Mount the RU in such a way that a connection using BT can be established to a compatible
device.

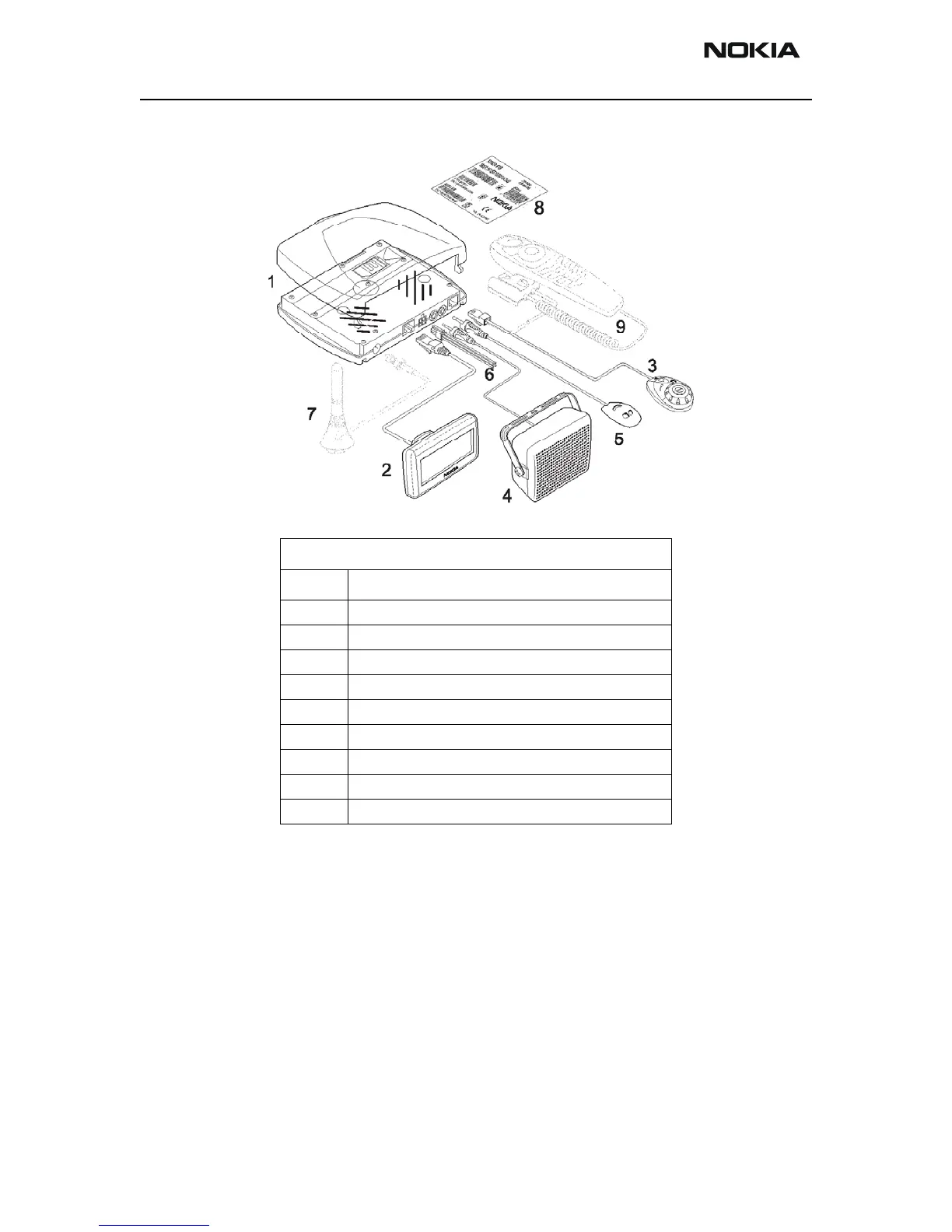

Nokia 616 CarKit Phone equipment
Item Description
1 Radio Unit RV-1
2 Display Unit SU-21
3 Input Device CUW-3
4 Loudspeaker SP-2
5 Handsfree Microphone HFM-8
6 Power Cable PCU-4
7 GSM Antenna (not supplied)
8 Stickers
9 Car Handset HSU-4 (not included)
