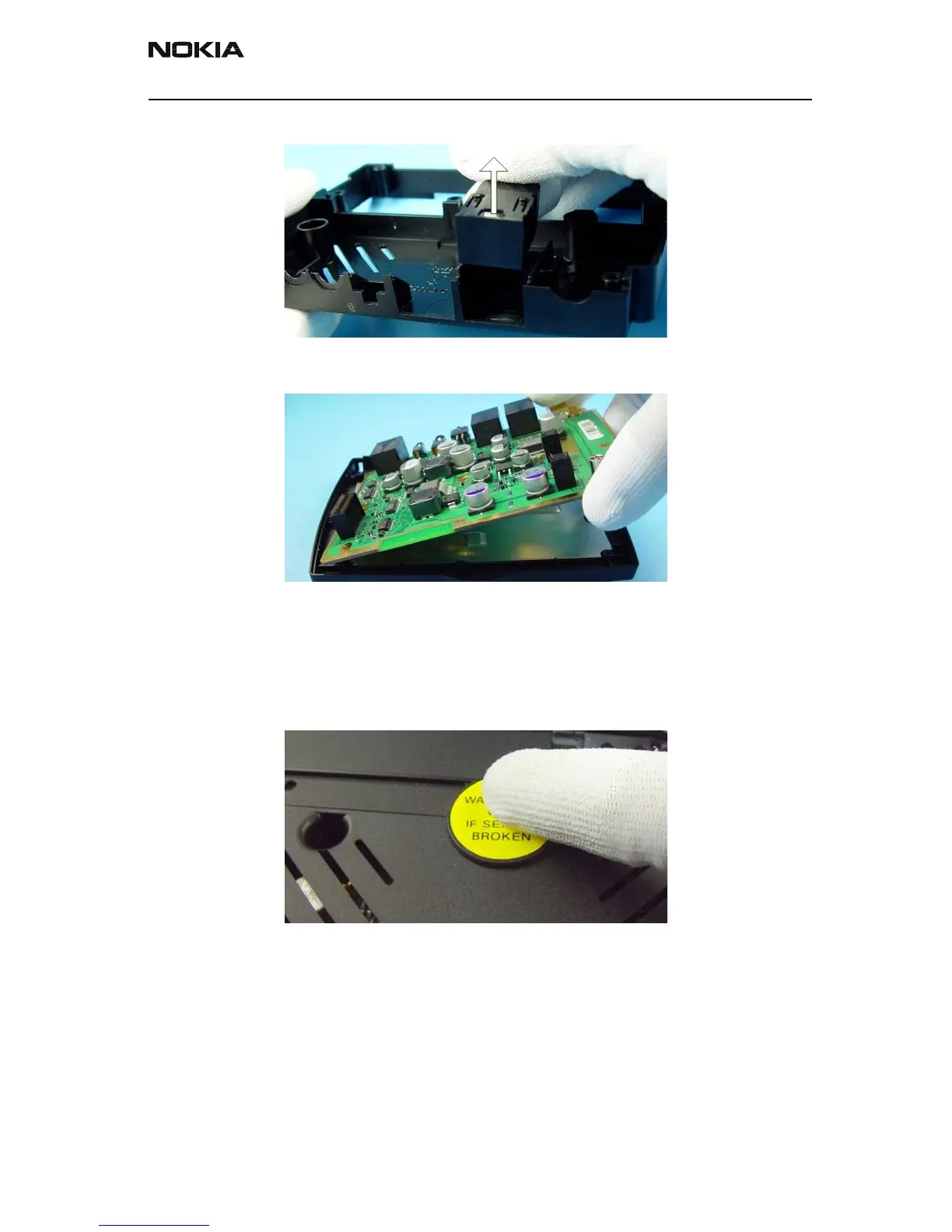

9. Remove the Data Cap.
10. Remove the Junction Module with the Heatsink still attached. Note: Junction Module
should not be separated from the Heatsink.
Assembly
Assembly after service will be carried out in the reverse order of the disassembly.
Note: Before returning device to customer make sure to reseal with a new Warranty Seal
label. All remains of the old one must be removed first.
