TFE-4/RV-1 Company Confidential
5 - Disassembly Instructions Nokia Customer Care
Page 5-4 Copyright © 2005 Nokia Corporation. Issue 2.0 Mar/2005
Company Confidential

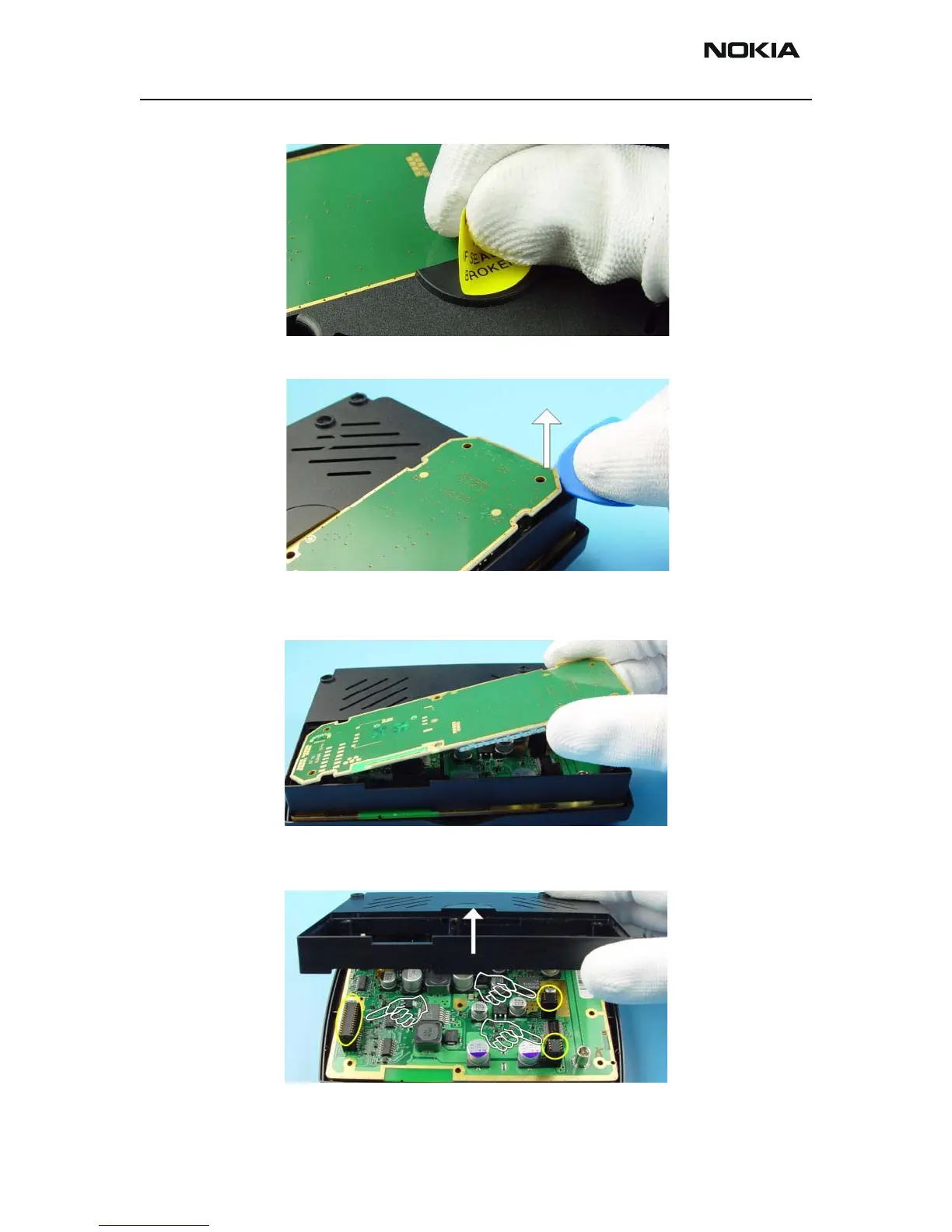

5. Remove the Warranty Seal Label from the frame completely.
6. Engine Unit and Junction Module are attached to each other through antenna con-
nector. Use SRT-6 to separate the parts as shown.
7. Now remove the Engine Unit from the Frame. SIM reader is not soldered and can be
removed easily.
8. Remove the Frame. Do not touch the spring contacts.
