Nokia Customer Care 5 - Disassembly Instructions
Company Confidential TFE-4/RV-1
Issue 2.0 Mar/2005 Copyright © 2005 Nokia Corporation. Page 5-3
Company Confidential
Disassembly Instructions

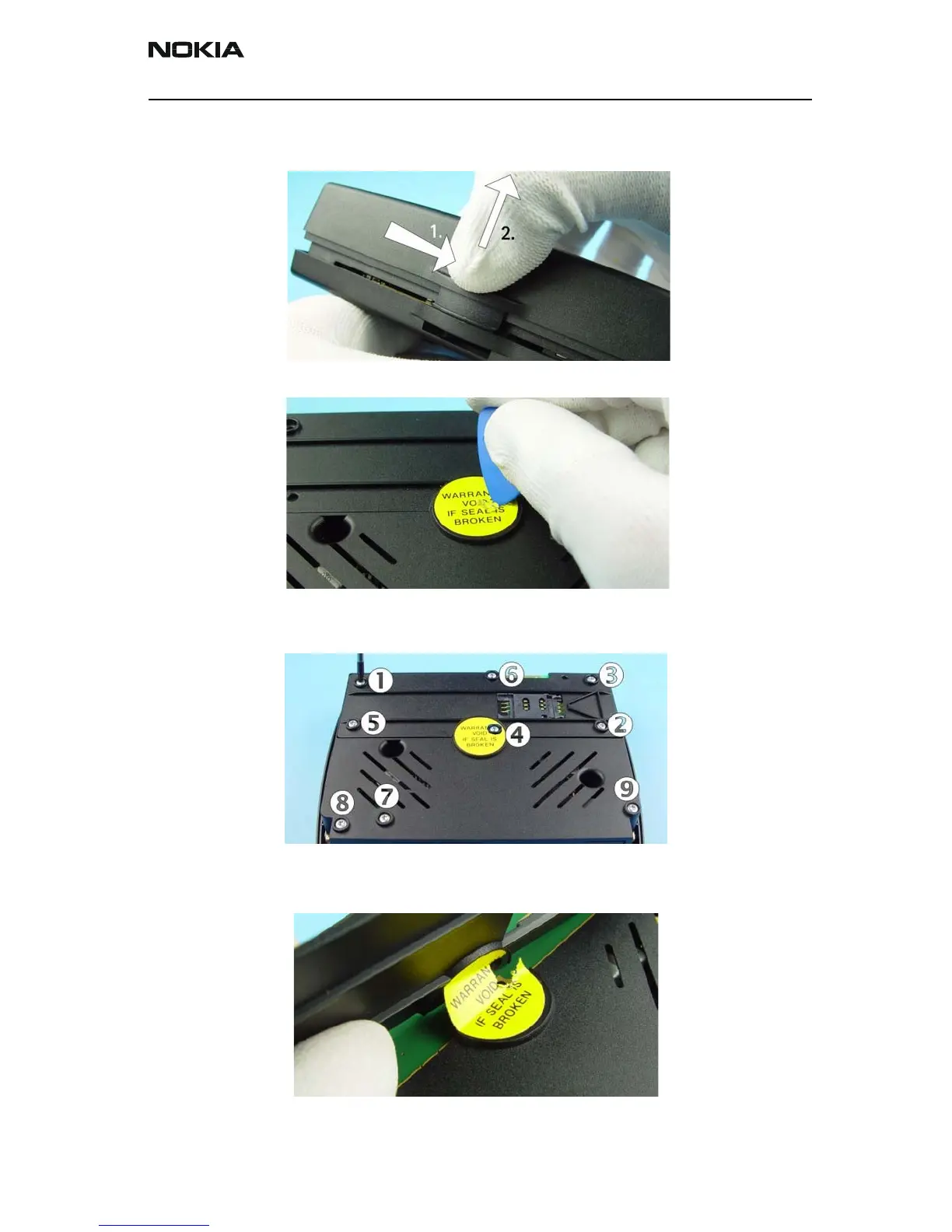

1. Remove ‘A’ Cover by pressing the Release Button and turn upwards
2. Screw No. 4 can be found under the Warranty Seal Label. Tool SRT-6 can be used to
uncover the screw. Note: Warranty is void if this label is broken.
3. Unscrew the nine (9) TORX 8 screws, in the order shown above. For assembly replace
in the same order 1 to 9 with a torque load of 40 Ncm. Once assembled apply a new
Warranty Seal label.
4. Bend the SIM Cover as shown and separate it from the Warranty Seal Label.
To Next Page
