Ignition-Off Mode
The ignition-off power mode is same as active mode and active locked power mode, but
the power supplies are kept alive because the PowerOffx line is held high by the UPP.
This is to enable log-off from GSM network and to enable to continue active phone call
when car is switched off. When those tasks are finished, UPP will set Poweroffx line low
and the RU will switch to standby mode.

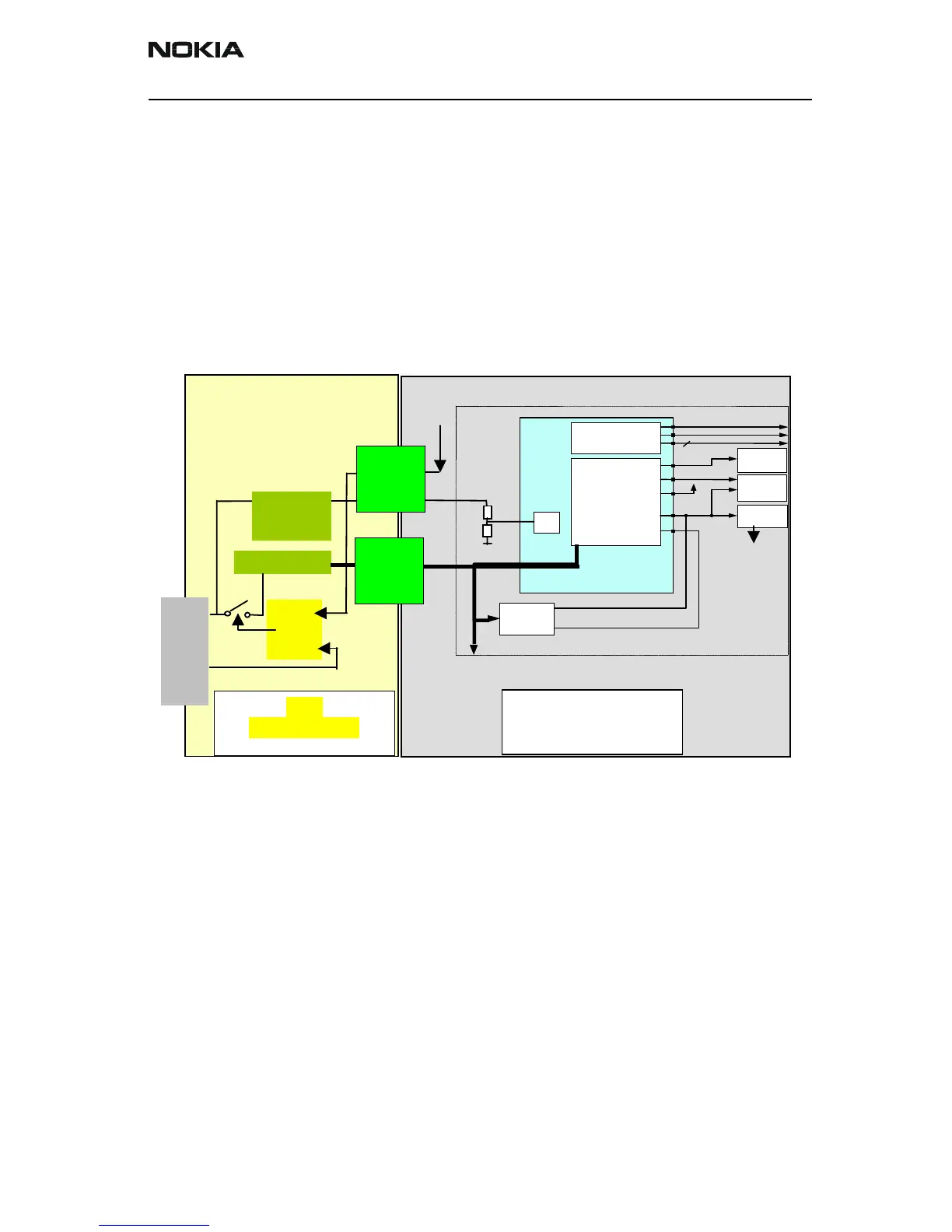

Carbatt-Fail Mode
This mode is reached, when the Carbattery is out of the ‘normal’ operating range. Like in
standby mode all main power supplies are switched off, only power supply for wakeup
logic is active.
