Nokia 616 Service Manual

TFE-4/RV-1 Company Confidential
General Information Nokia Customer Care
Page 1-6 Copyright © 2005 Nokia Corporation. Issue 2.0 Mar/2005
Company Confidential

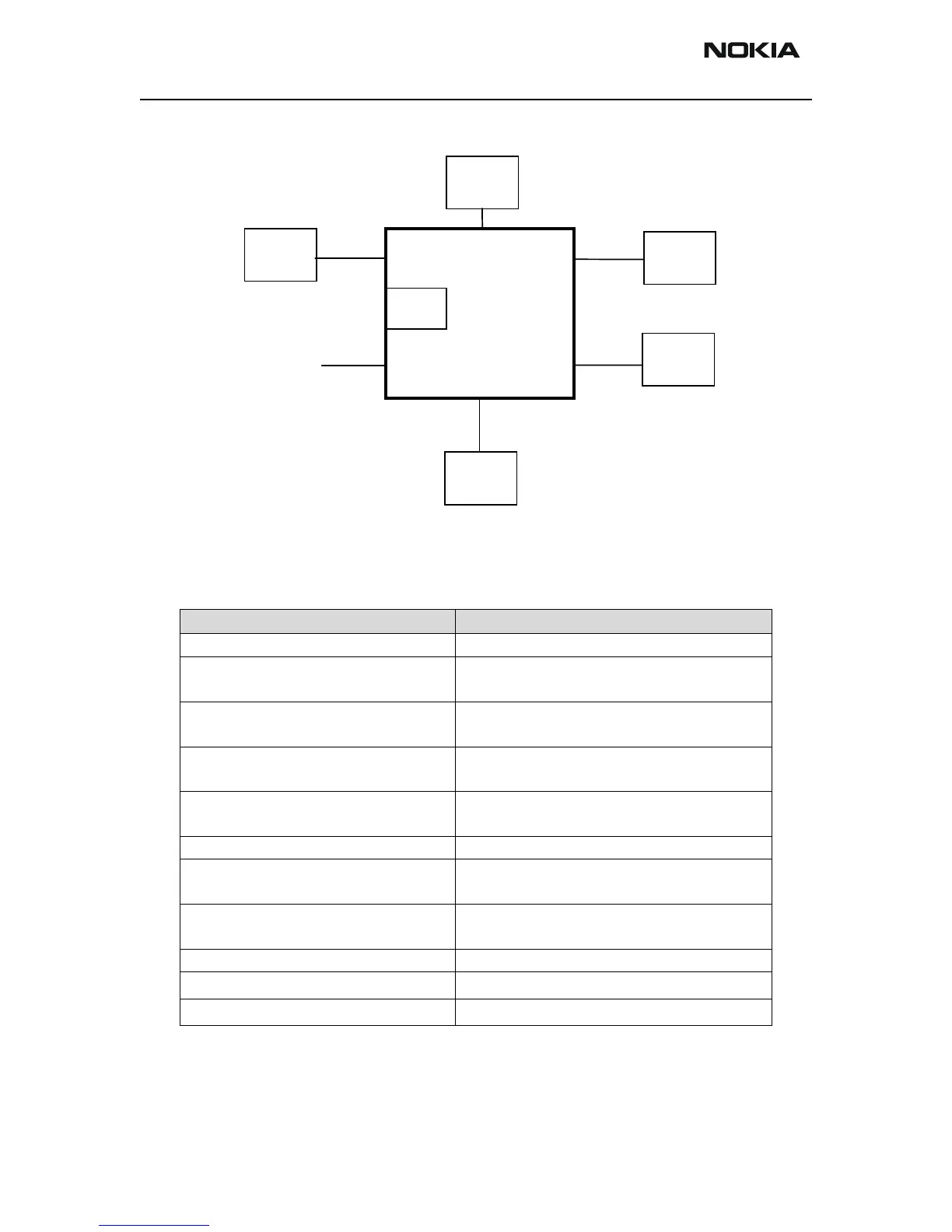

Interconnection Diagram
Figure 2: Interconnection Diagram
System Characteristics
Table 2: General RF Specifications
Parameter Unit
Cellular System EGSM900, DCS1800
RX Frequency Band EGSM: 925 - 960 MHz
DCS1800: 1805 - 1880 MHz
TX Frequency Band EGSM: 880 - 915 MHz
DCS1800: 1710 - 1785 MHz
Output Power EGSM900: +5 ...+33 dBm / 3.2 mW ... 2 W
DCS1800: +0 ...+30 dBm / 1.0 mW ... 1 W
Number of RF Channels EGSM: 174
DCS1800: 374
Channel Spacing 200 kHz
Number of TX Power Levels EGSM900: 15
DCS1800: 16
Typical receiver sensitivity, static channel -106 dBm, EGSM900 TCH/FS at 2%BER
-106 dBm, DCS1800 TCH/FS at 2%BER
Frequency Error, Static Channel < 0.1 ppm
RMS Phase Error
< 5.0
o
Peak Phase Error
< 20.0
o
Car Battery
Ignition
Car Radio Mute
Radio Unit
SIM
HF
Speaker
HF Mic
Display
Unit
Input
Device
Antenna

Nokia 616 Specifications

General

Brand	Nokia
Model	616
Category	Automobile Electronics
Language	English
