Nokia Customer Care 3 - Service Software
TFE-4/RV-1
Issue 2.0 Mar/2005 Copyright © 2005 Nokia Corporation Page 3-31
Company Confidential
TFE-4/RV-1 Delta Test Description
Basically the TFE-4/RV-1 tests, supported by PHOENIX, are the same as of NHM-7.
Main difference to NHM-7 is, that the 1900MHz band is skipped off.
The following test description refers to the deltas, only.
Delta Test description for POS
For service level 1 and 2 (POS) the following tests (for FLS-4S) are enabled with the
Phoenix service software..
• Selftest
•ADC Reading
• Audio Testing
• Digital I/O Testing
• SIM Test
The same tests can also be run with the AMS Service Software release. For Audio Testing
there are slight differences which are described later.
Prepare the test setups as described elsewhere in this Service Manual.
Self Test
Refer to Delta test description for AMS Service SW release.
BB ADC-Readings
Refer to Delta test description for AMS Service SW release.
Audio Testing
Test description:
Open the Audio Test Menu from the Testing drop down menu.

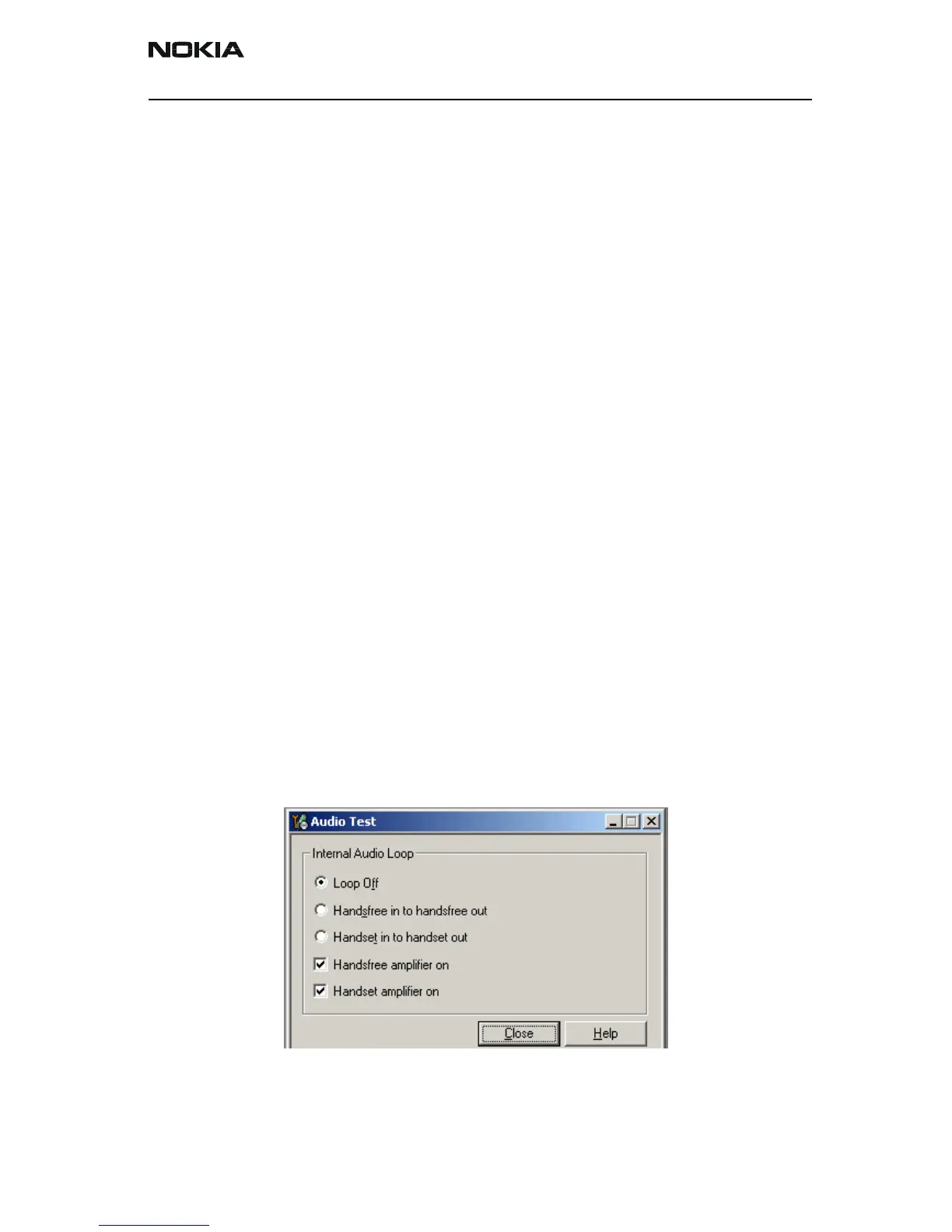

Figure 1: Audio-Test setup
