TFE-4RV
-1
Company Confidential
T
roubleshooting
Nokia Customer Care
P
age 6-20
Copyright
©
2005 Nokia Corporation
Issue 2.0 Mar/2005
Company Confidential
•

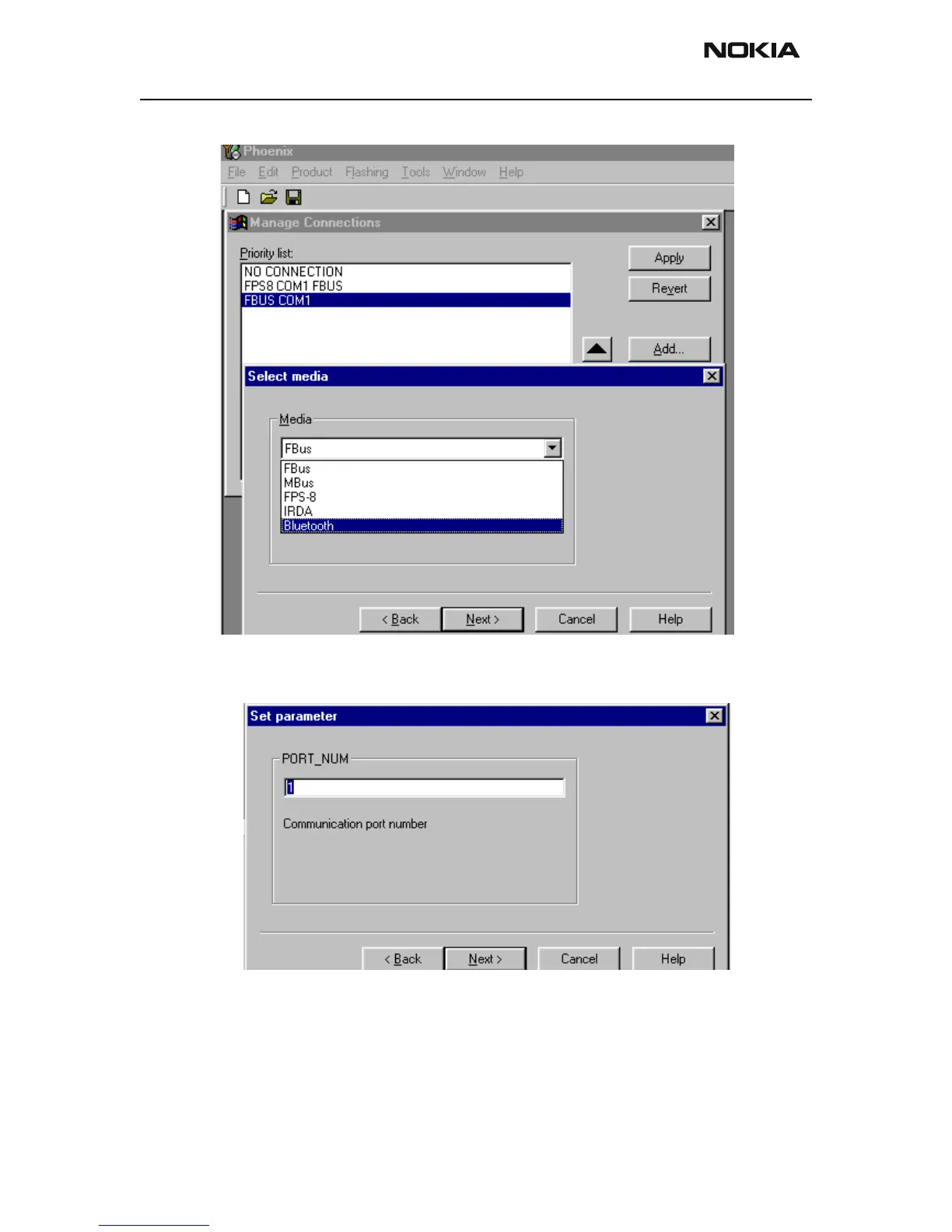

Set the P
ort_Num to the serial port wher
e you have been conne
cted the box. Serial
port 1 = PORT_NUM 1.
•
Give any name to the JBT
-9 box. Default sett
ing is “JBT
-9”. If you have several boxes
in range, separate names can be
given to prevent any confusion.
115
117
