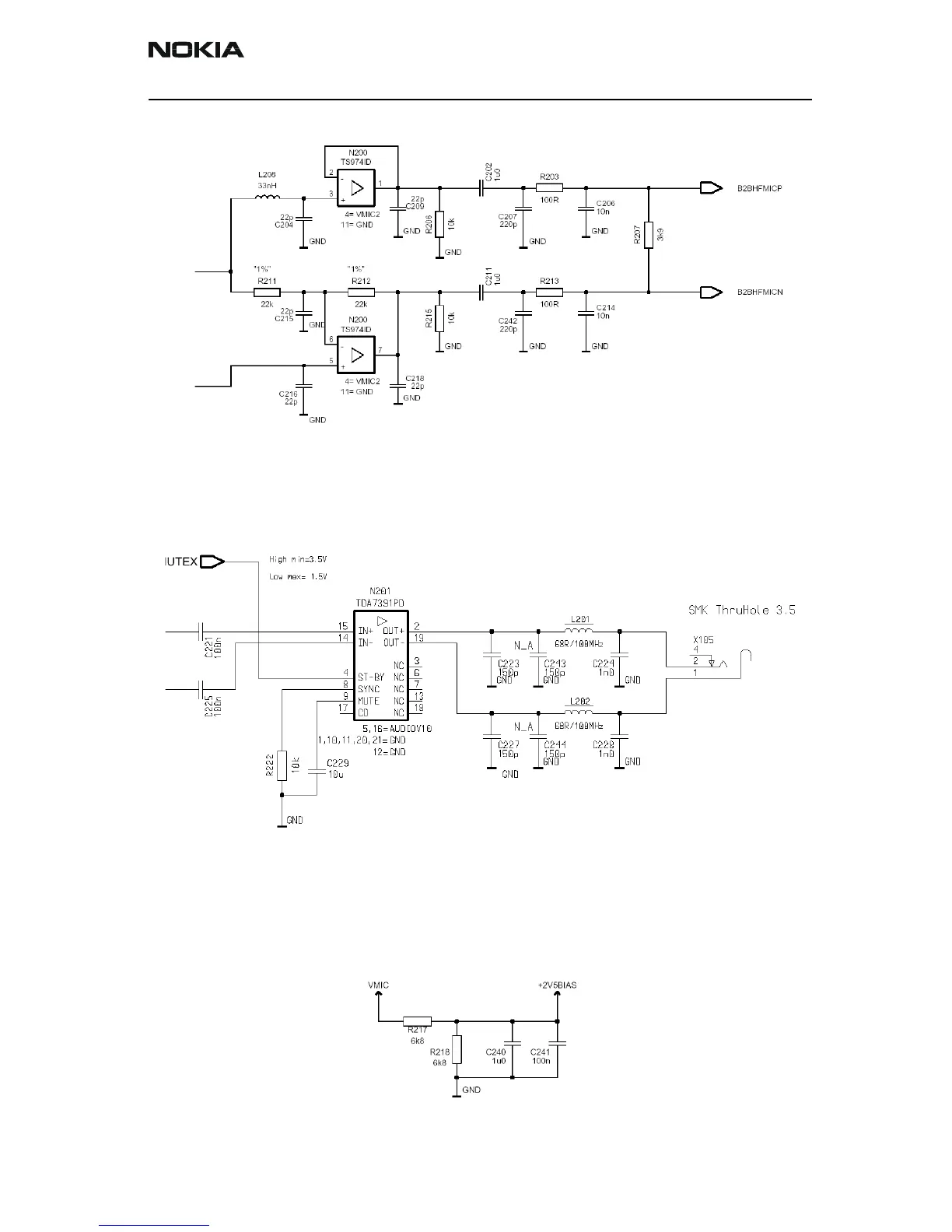

Figure 20: Realization of HFMIC (Part 2)
In the second part the single-sided signal is transferred to symmetric output, which is
used by the phone engine.
Handsfree-Speaker (HFSKR)
Figure 21: Handsfree Speaker Amplifier Realization
The symmetric signal comes from the prefilter and reaches the symmetric power ampli-
fier. With the HFMute signal coming from the HF-Mute Level-Shifter, the amplifier can
be switched on (HSMUTE<1.5 V) or off (HSMUTE = >3.5V).
VBIAS Regulator
Figure 22: VBIAS Regulator
