ACCESS GATEWAY

Installing the Access Gateway 49

Online Documentation and Help

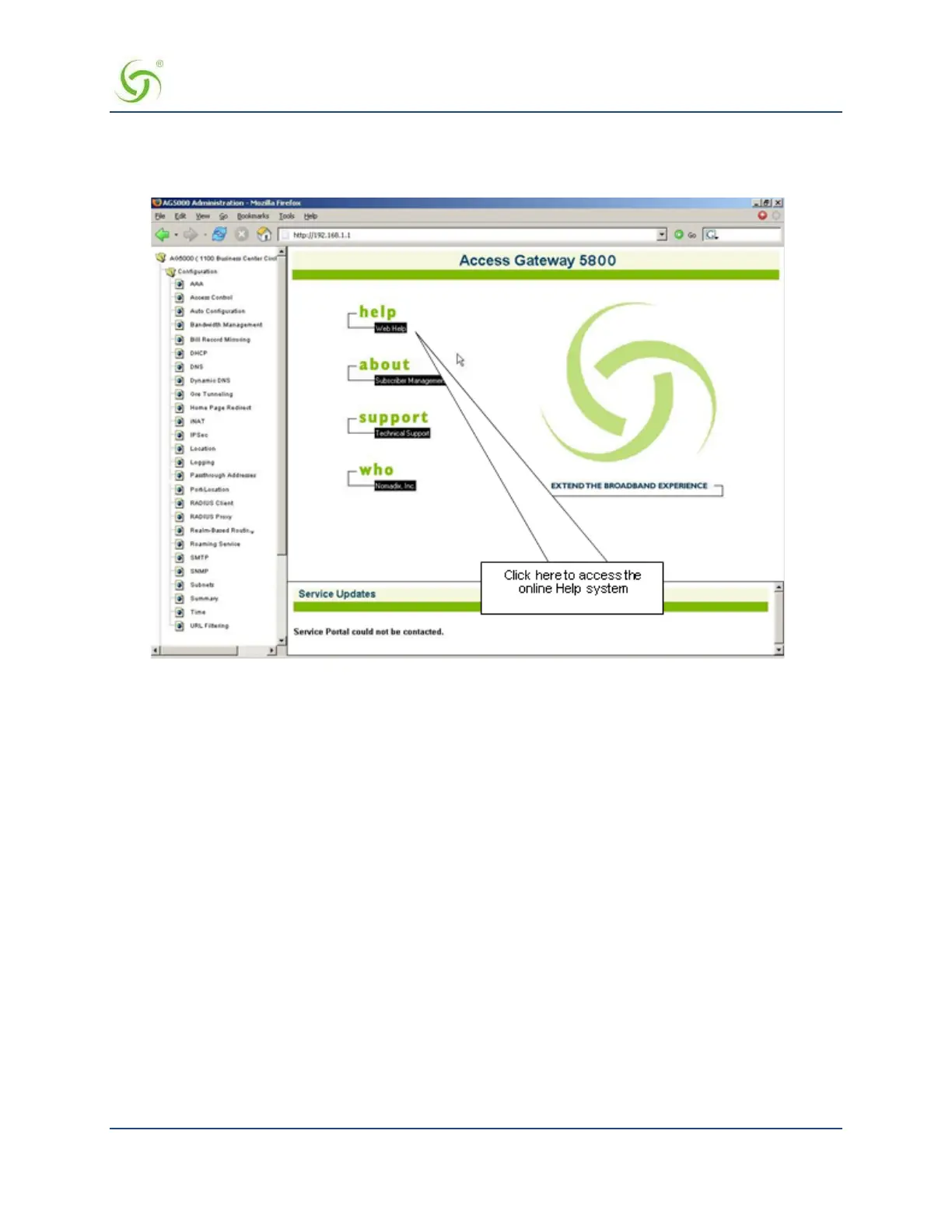

The Web Management Interface (WMI) incorporates an online help system that is accessible from the main

window.

Other online documentation resources, available from our corporate Web site (www.nomadix.com/support),

include a full PDF version of this User Guide (viewable with Acrobat™ Reader), How-To Guides, README

files, white papers, technical notes, and business cases.
