Control Panel P/N 207023 and P/N 207850 (First Generation)
B-4
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Repair
Control Panel
876
9
543
2
1

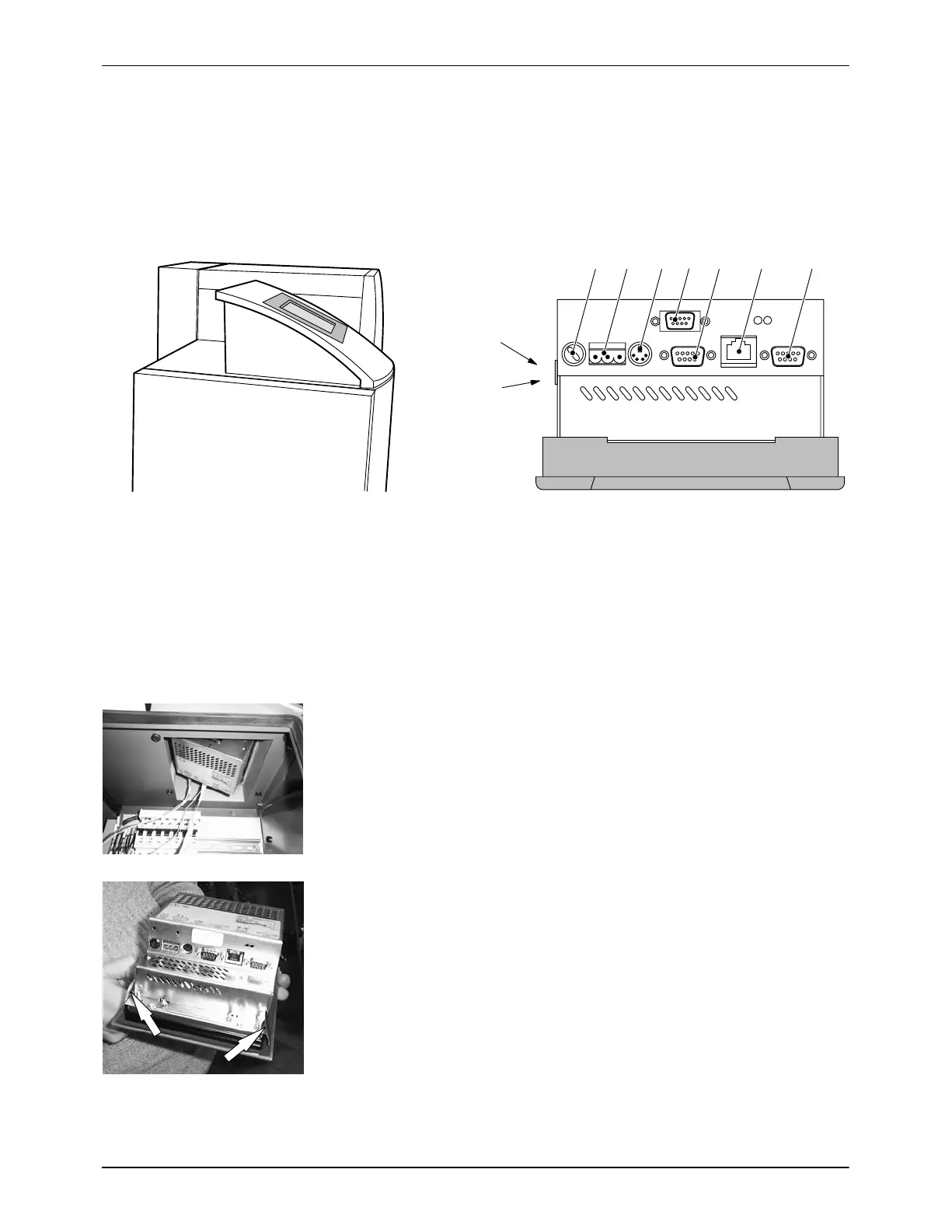

Fig. B-2
1 Battery
2 Memory board
3 Fuse
4 24 V
DC
power supply
5 Not in use
6 CAN plug, 9-pin, sub-D, male
7 RJ45 EtherNet
8 RS232 COM1 (for options
ControlNet and EtherNet/IP)
9 PROFIBUS-DP (option)
Detaching Control Panel
1. Lift one side of the control panel and press in a spring clip (arrows) on
the other side. Then the control panel can be lifted high enough that the
connections are exposed.
2. Press control panel back into place.
Fig. B-3
