Motor / Gear Box (contd.)
Lubricant Selection
Lubricant manufacturer Lubricant (Mineral oil CLP 220)
AGIP Blasia 220
ARAL Degol BMB 220 or Degol BG 220
BP Energol GR-XP 220
DEA Falcon CLP 220
ESSO Spartan EP 220 or GP 220
KLÜBER Klüberoil GEM 1-220
OPTIMOL Optigear 220
SHELL Omala Oil 220
TEXACO Geartex EP-A SAE 85 W-90
Pressure Control Valve
WARNING: Hot! Risk of burns. Wear appropriate protective
clothing/equipment.
WARNING: System and material pressurized. Relieve system pressure.
Failure to observe can result in serious burns. Refer to section Installation,
Relieving Pressure.
Important for Mechanical Pressure Control Valve
NOTE: Screw in/out only when valve is warm and material is soft
(approx. 70 °C / 158 °F, depending on material).
Measuring Insertion Depth
Measure and make a note of the insertion depth of the setting screw
(dimension X). This way the insertion depth can be replicated after
reassembly.

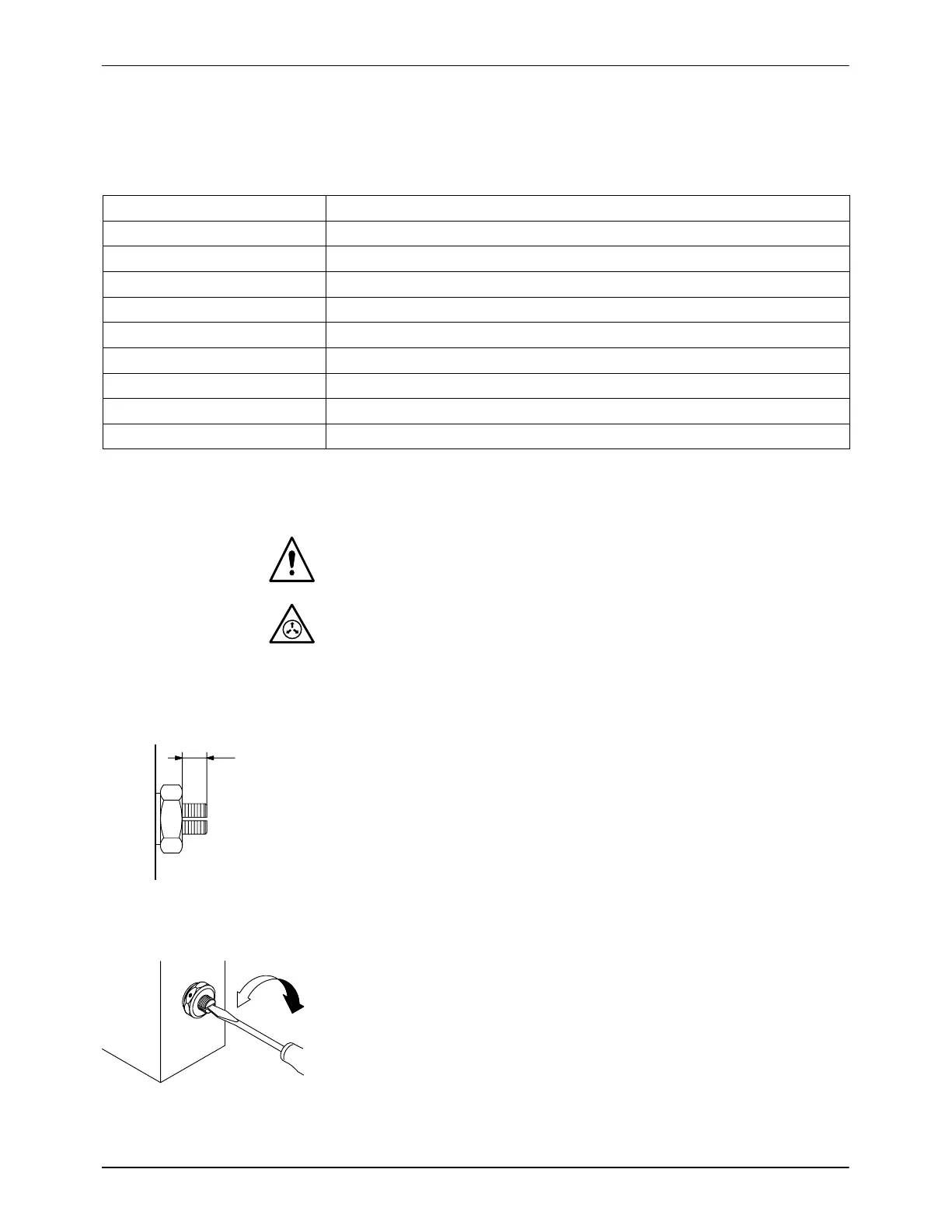

Fig. 5-9
Adjusting Setting Screw
Adjust the setting screw to the recorded dimension X.
Turning clockwise increases material pressure.
Turning counterclockwise decreases material pressure.
Fig. 5-10
