Checking Transmitted Field Bus Data

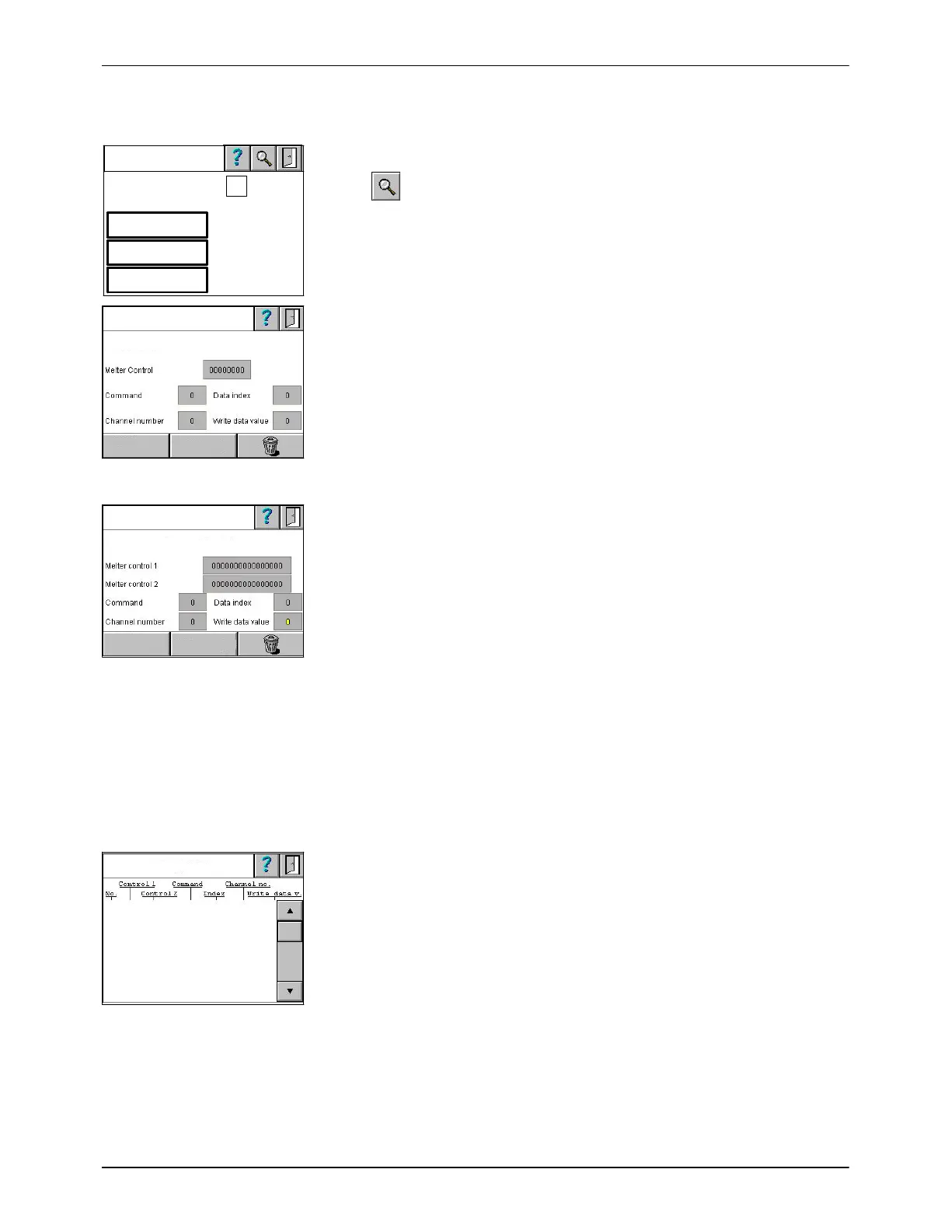

Introductory screen (example) Profibus setup
Touch
to access the information on the field bus data protocol.
The field bus data shown is a factor of the field bus data protocol used,
which was selected under Melter configuration.
When Standard is used:
Melter control, binary value
Command, decimal value
Data index, decimal value
Channel number, decimal value
Write data value, decimal value.
When Extended is used:
Melter control 1, binary value
Melter control 2, binary value
Command, decimal value
Data index, decimal value
Channel number, decimal value
Write data value, decimal value.
This data forms a data set. Every change in the data set is recorded when
logging is activated (key Logging activated).
NOTE: In exceptional cases, logging may not be able to keep up with the
speed of the data changes. Logging ends automatically as soon as there
would be a gap in the log.
The most recently recorded changes in the data set can be displayed (key
Show log).
NOTE: Melter control, hexadecimal display in this case
No. = Data set counter, decimal value from 1 to 99
