Repair
7-17
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW
Installing New Band Heater
NOTE: Two people should work together for the next two steps.
1. Center the two pieces of the band heater on the hopper and hold them
in place.
2. Join the two pieces of the band heater using the screws, washers and
nuts (Refer to Fig. 7-27).

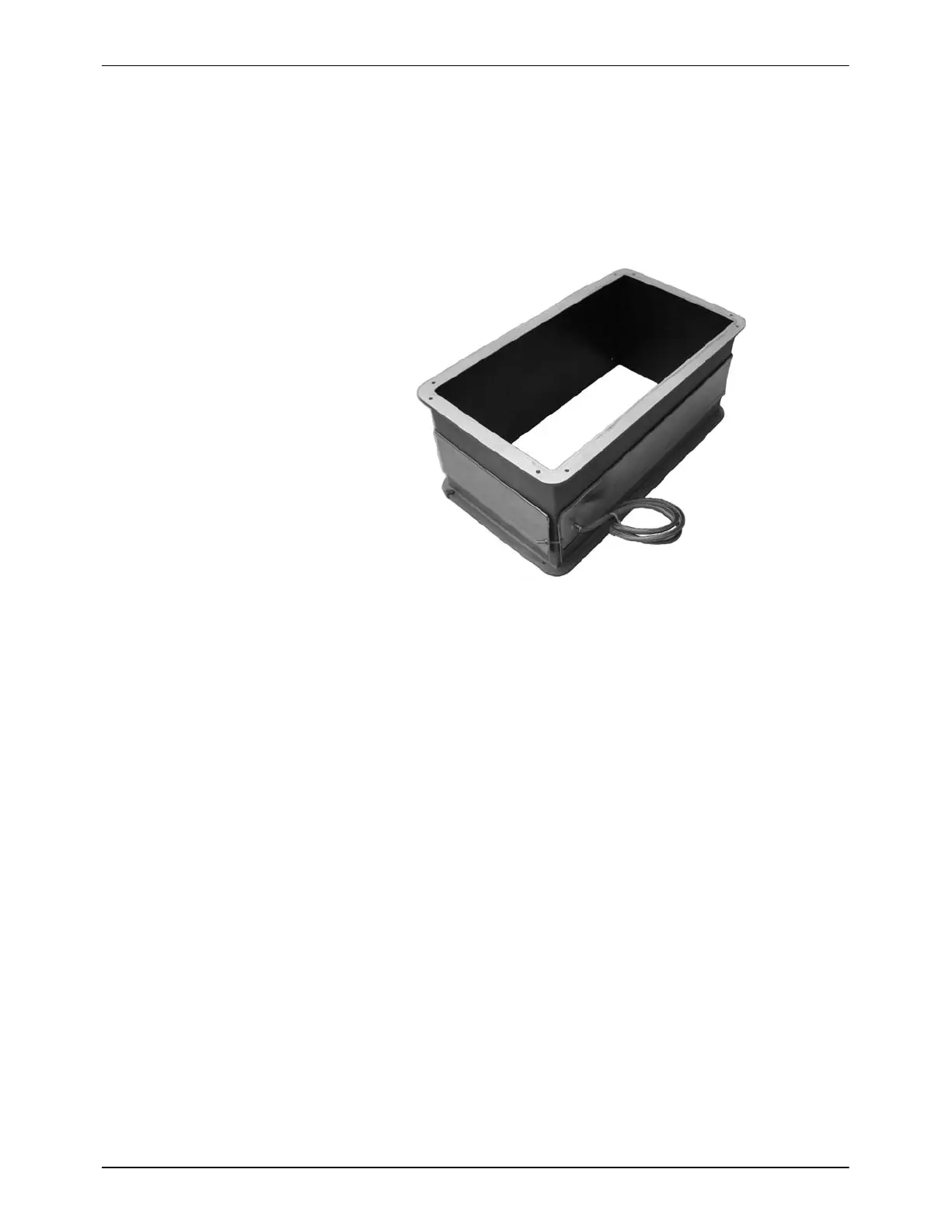

Fig. 7-27
3. Thread the electrical lines from the two pieces of the band heater
through the wall of and into the electrical cabinet.
4. Cut the electrical lines to the proper length, squeeze on wire end
ferrules and label the incoming cables.
5. Electrically connect the two pieces of the band heater.
Refer to the wiring diagram that goes with the retrofitting kit.
6. Close the electrical cabinet.
7. Put the insulation blanket and protective panels back into place.
8. Start up system again.
