Temperature Parameters (contd.)
Monitoring of Heatup and Cooling

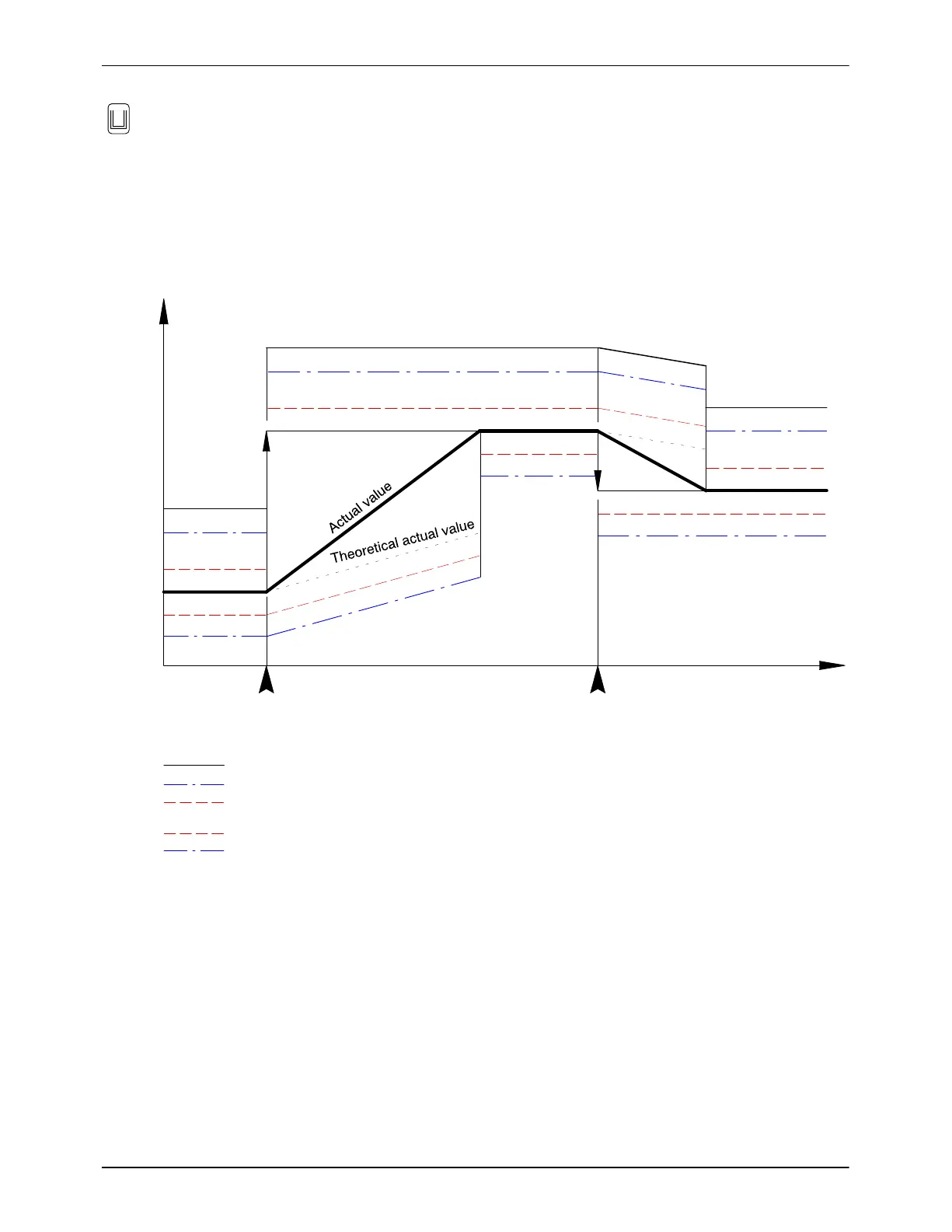

The temperature alarm values are not a factor of the setpoint during the
heatup and cooling phases of the individual temperature channels. They are
based on a theoretical actual value.
Temperature
Time
Setpoint 2
Setpoint 3
Setpoint 1 =
actual value
Increase setpoint Decrease setpoint
1
2
3
4
5
3
4
5
1
2
1
2
1
2
3
4
5
1
2
3
4
5
Overtemperature shutdown
Overtemperature fault
Overtemperature warning
Undertemperature warning
Undertemperature fault
Fig. 4-23
