Nordson VersaBlue VB Series - Interface Level Control

1
2
3
4
5
6
7
8
9
10
12
11
13
*)
internal external
+24 V
DC
0 V
DC
Installation
3-18
P/N 7105144G
 2008 Nordson Corporation
VersaBlue_NW
Interface Level Control
NOTE: Available only with the options with filling valve.
Component designation: XS3

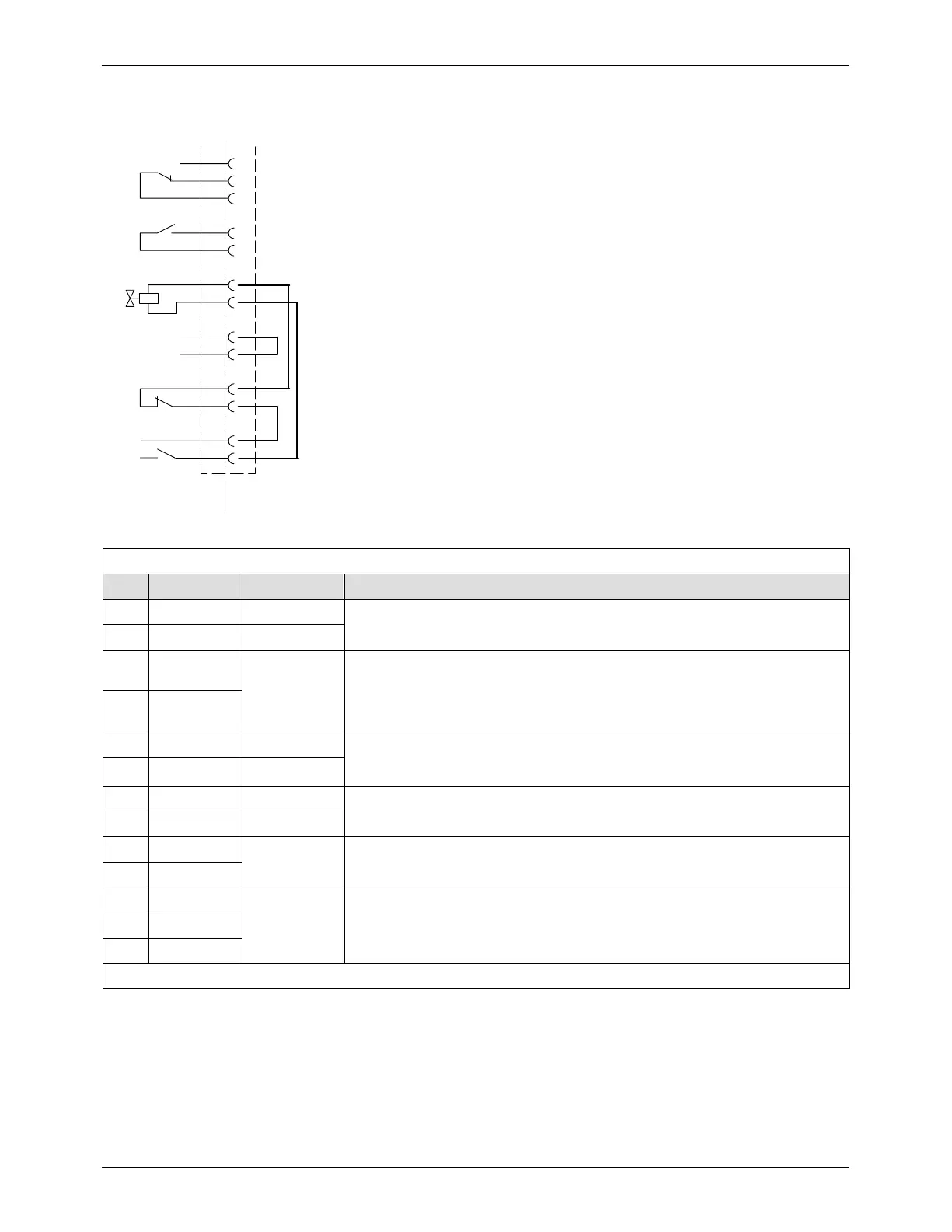

Fig. 3-20 Default bridges
Digital inputs/outputs
Pin Input Output Function
1 − 24 V
DC
Internal voltage supply of separate overflow protection
2 − 0 V
DC
3 − 24 V
DC
/2 A Fill tank signal to filling valve
− Additionally with level control with overflow protection −
*) Tank overfilled (contact open when level is exceeded)
4 −
5 − −
− Only with level control with overflow protection −
Reset (resets signal Tank is overfilled)
6 − −
7 +24 V
DC
− Voltage supply to filling valve
8 0 V
DC
−
9 − 24 V
DC
/ 2 A Fill tank
10 −
11 − 24 V
DC
/ 2 A − Only with level control with overflow protection −
Tank overfilled
NOTE: Potential-free changeover contact for evaluation by customer
12 −
13 −
Pin 14 to 16 not assigned
