Control Panel P/N 207023 and P/N 207850 (First Generation)
B-3
P/N 7105144G
2008 Nordson Corporation
VersaBlue_NW

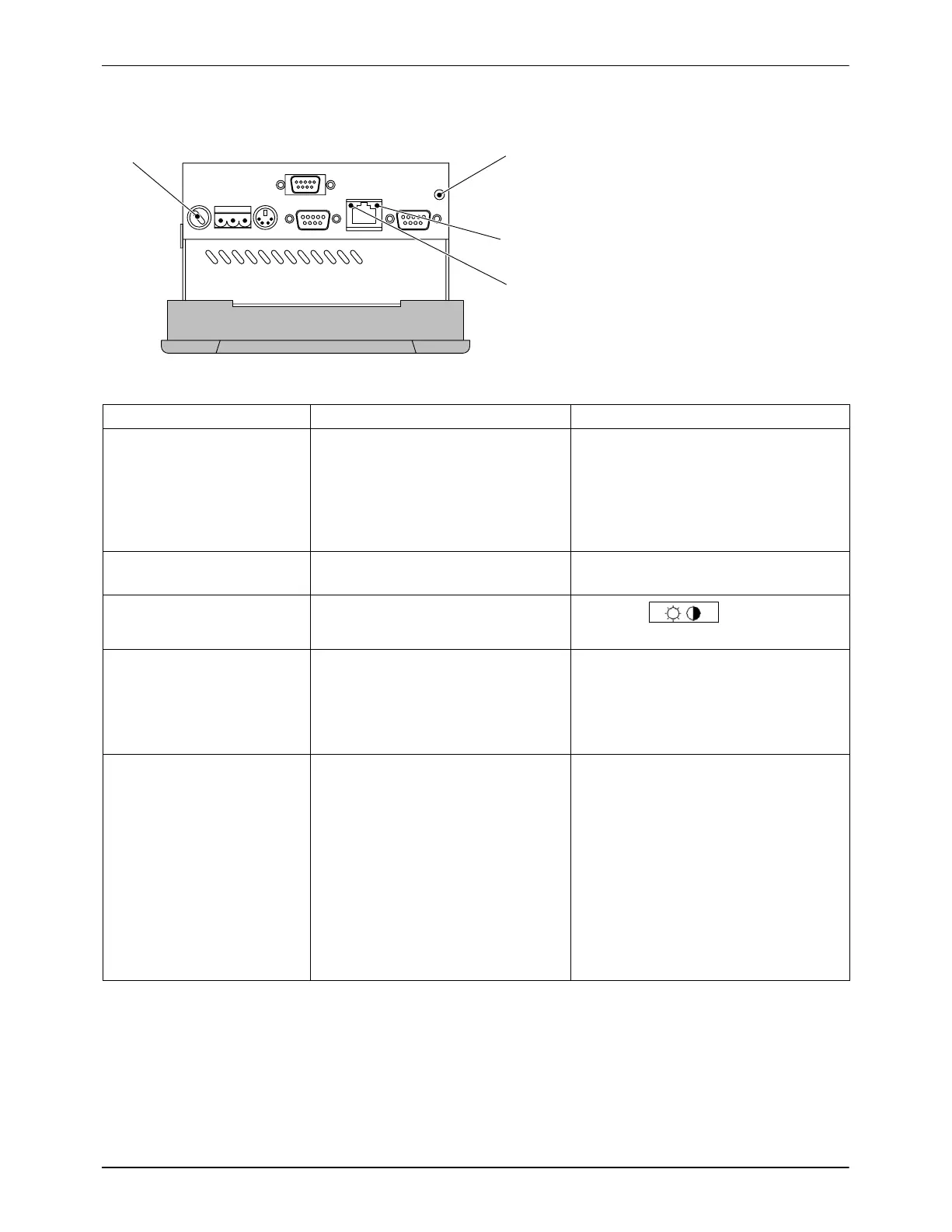

Control Panel does not Function
1
+5V LED
1)
LINK LED
2)
ACT LED
3)
Problem Possible Cause Corrective Action
1. Does not start.
Control panel dark or
fault indications upon
startup
Fuse (1) defective (+5V LED
1)
not
lit)
Check voltage supply
Memory board (CompactFlash) not
in place
Insert as described in section
Replacing Memory Board
2. Date/time incorrect Insert or replace battery and set date
and time
3. Control panel dark or
bright
Background lighting / contrast
misadjusted
Set with
4. Control panel does
not function
Hardware defective
Control panel dirty *) Clean as described in section
Maintenance / External Cleaning /
Control Panel
5. No EtherNet
connection
Wrong/invalid IPC IP address set Correct the IP address on the control
panel.
Refer to the section
Operation, Operation
via the IPC Webserver
Incorrect EtherNet cable plugged
in
The LINK LED
2)
is lit when
connected properly
The ACT LED
3)
is lit when data is
transferred properly (flashes during
transmission)
Missing/defective cables or
components
Check connecting cable between
IPC, EtherNet switch and
coprocessor. Connect as shown in
the system plan, if necessary.
*) The software checks the surface of the control panel during startup and
indicates dirt or defects with an X. Fingers or notepaper would also be
recognized as a ”fault,” stopping initialization until the fault is remedied.
