NCS Integrated Operation The History Manager
NCS Manual PN 51095:B1 3/08/02 53
Stored History Files
The History Manager, by default, displays the currently active history database. This is indicated
by the program in the title bar. The user can open older history databases under the File menu,
Open Archived History File command, refer to Figure 4.3. This operation will close the current
database and open the selected one. The History Manager will indicate that the current history file
is no longer displayed by showing the path and file name of the current history database in the title
bar. See Figure 4.4 for an example of an archived history database.

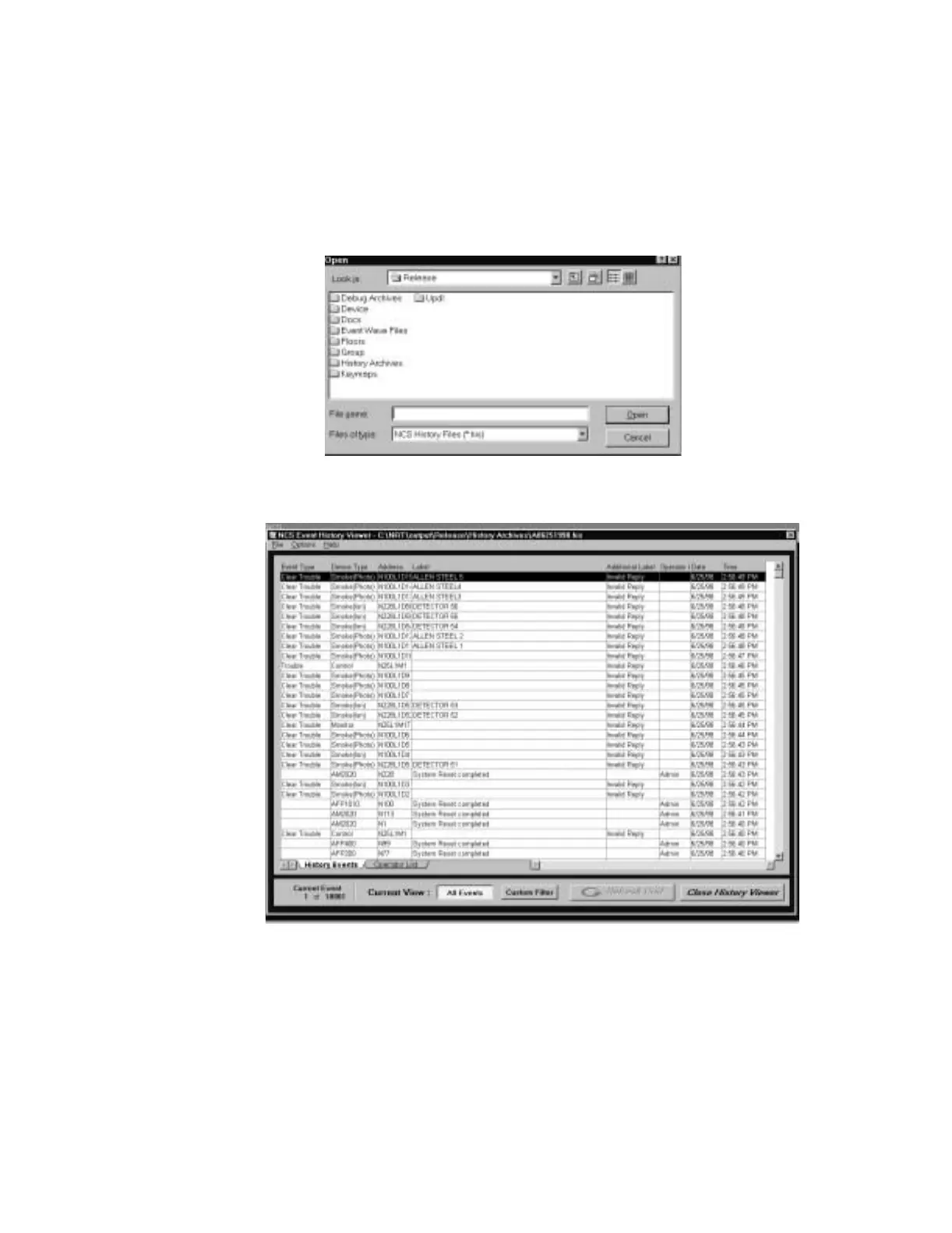

Figure 4.3 Opening a Archived History File
Figure 4.4 Example of an Archived History Database
The current history database can be re-opened by selecting the Current History File command
under the File menu. If the history manager is shut down and later re-opened, and an old history
database was previously selected, the dialog box will be shown indicating this. The dialog box will
then ask if the user wants to open the current history database, or continue with the one selected.
Operator List
The History Manager provides an Operator List via a control tab on the main screen. This tab,
when invoked, will display all operators who have logged on to the system and the last login time
and date. This list is part of the history database, and therefore will be cleared whenever a new
history database is opened. Refer to Figure 4.5.
archivhs.tif
archive.tif
