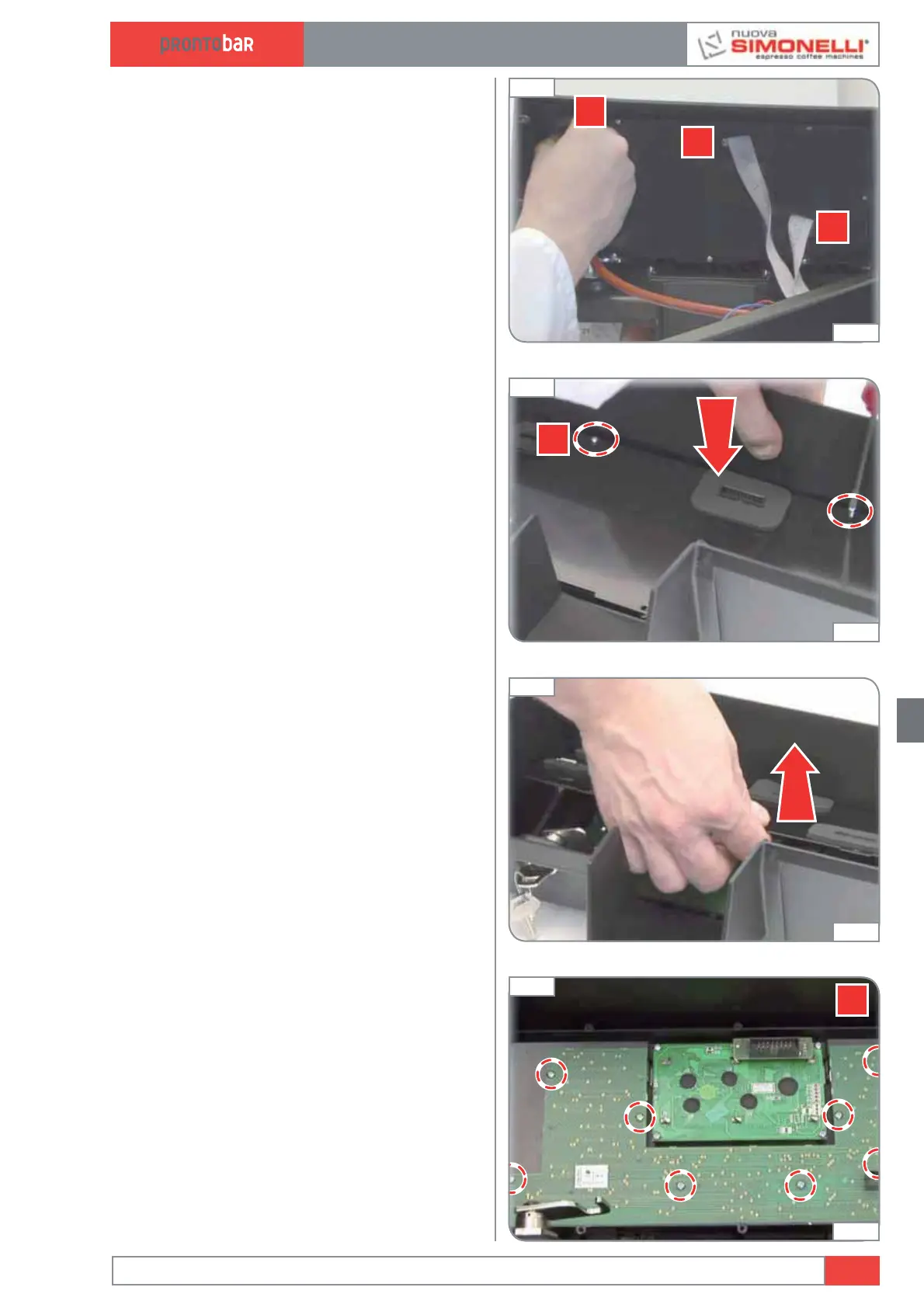

3 Disconnect the three connectors:
A Keyboard
B Display
C USB
4 Undo the six screws on the keypad display
cover.
5 The seventh screw is near the display con-
nector. Under the protection.
6 Remove the cover.
7 To remove the keyboard unscrew the 10
screws.
Edition 02 to 02/2014
11.3
SERVICE MANUAL
A
B
C
Fig. 252
00:24
4
5
Fig. 253
00:33
6
Fig. 254
00:41
7
Fig. 255
00:42
