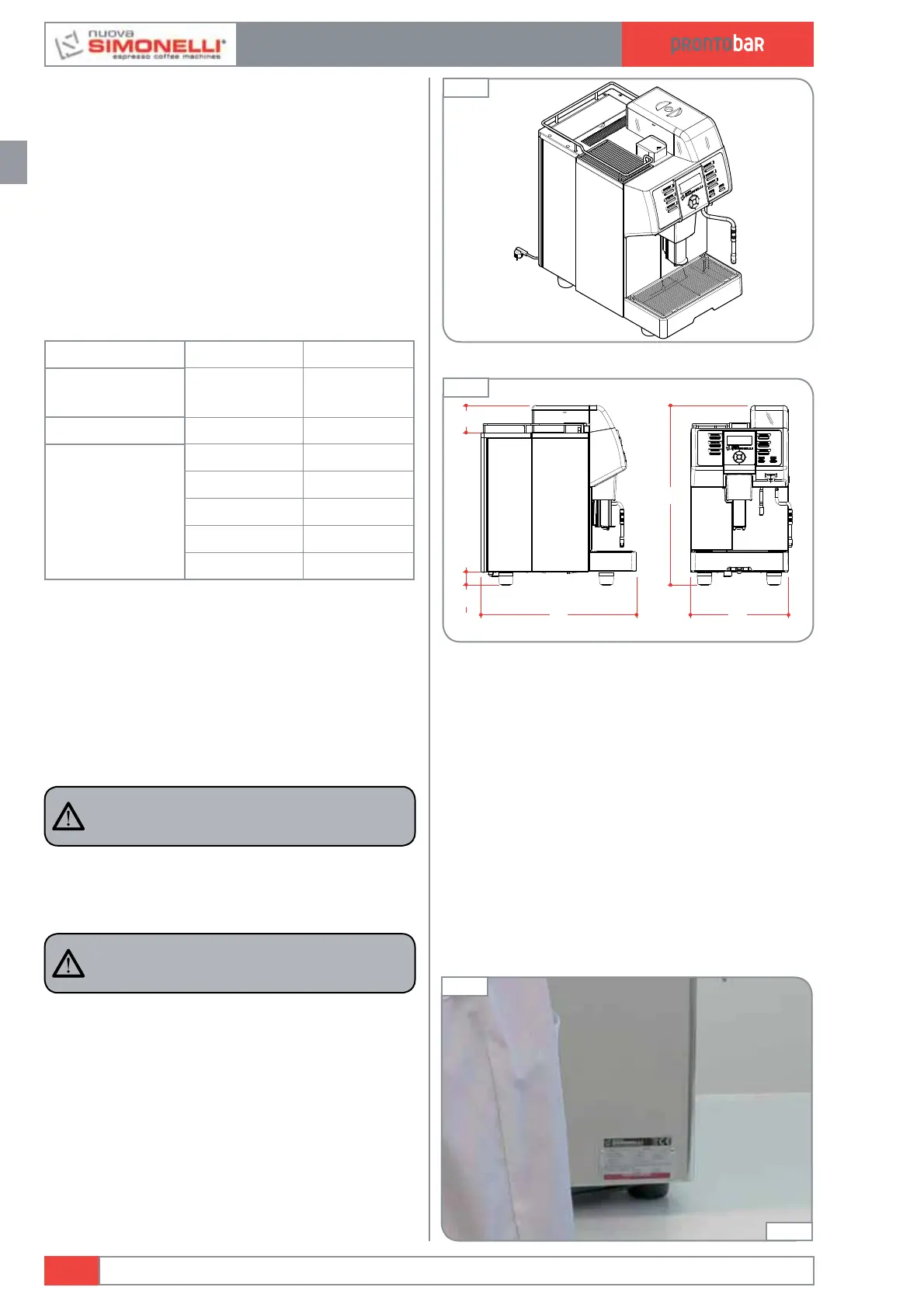

2.1 FIRST-TIME INSTALLATION
In this section the technical data of Prontobar are
listed and first installation is safety guided.
2.1.1 WEIGHT AND DIMENSIONS
Prontobar is 843.5 mm high, 400 mm wide and
607 mm deep. It’s net weight is 65 kilos.
NET WEIGHT
37 Kg 81.4 lb
GROS
WEIGHT
43 Kg 94.6 lb
POWER
2400 W 2400 W
DIMENSIONS
A 330 mm A 13 inc
B 520 mm B 20.47 inc
C 600 mm C 23.62 inc
D 90 mm D 3.54 inc
E 42 mm E 1.65 inc
2.1.2 POWER
Prontobar is available with 220V
50 Hz - 60 Hz mono-phase.
WARNING
The machine is designed to operate at tem-
peratures ranging from +5°C to +40°C (41°F
- 104°C).
CAUTION
RISK OF SHORT CIRCUIT
Before connecting the machine to the mains
power supply, please check that the supply
voltage corresponds to the machine voltage.
All the technical characteristic are detailed on the
back of the machine.
Edition 02 to 02/2014
2.2
SERVICE MANUAL
Fig. 16
00:05
B A
D
C
E
Fig. 15
Fig. 14
