Nuova Simonelli PRONTOBAR - Display and Keyboard

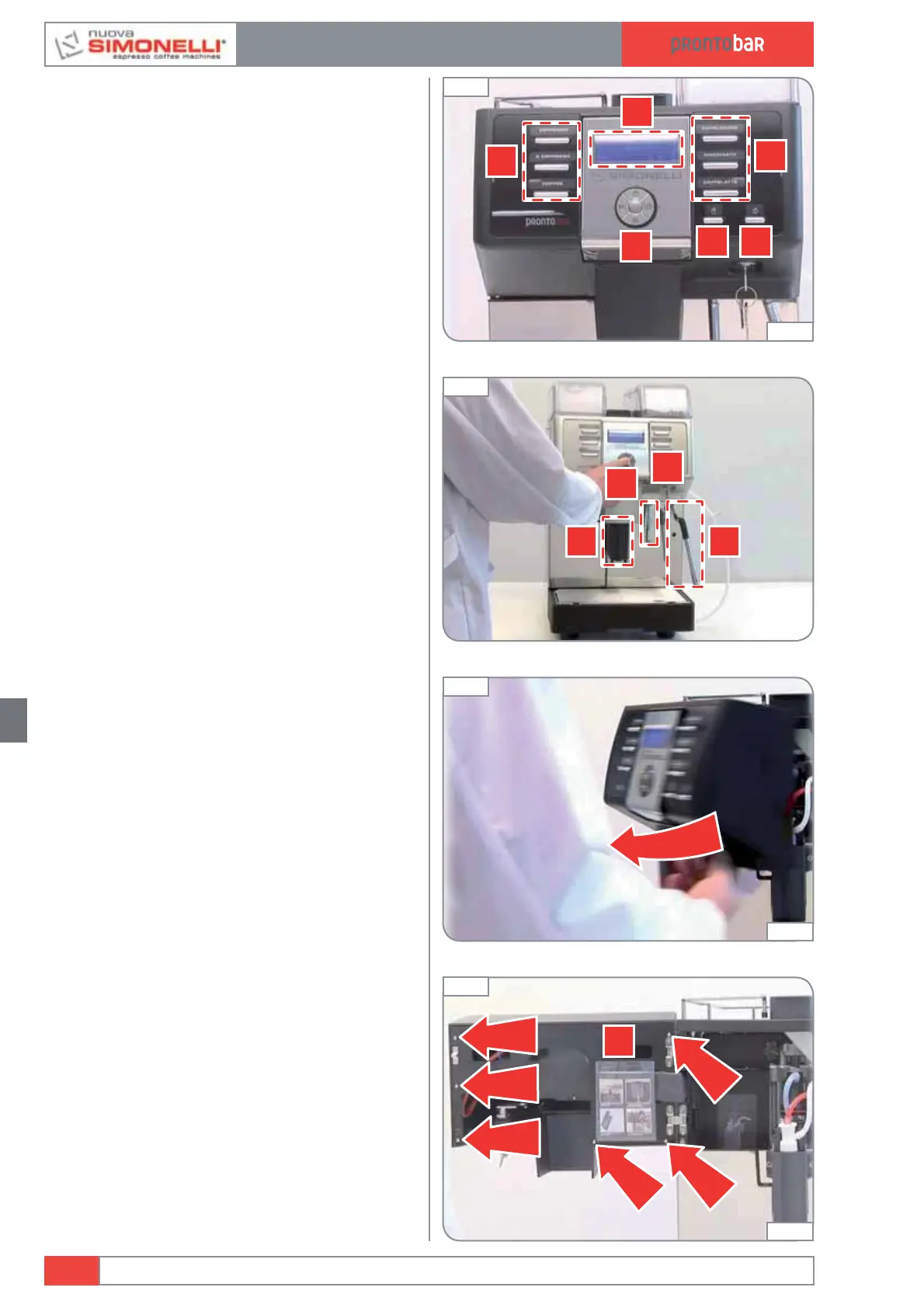

11.1 DISPLAY AND KEYBOARD
The front of the machine are located:
A Display
B Keyboard with six drinks keys
C Hot water key
D Steam key
E 4 multifunction keys
F Coffee nozzle
G Lock key
H Hot water wand
F Steam wand
1 To access the display and key board, open
the door.
2 Undo the six screws.
Edition 02 to 02/2014
11.2
SERVICE MANUAL
B
A
B
DC
E
Fig. 248
00:06
G
F I
H
Fig. 249
1
Fig. 250
00:18
2
Fig. 251
00:21
